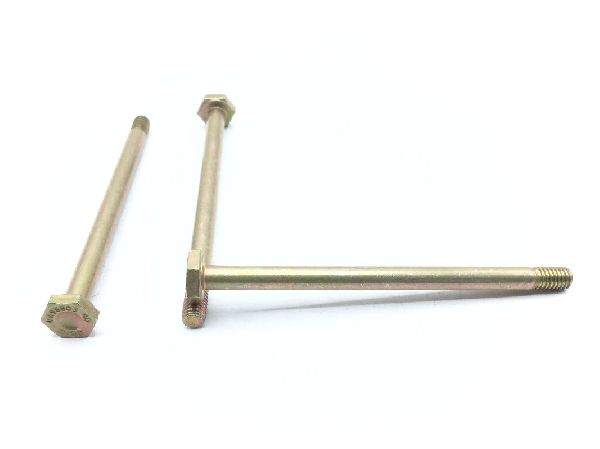

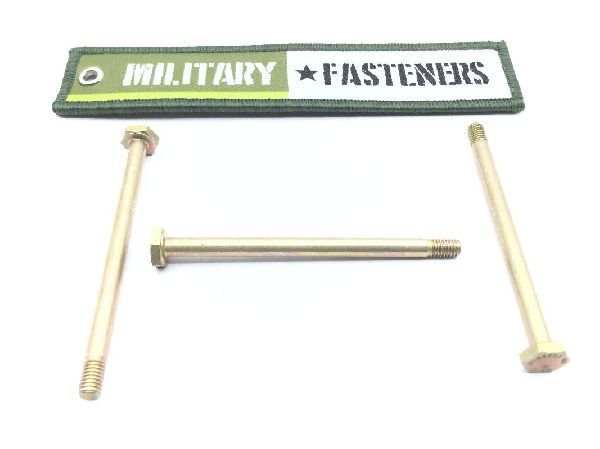

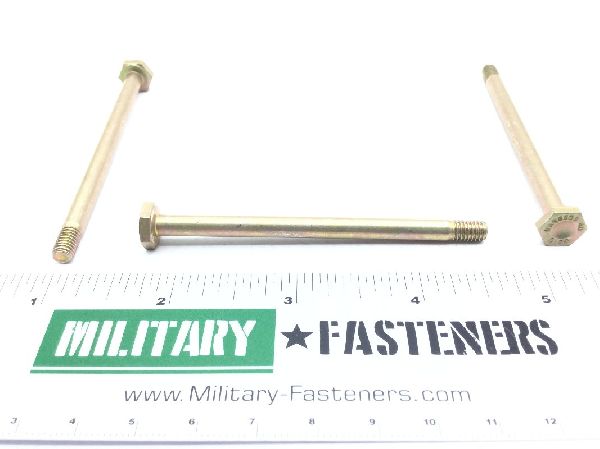

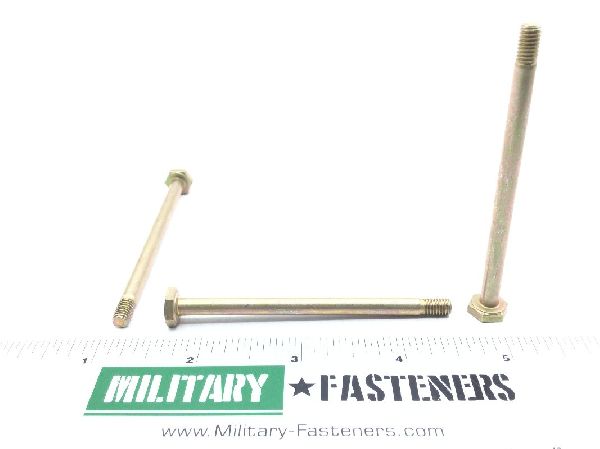

NAS6603-40 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $1.99

Units per Pack 25

Price per Pack $49.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $49.75

Add item to quote

Head Style

Dished hexagon

Material

Steel comp

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Fastener Length: Between 2.830 inches and 2.860 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 2.490 inches and 2.510 inches
Hardness Rating: 36.0 rockwell c nd 40.0 rockwell c
Head Height: Between 0.110 inches and 0.125 inches
Hole Configuration Style: Hexagon corners
Hole Quantity: 3
Hole Type: Drilled
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or as-6322 assn standard 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6603 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.345 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.367 inches and 0.376 inches
Hole Diameter: Between 0.046 inches and 0.056 inches
