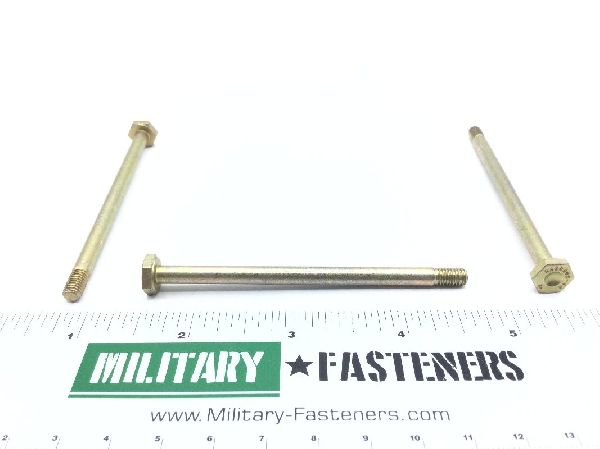

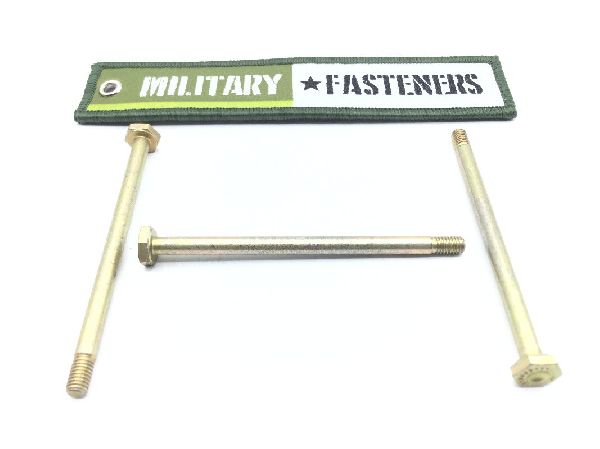

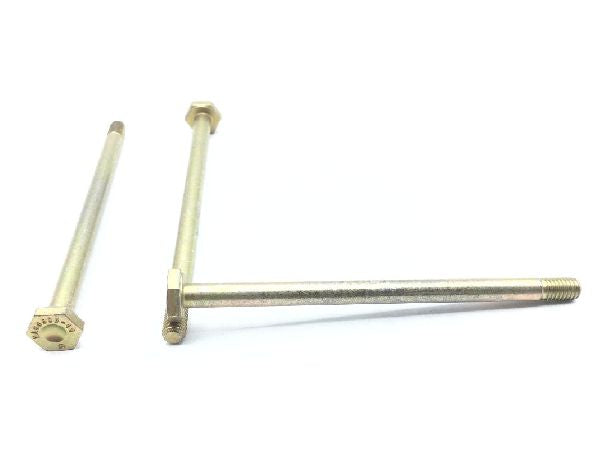

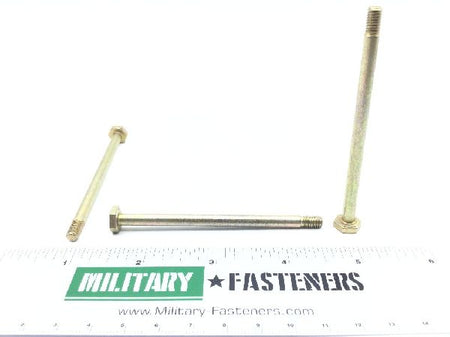

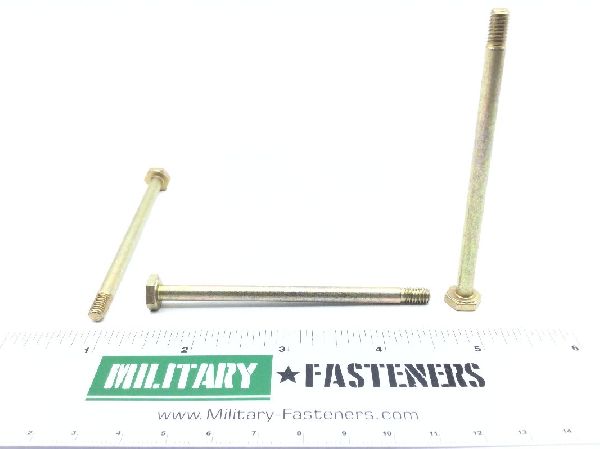

NAS6603-44 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $5.20

Units per Pack 10

Price per Pack $52.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $52.00

Add item to quote

Head Style

Dished hexagon

Material

Steel comp e4340 or steel comp 4340 or steel comp 8740

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Fastener Length: Between 3.080 inches and 3.110 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 2.740 inches and 2.760 inches
Head Height: Between 0.110 inches and 0.125 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.320 inches and 0.370 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.367 inches and 0.376 inches
