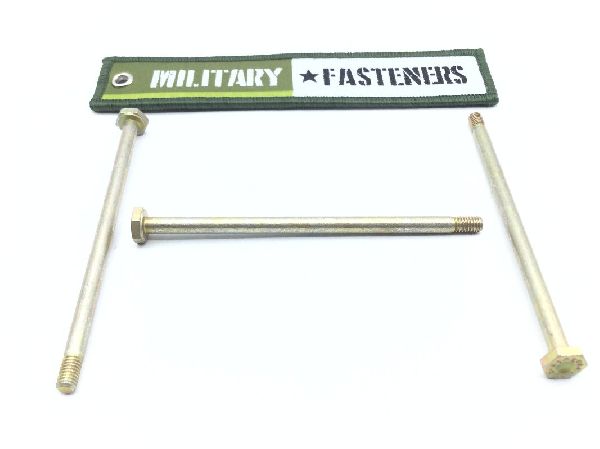

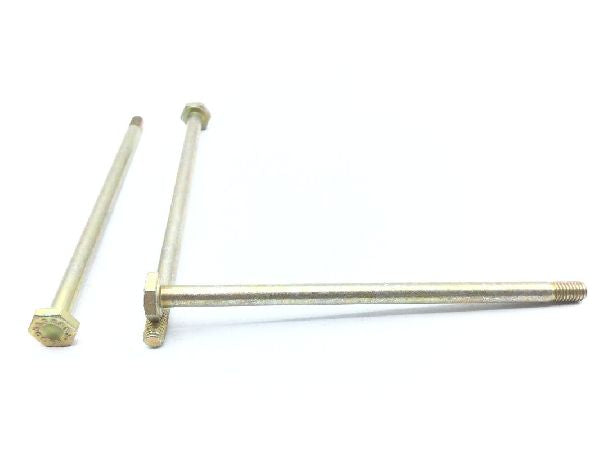

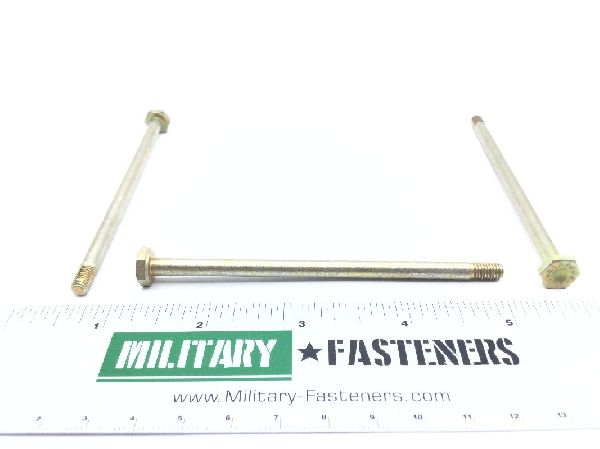

NAS6603-54 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $5.25

Units per Pack 10

Price per Pack $52.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $52.50

Add item to quote

Head Style

Hexagon extended washer

Material

Steel comp

Surface Treatment

Class 2 federal specification single treatment response ty2 qq-p-416

Thread Class

Extended Washer Diameter: 0.335 inches
Extended Washer Thickness: 0.020 inches
Fastener Length: 3.720 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: 3.375 inches
Head Height: 0.110 inches
Material Specification: Mil-s-5000 military specification single material response or mil-s-6049 military specification single material response or ams6322 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.345 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.367 inches and 0.376 inches
