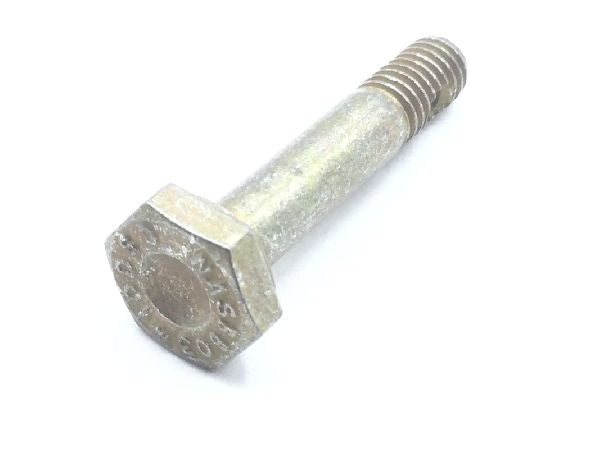

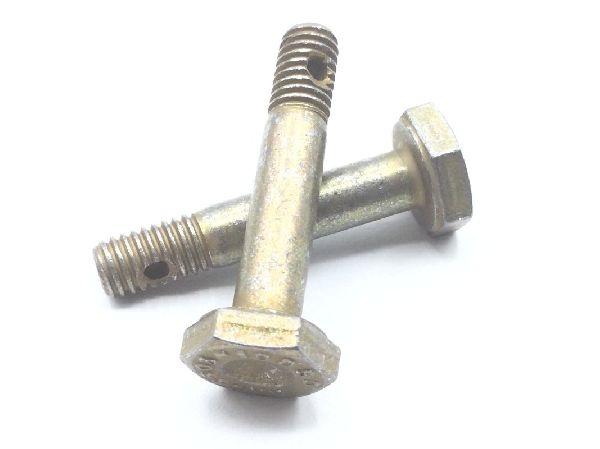

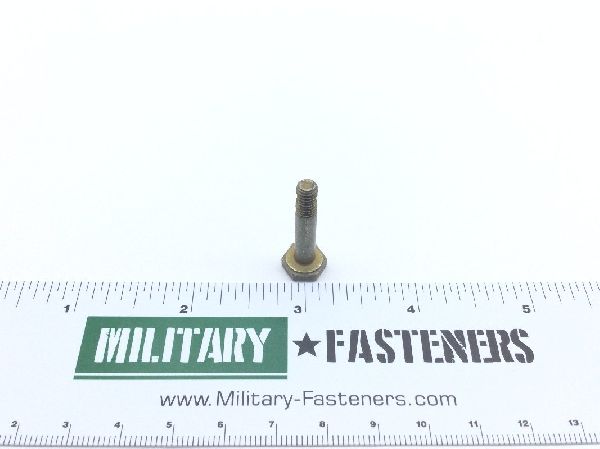

NAS6603D10 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.1000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Dished hexagon

Material

Steel comp e4340 or steel comp 8740

Surface Treatment

Type 2 class 2 federal specification single treatment response qq-p-416

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 0.801 inches first hole and 0.821 inches first hole
Fastener Length: Between 0.955 inches and 0.985 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 0.615 inches and 0.635 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.110 inches and 0.125 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams 6322 assn standard 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.070 inches first hole and 0.080 inches first hole
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.320 inches and 0.370 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.367 inches and 0.376 inches
