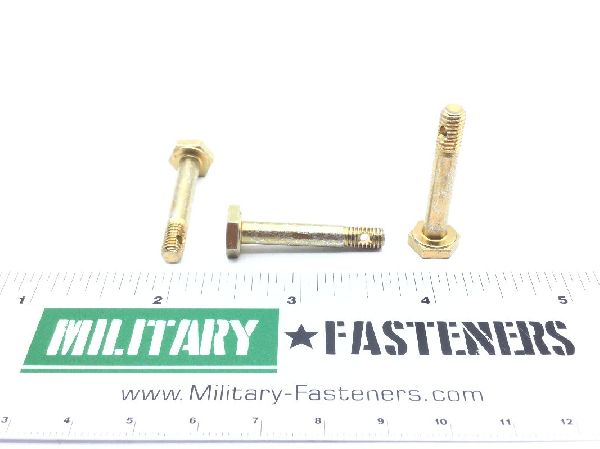

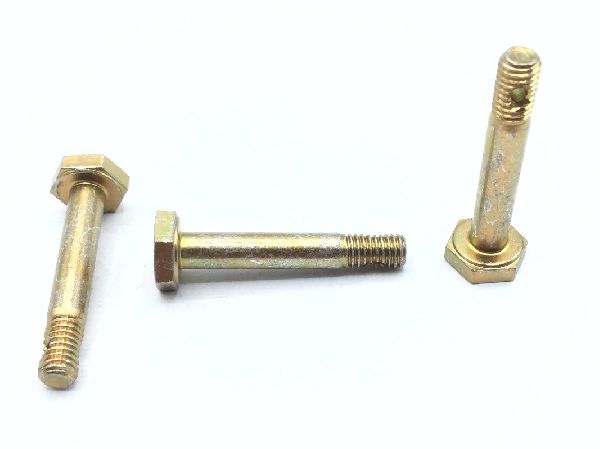

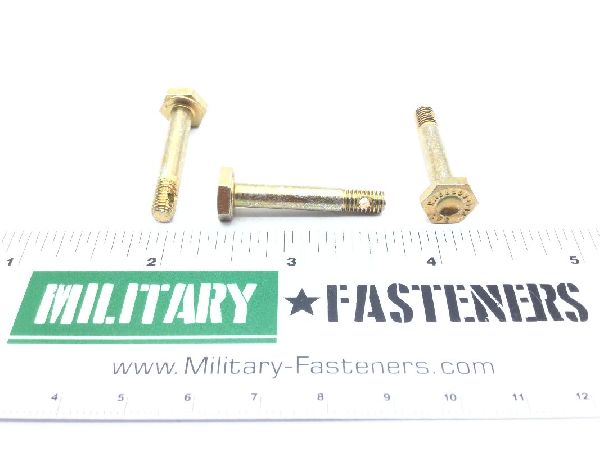

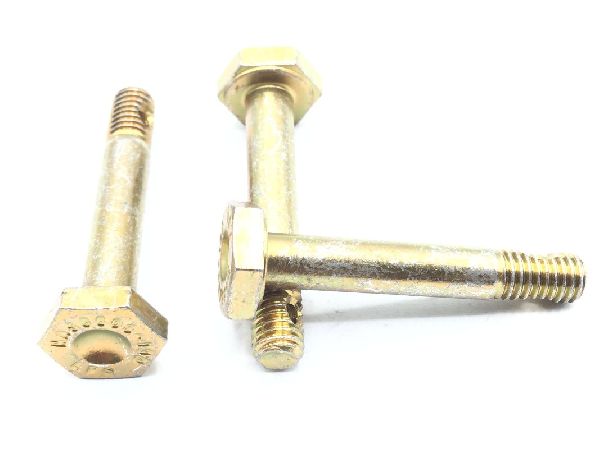

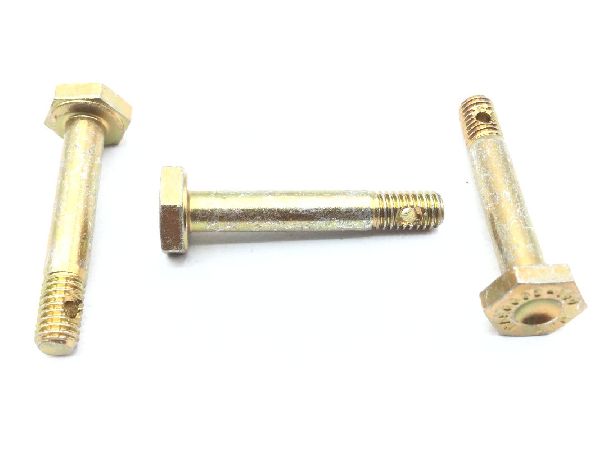

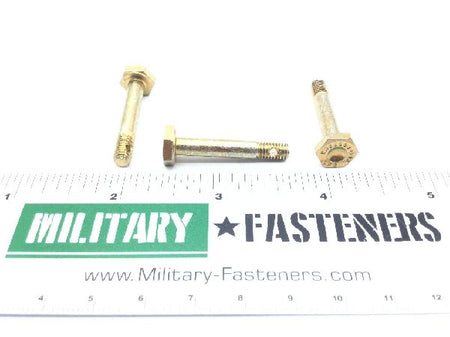

NAS6603D13 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.1000

Price per Unit $2.89

Units per Pack 20

Price per Pack $57.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $57.80

Add item to quote

Head Style

Dished hexagon

Material

Steel comp

Surface Treatment

Qq-p-416 type 2 class 2 federal specification single treatment response

Thread Class

Distance From Head Largest Surface To Shank Hole Center: 0.918 inches first hole and 0.968 inches first hole
Fastener Length: Between 1.142 inches and 1.172 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 0.802 inches and 0.822 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.110 inches and 0.125 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams6322 assn standard 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.070 inches first hole and 0.08 inches first hole
Specification Data: 80205-nas6603 professional/industrial association standard
Surface Finish: 32.0 microinches surface of head
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.320 inches and 0.370 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.367 inches and 0.376 inches
