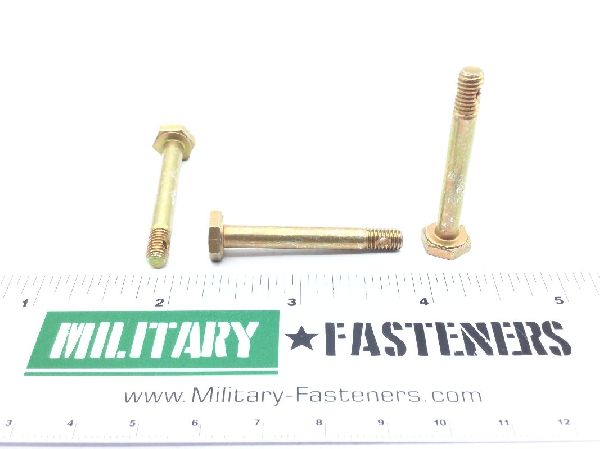

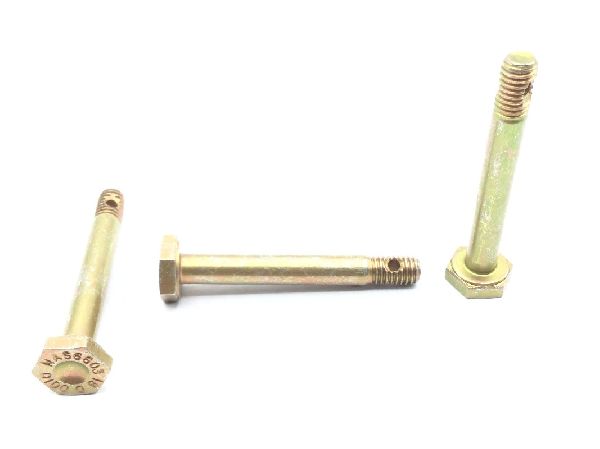

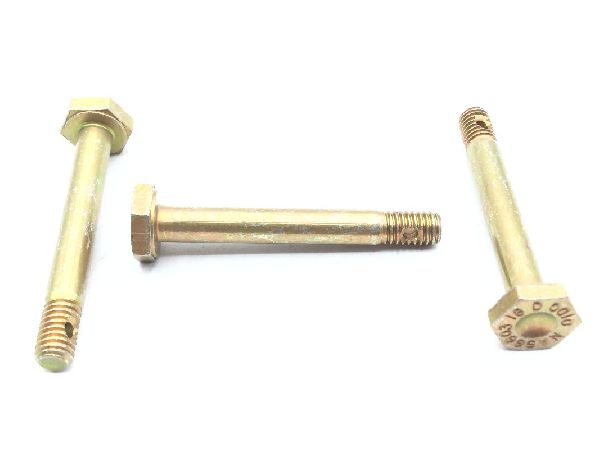

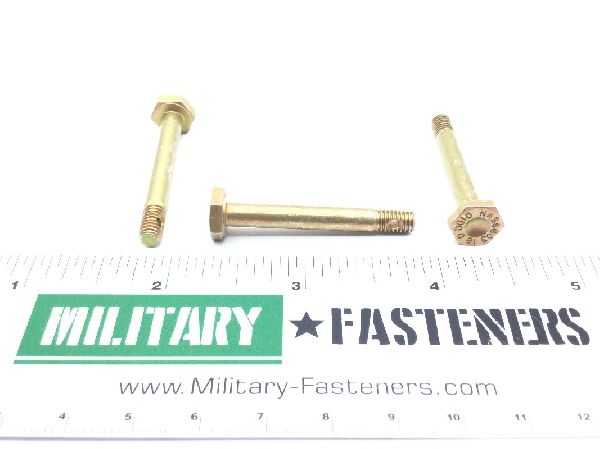

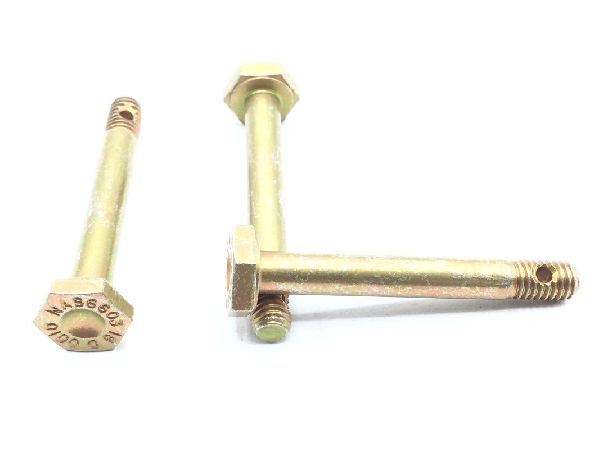

NAS6603D18 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $4.85

Units per Pack 10

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Head Style

Dished hexagon

Material

Steel comp

Surface Treatment

class 2 federal specification single treatment response qq-p-416 type 2

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 1.306 inches first hole
Fastener Length: Between 1.455 inches and 1.485 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 1.115 inches and 1.135 inches
Head Height: Between 0.110 inches and 0.125 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.070 inches first hole and 0.080 inches first hole
Specification Data: 80205-nas6603 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.330 inches and 0.360 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.367 inches and 0.376 inches
