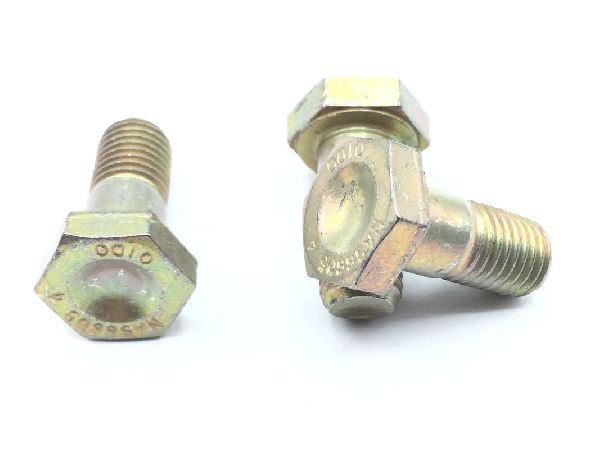

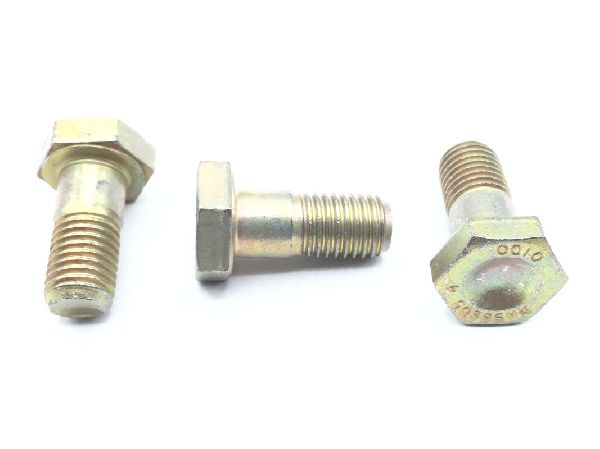

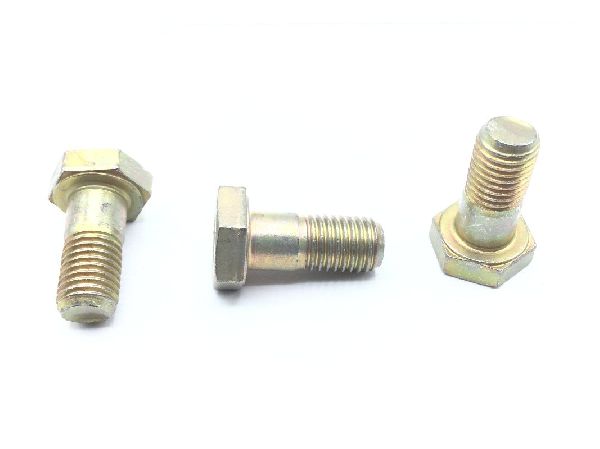

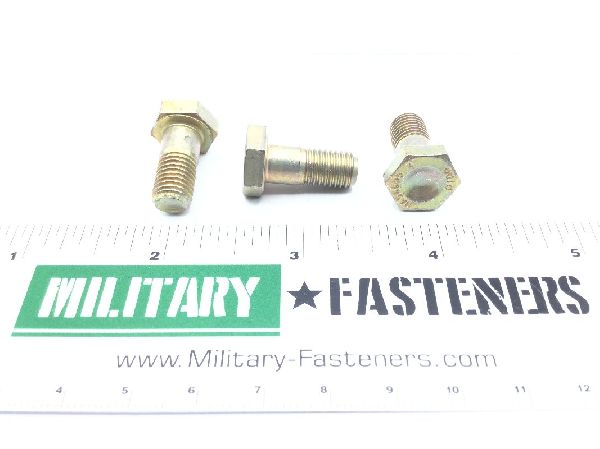

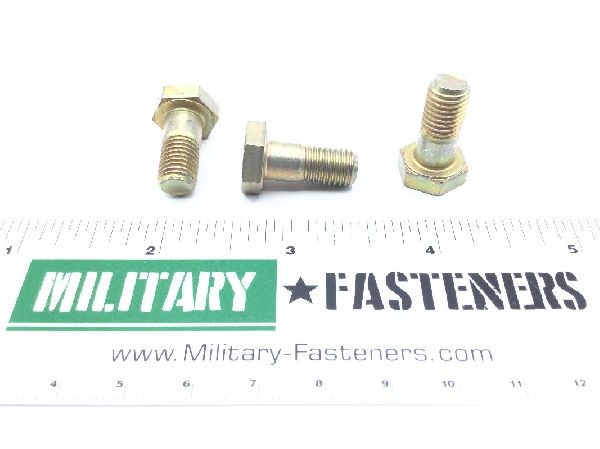

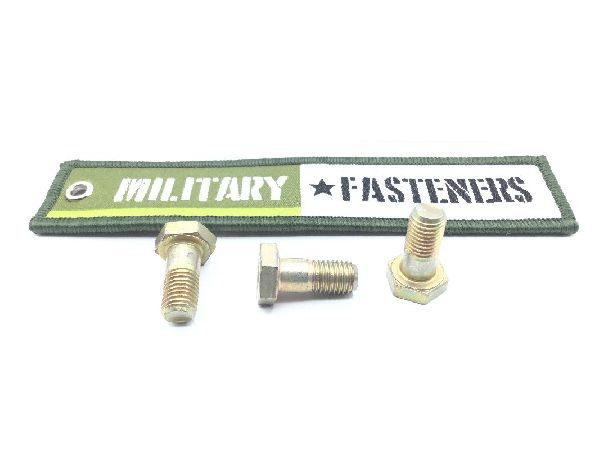

NAS6605-4 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $1.56

Units per Pack 25

Price per Pack $39.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $39.00

Add item to quote

Head Style

Dished hexagon

Material

Steel

Surface Treatment

Qq-p-416 ty2 cl2 federal specification single treatment response

Thread Class

Fastener Length: Between 0.704 inches and 0.734 inches
Grip Diameter: Between 0.3110 inches and 0.3120 inches
Grip Length: Between 0.240 inches and 0.260 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.188 inches and 0.203 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6605 professional/industrial association standard
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: 0.469 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.552 inches
