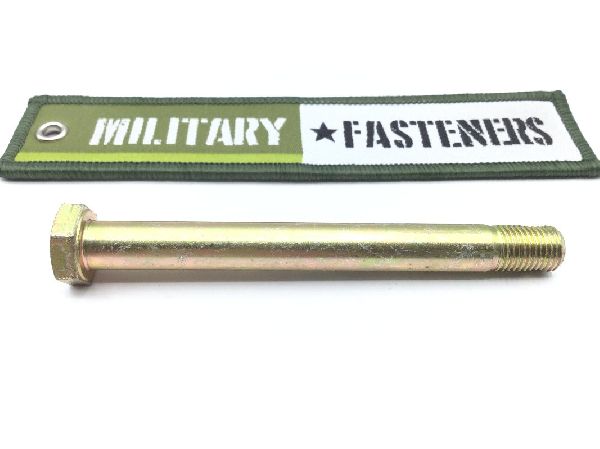

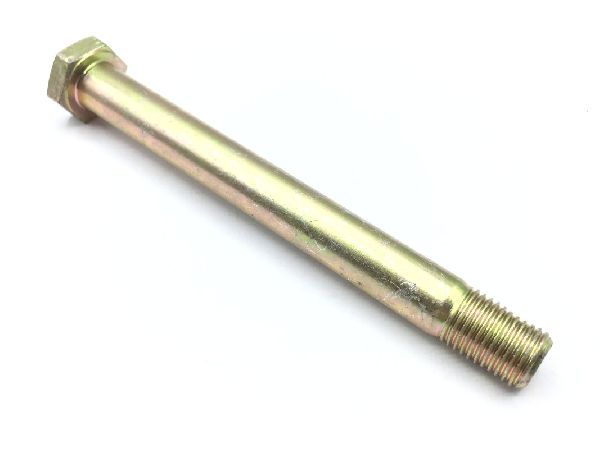

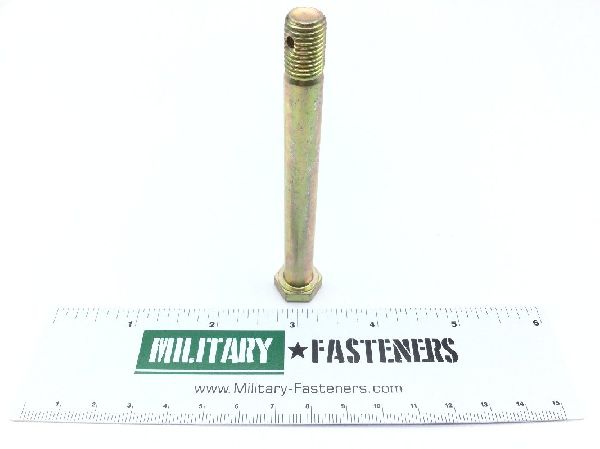

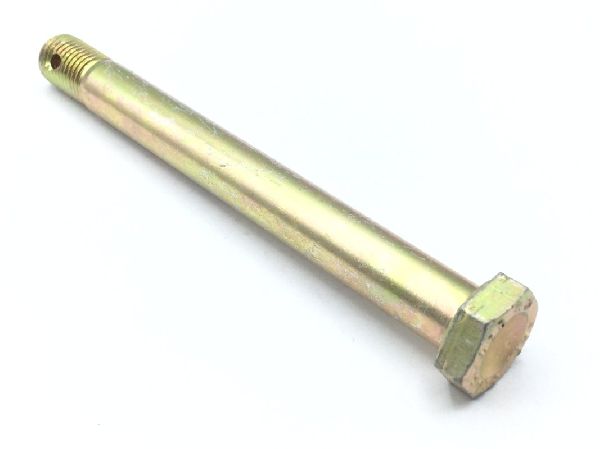

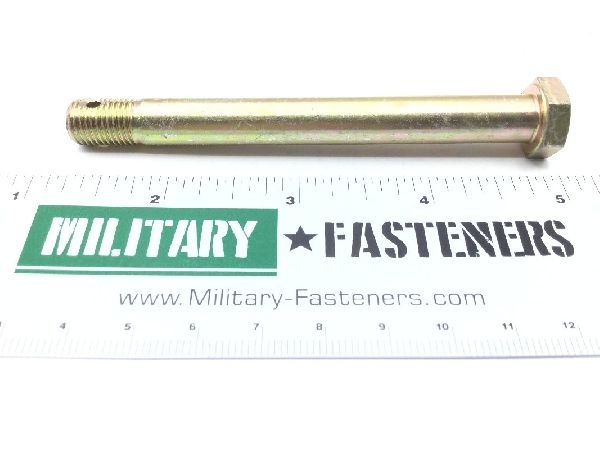

NAS6606D48 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.1000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Dished hexagon

Material

Steel comp 4340 or steel comp 8740

Surface Treatment

Class 3 federal specification single treatment response ty ii qq-p-416a

Thread Class

Fastener Length: Between 3.563 inches and 3.593 inches
Grip Diameter: Between 0.373 inches and 0.374 inches
Grip Length: Between 2.990 inches and 3.010 inches
Head Height: Between 0.188 inches and 0.203 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6606 professional/industrial association standard
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.578 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.553 inches and 0.564 inches
