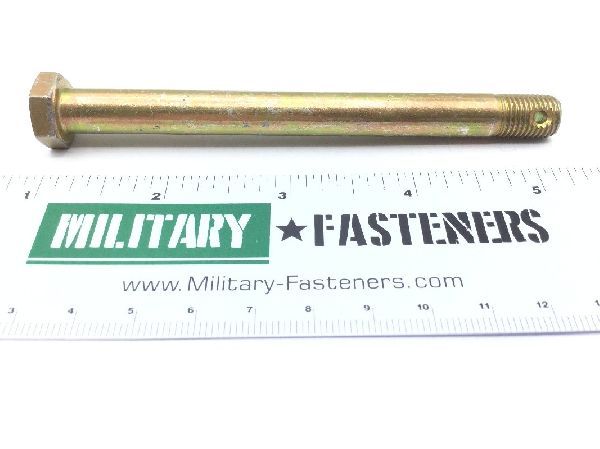

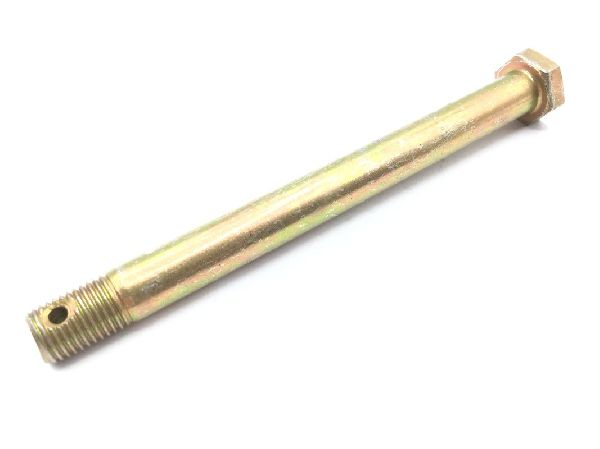

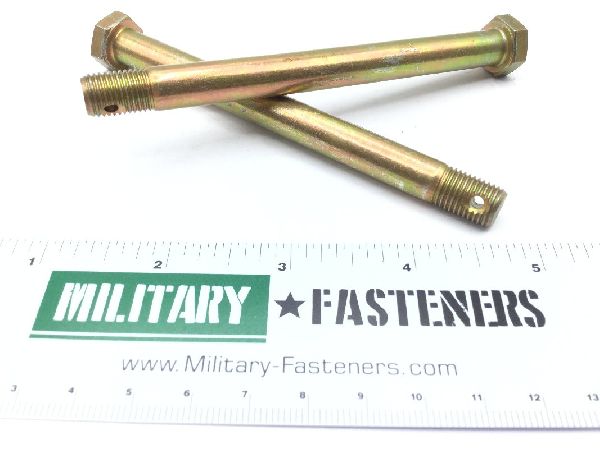

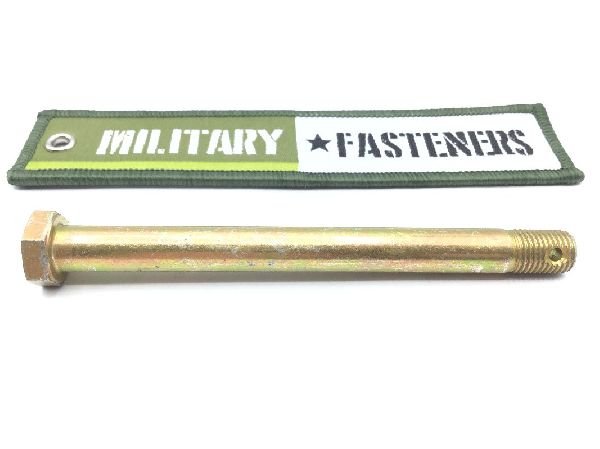

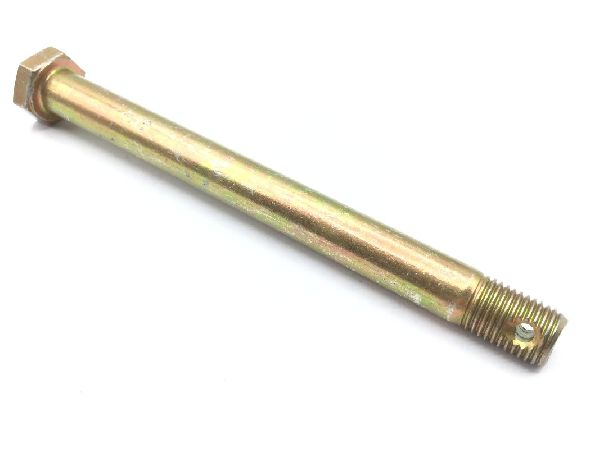

NAS6606D57 Shear Bolt
- Product Series
- NAS
- ECCN
- EAR99
- Schedule
- 7318.15.8085
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Distance From Head Largest Bearing Surface To Shank Hole Center
- 3.918 inches first hole and 3.968 inches first hole
- Fastener Length
- Between 4.125 inches and 4.155 inches
- Grip Diameter
- Between 0.3735 inches and 0.3745 inches
- Grip Length
- Between 3.552 inches and 3.572 inches
- Hardness Rating
- 36.0 rockwell c and 40.0 rockwell c
- Head Height
- Between 0.188 inches and 0.203 inches
- Material Specification
- Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams 6322 assn standard 2nd material response
- Min. Tensile Strength (psi)
- 160000 pounds per square inch
- Shank Unthreaded Hole Diameter
- 0.106 inches first hole and 0.116 inches first hole
- Specification Data
- 80205-nas6606 professional/industrial association standard
- Surface Finish
- 32.0 microinches threads
- Thread Diameter
- 0.375 inches
- Thread Direction
- Right-hand
- Thread Length
- Between 0.553 inches and 0.603 inches
- Thread Qty Per Inch (tpi)
- 24
- Thread Series Designator
- Unjf (fine thread with external controlled root radius)
- Width Between Flats
- Between 0.554 inches and 0.564 inches
