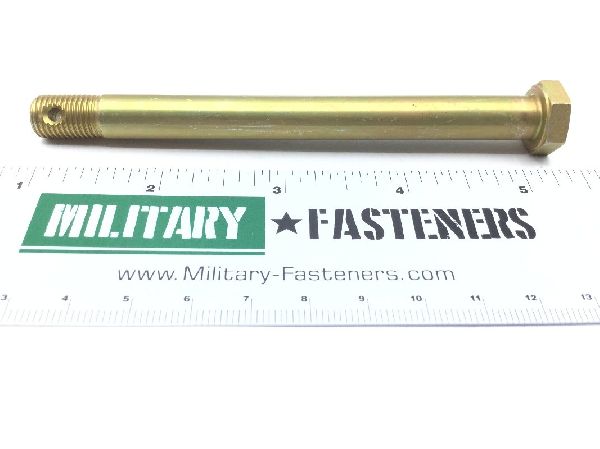

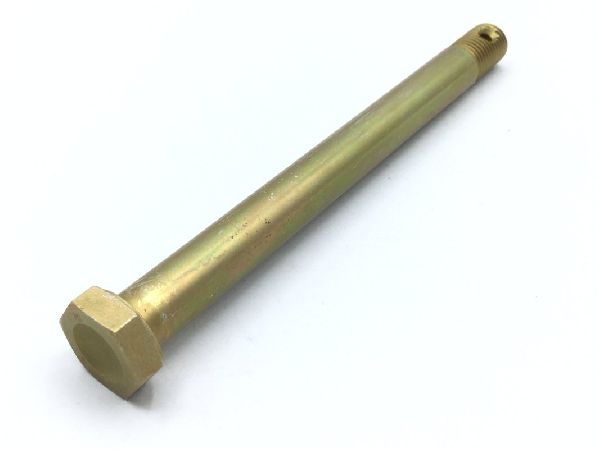

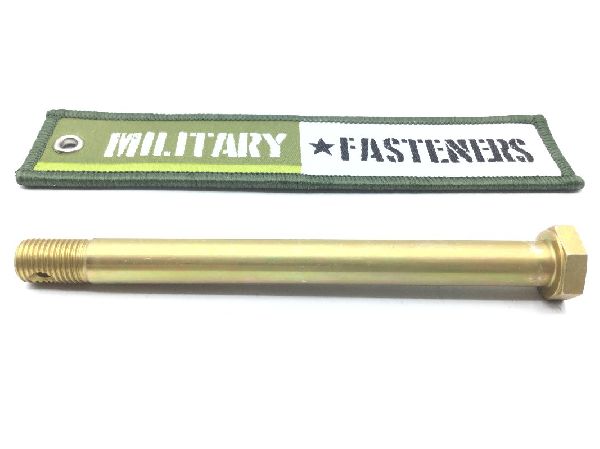

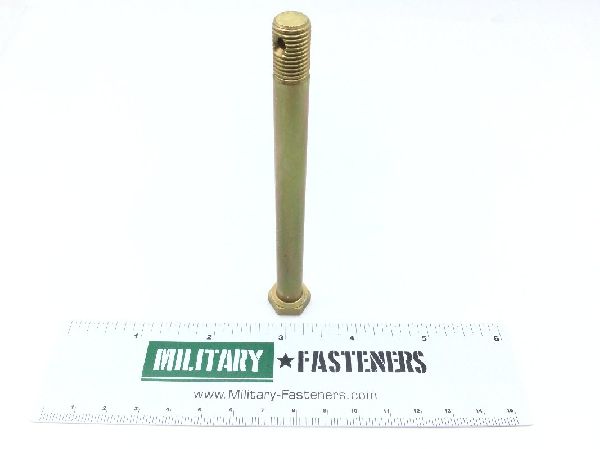

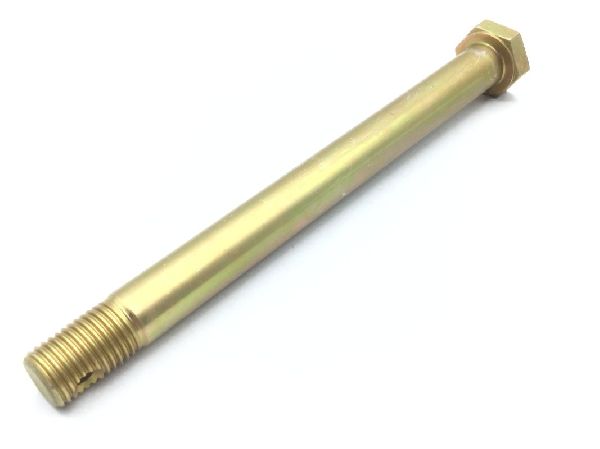

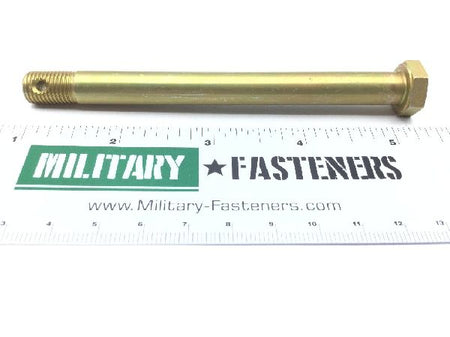

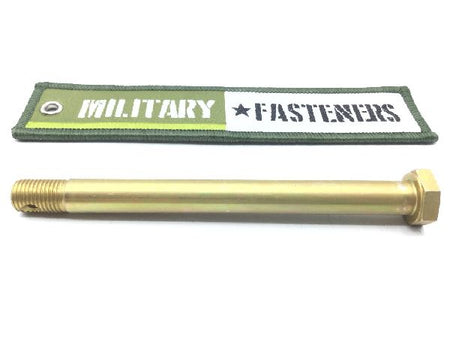

NAS6606D58 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $55.37

Units per Pack 1

Price per Pack $55.37

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $55.37

Add item to quote

Head Style

Hexagon

Material

Steel comp 4140 or steel comp 4340 or steel comp 8740

Surface Treatment

class 2 federal specification single treatment response type ii qq-p-416

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 4.006 inches
Fastener Length: 4.203 inches
Grip Diameter: Between 0.3735 inches and 0.3745 inches
Grip Length: 3.625 inches
Head Height: 0.188 inches
Hole Configuration Style: Round
Hole Quantity: 1
Hole Type: Drilled
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.106 inches
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.578 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.554 inches and 0.564 inches
Hole Diameter: 0.106 inches
