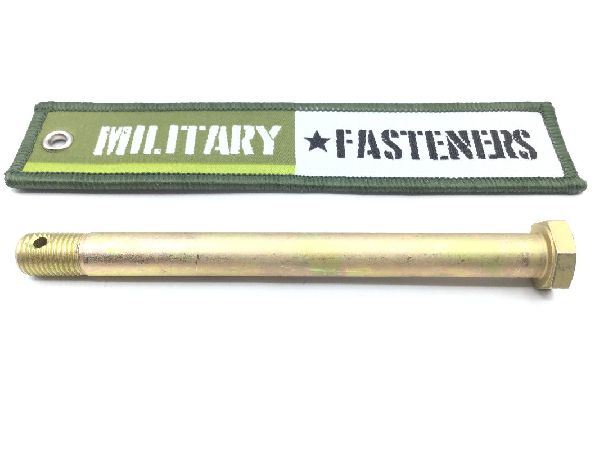

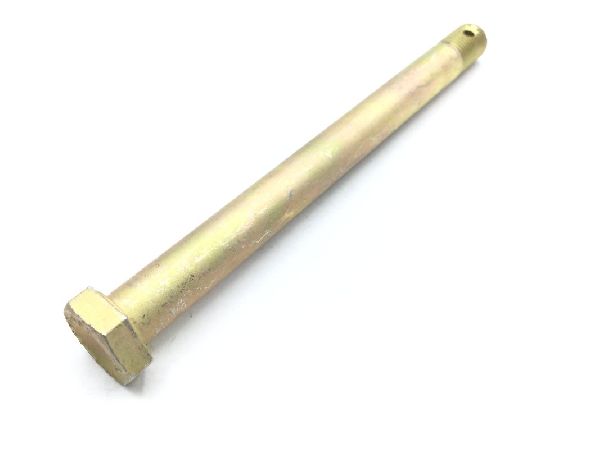

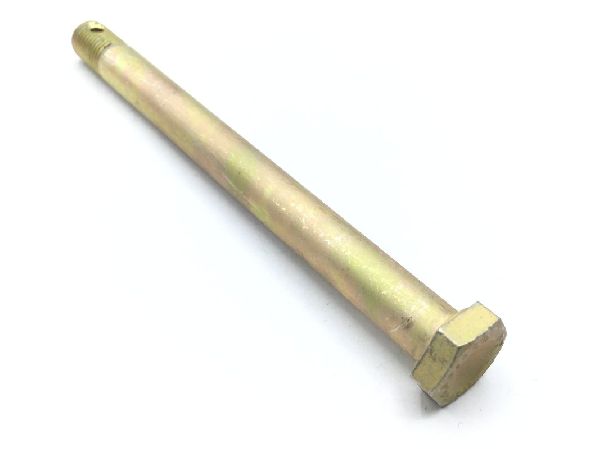

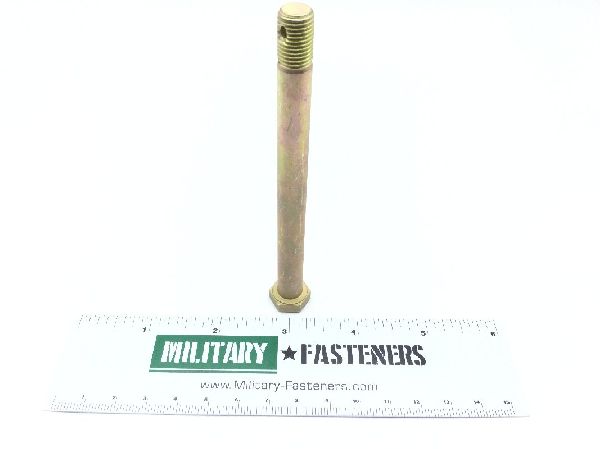

NAS6606D60 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.1000

Price per Unit $63.06

Units per Pack 1

Price per Pack $63.06

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $63.06

Add item to quote

Head Style

Dished hexagon

Material

Steel comp e4340 or steel comp 8740

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Quantity Per Inch (tpi)

Distance From Head Largest Bearing Surface To Shank Hole Center: 4.106 inches first hole and 4.156 inches first hole
Fastener Length: Between 4.313 inches and 4.343 inches
Grip Diameter: Between 0.3735 inches and 0.3745 inches
Grip Length: Between 3.740 inches and 3.760 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.188 inches and 0.203 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams 6322 assn standard 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.106 inches first hole and 0.116 inches first hole
Specification Data: 80205-nas6606 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.553 inches and 0.603 inches
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.554 inches and 0.564 inches
