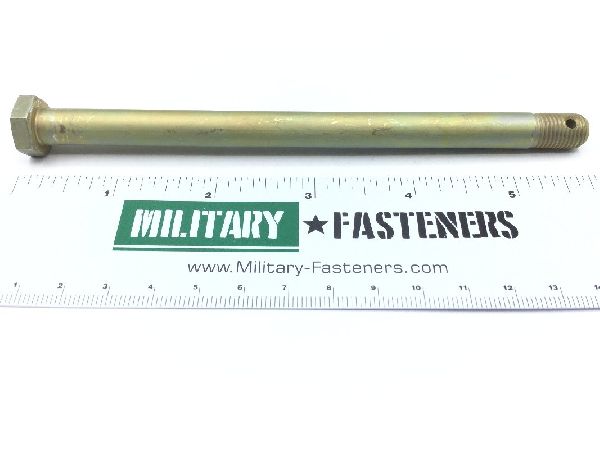

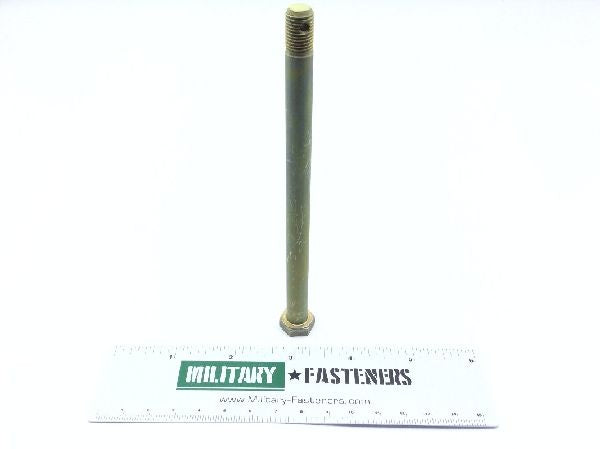

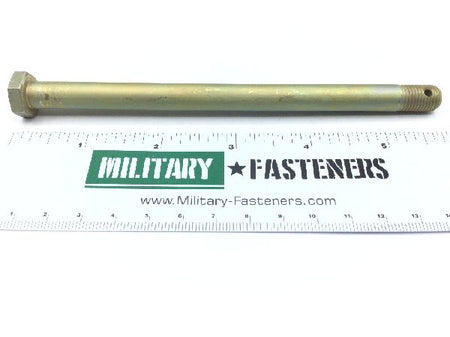

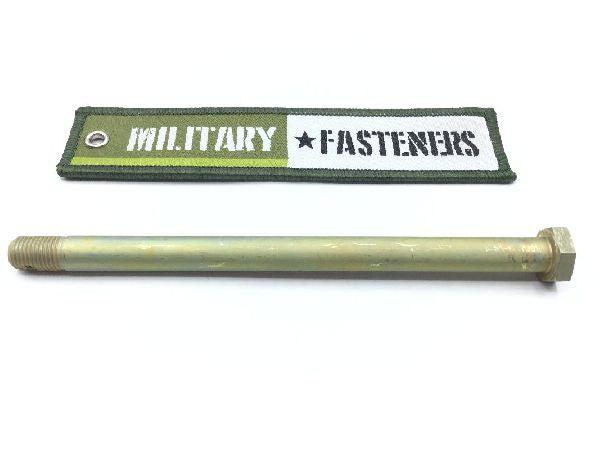

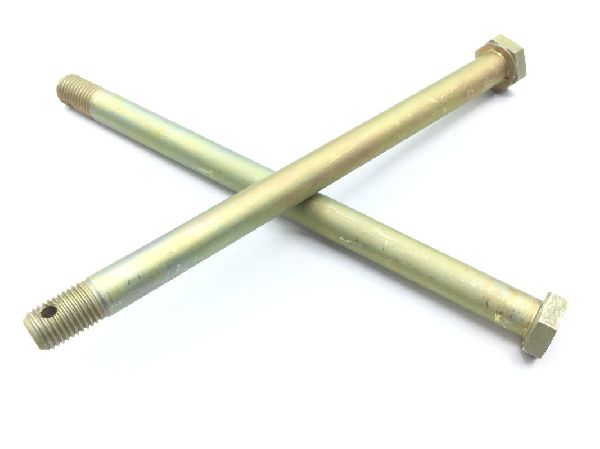

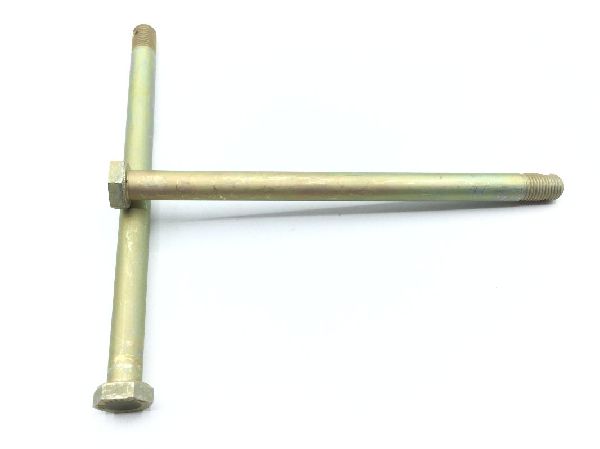

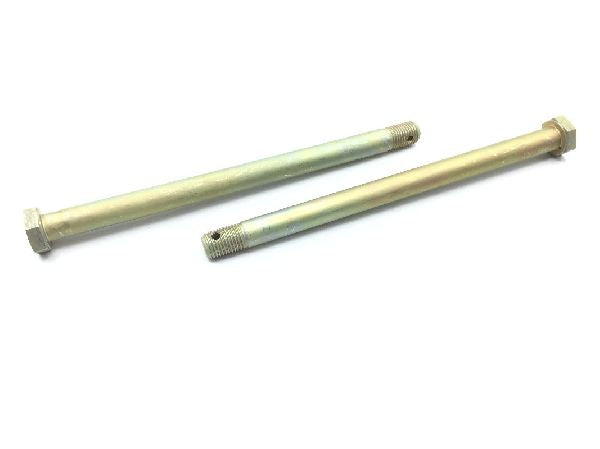

NAS6606D80 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $19.06

Units per Pack 2

Price per Pack $38.12

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $38.12

Add item to quote

Head Style

Dished hexagon

Material

Steel comp 4340 or steel comp 8740

Thread Class

Fastener Length: Between 5.557 inches and 5.587 inches
Grip Diameter: Between 0.3735 inches and 0.3745 inches
Grip Length: Between 4.9900 inches and 5.0100 inches
Head Height: Between 0.1880 inches and 0.2030 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6606d80 professional/industrial association standard
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.572 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.5540 inches and 0.5640 inches
