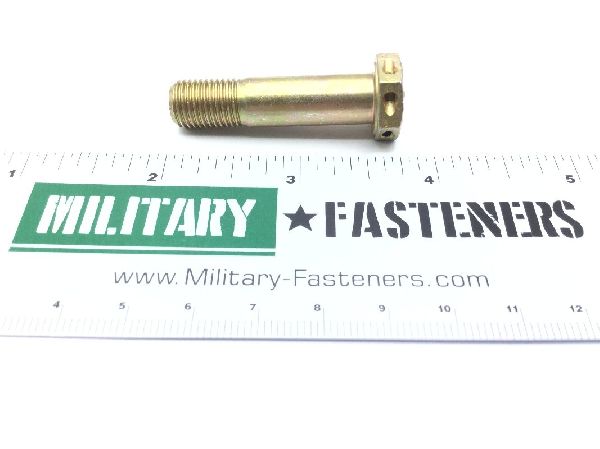

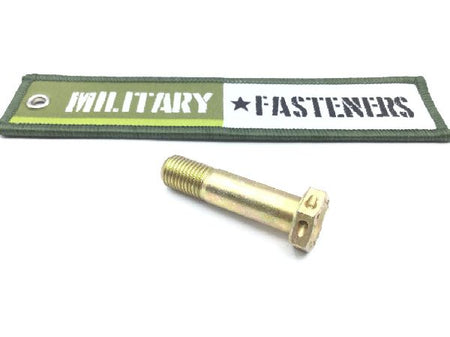

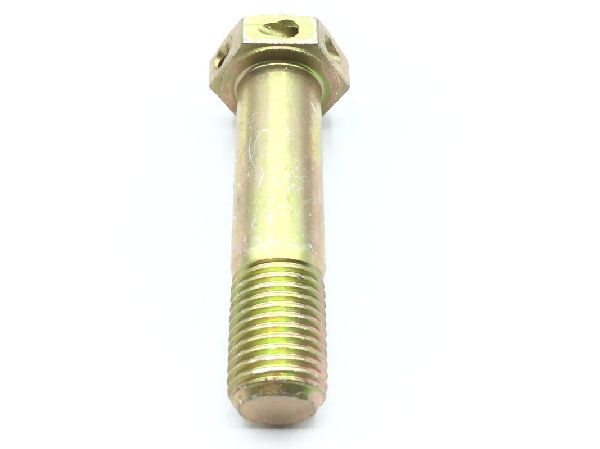

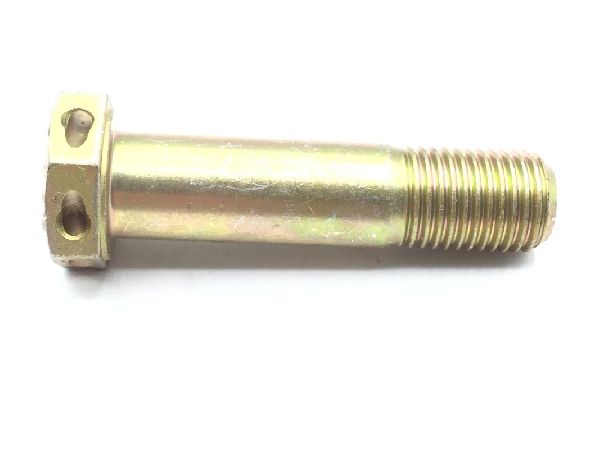

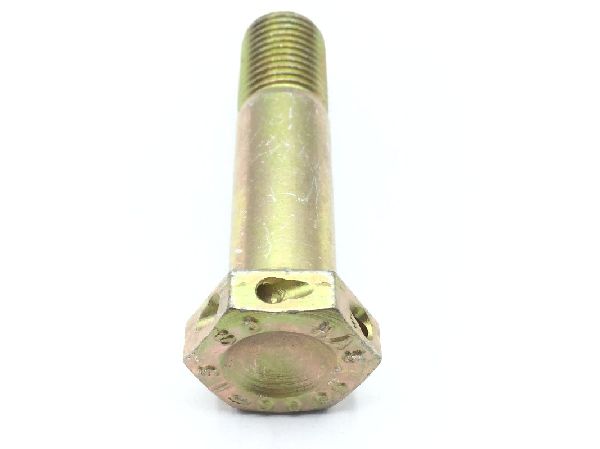

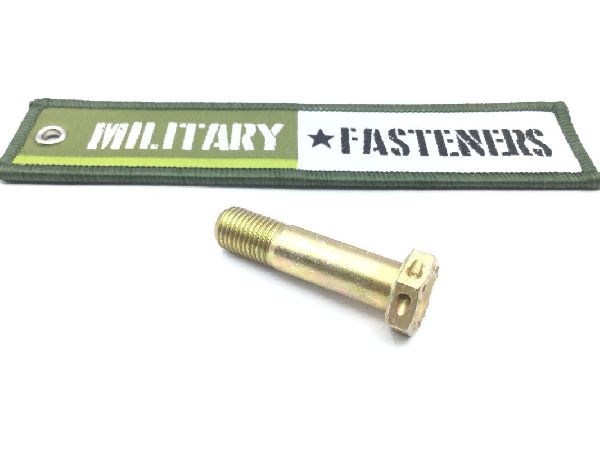

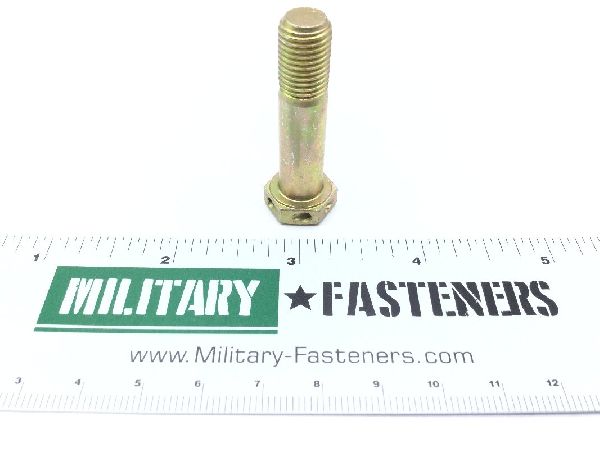

NAS6606H15 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Dished hexagon

Material

Steel comp e4340

Thread Class

Fastener Length: 1.328 inches
Grip Diameter: Between 0.374 inches and 0.375 inches
Grip Length: 0.938 inches
Head Height: 0.188 inches
Hole Configuration Style: Hexagon corners
Hole Quantity: 3
Hole Type: Drilled
Special Features: Shall be in accordance with all requirements as specified in national aerospace standard nas 6603 through 6620
Specification Data: 80205-nas6606 professional/industrial association standard
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 1.516 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.554 inches and 0.564 inches
