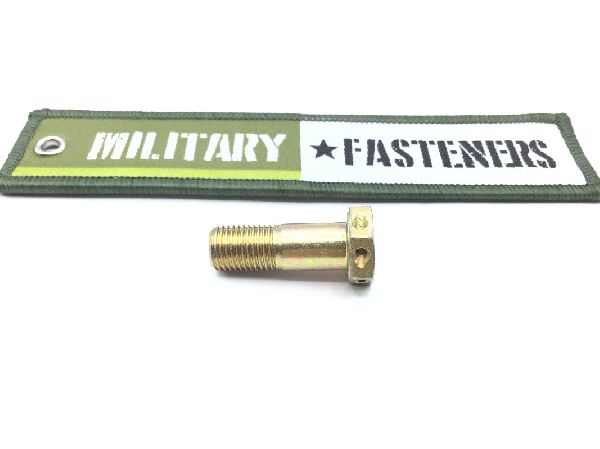

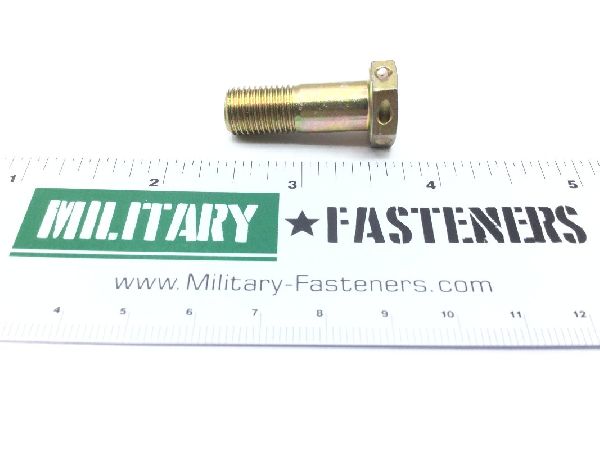

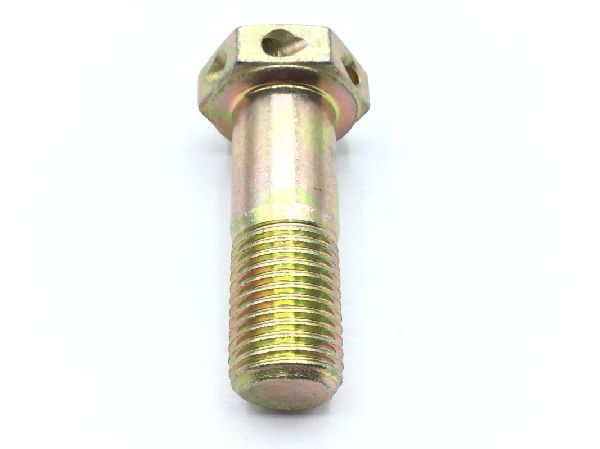

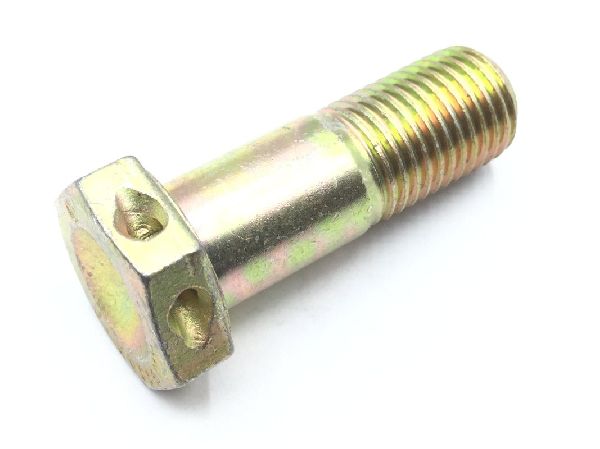

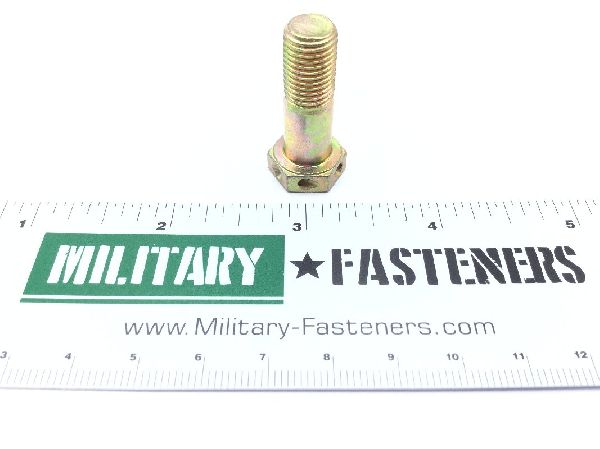

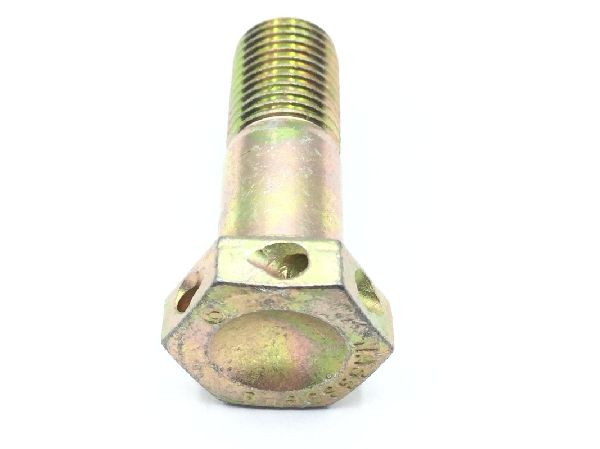

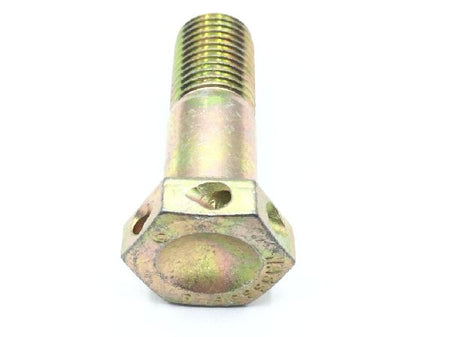

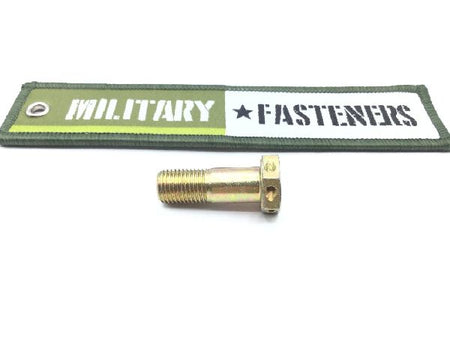

NAS6606H8 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Dished hexagon

Material

Steel comp 4140 or steel comp 4340 or steel comp 8740

Surface Treatment

Cl2 federal specification single treatment response ty2 qq-p-416

Thread Class

Fastener Length: Between 1.063 inches and 1.093 inches
Grip Diameter: Between 0.3735 inches and 0.3745 inches
Grip Length: Between 0.490 inches and 0.510 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.188 inches and 0.203 inches
Hole Configuration Style: Hexagon corners
Hole Quantity: 3
Hole Type: Drilled
Material Specification: Mil-s-5626 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams6415 assn standard 3rd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Single Shear Strength: 950000 pounds per square inch
Specification Data: 80205-nas6606 professional/industrial association standard
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.578 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.554 inches and 0.564 inches
Hole Diameter: Between 0.070 inches and 0.080 inches
