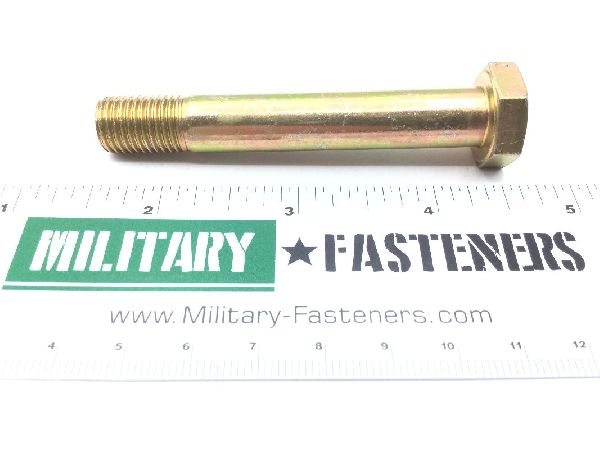

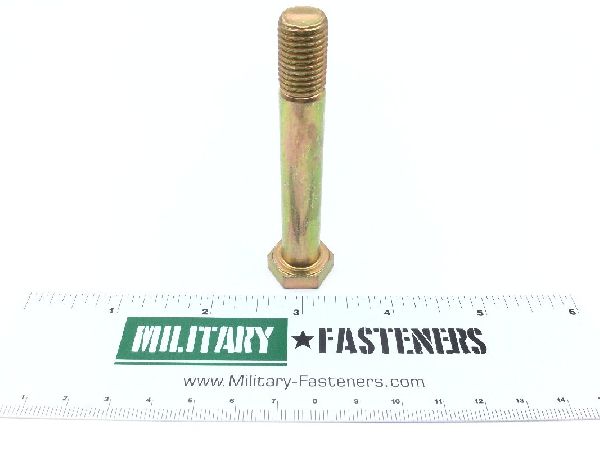

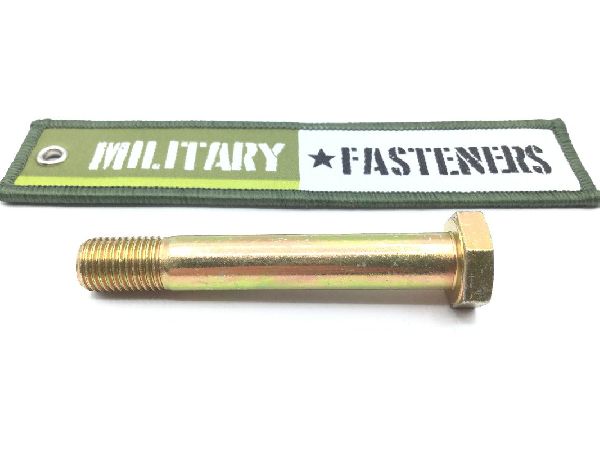

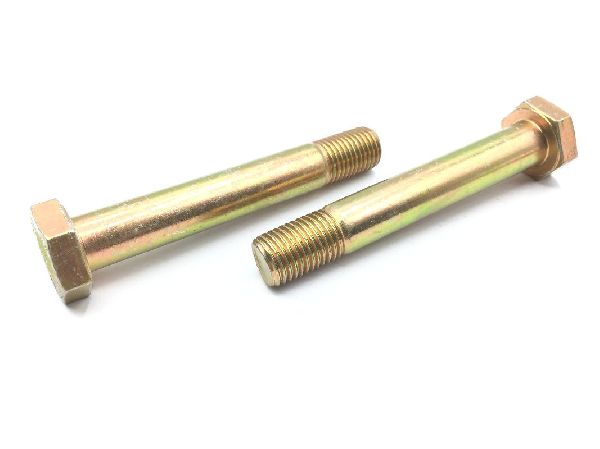

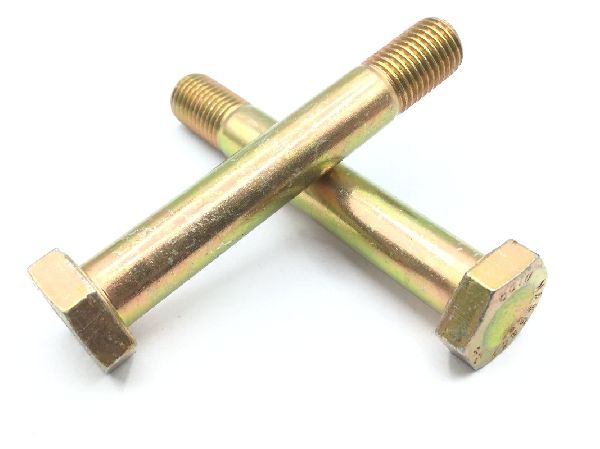

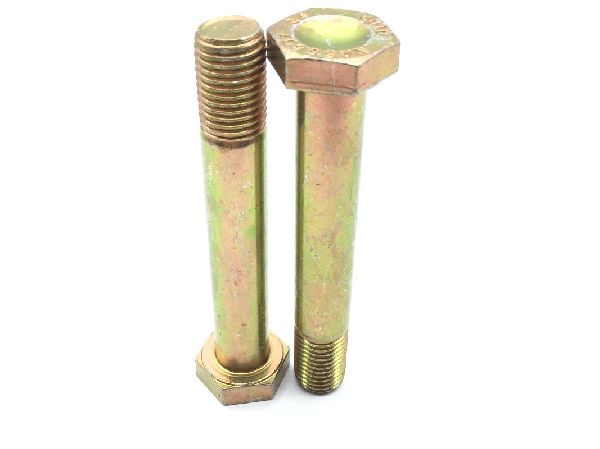

NAS6607-34 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $7.60

Units per Pack 10

Price per Pack $76.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $76.00

Add item to quote

Head Style

Dished hexagon

Material

Steel comp e4340 or steel comp 8740

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Fastener Length: Between 2.804 inches and 2.834 inches
Grip Diameter: Between 0.436 inches and 0.437 inches
Grip Length: Between 2.115 inches and 2.135 inches
Hardness Rating: 36.0 rockwell and 40.0 rockwell
Head Height: Between 0.219 inches and 0.234 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams 6322 assn standard 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6607 professional/industrial association standard
Surface Finish: 32 microinches bearing surface of head
Thread Diameter: 0.438 inches
Thread Direction: Right-hand
Thread Length: Between 0.669 inches and 0.719 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.678 inches and 0.690 inches
