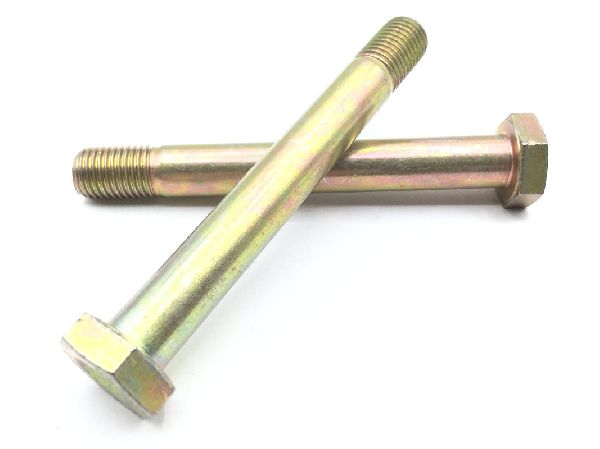

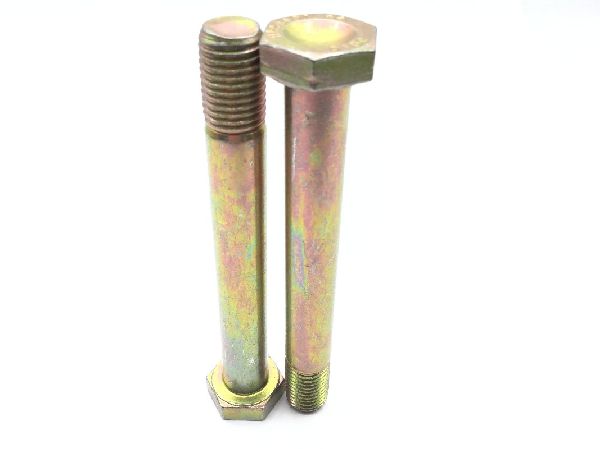

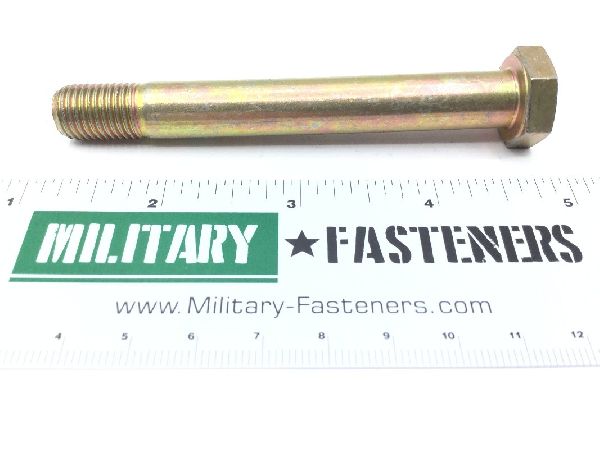

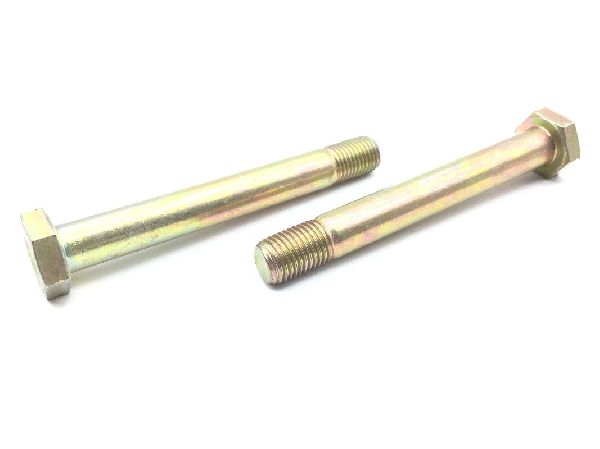

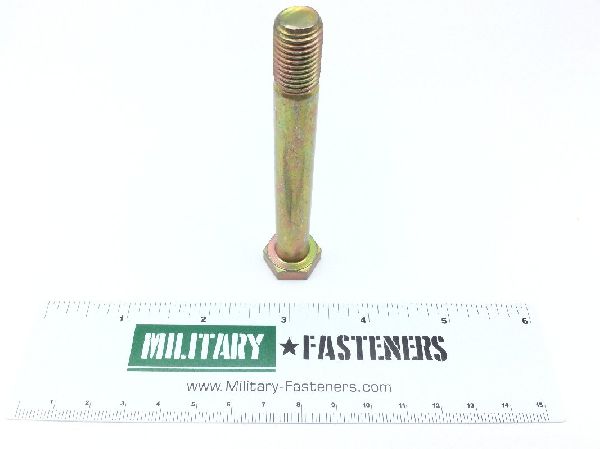

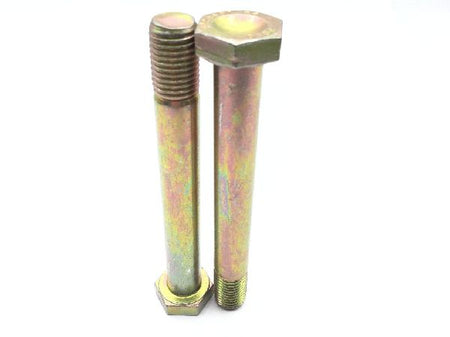

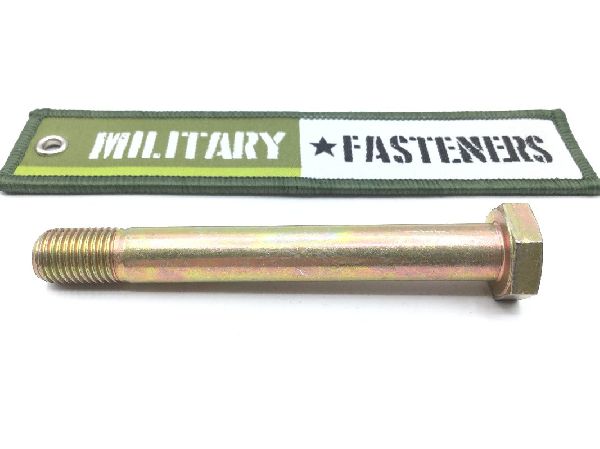

NAS6607-44 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Dished hexagon

Material

Steel

Surface Treatment

Qq-p-416 type 2 class 2 federal specification single treatment response

Thread Class

Fastener Length: Between 3.429 inches and 3.459 inches
Grip Diameter: Between 0.4360 inches and 0.4370 inches
Grip Length: Between 2.740 inches and 2.760 inches
Head Height: Between 0.219 inches and 0.234 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams 6322 assn standard 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6607 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.438 inches
Thread Direction: Right-hand
Thread Length: Between 0.669 inches and 0.719 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.678 inches and 0.690 inches
