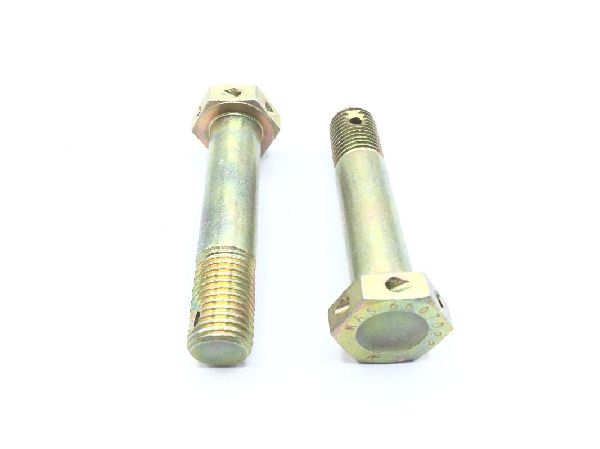

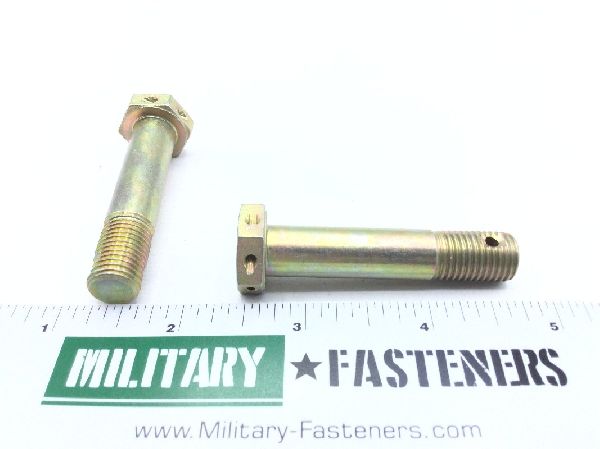

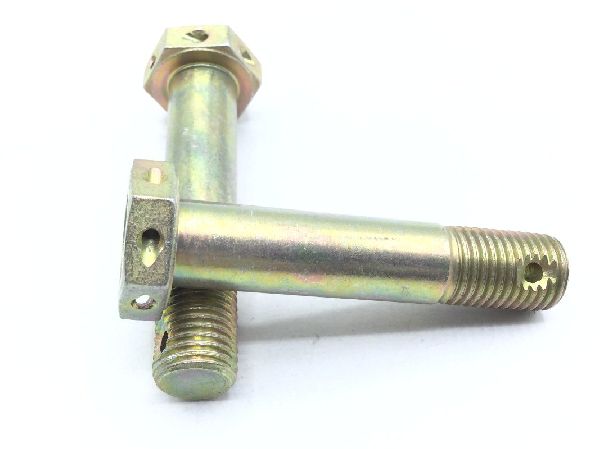

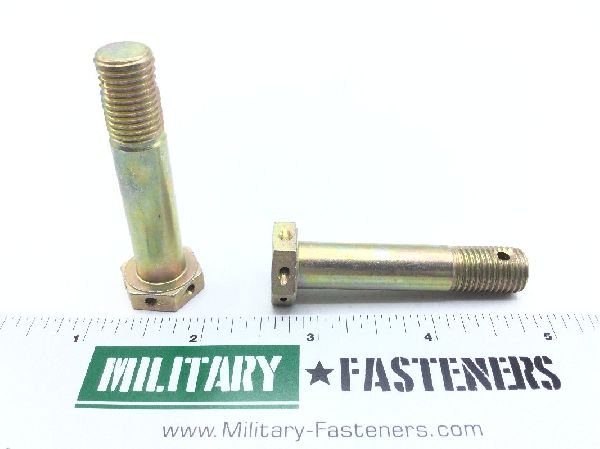

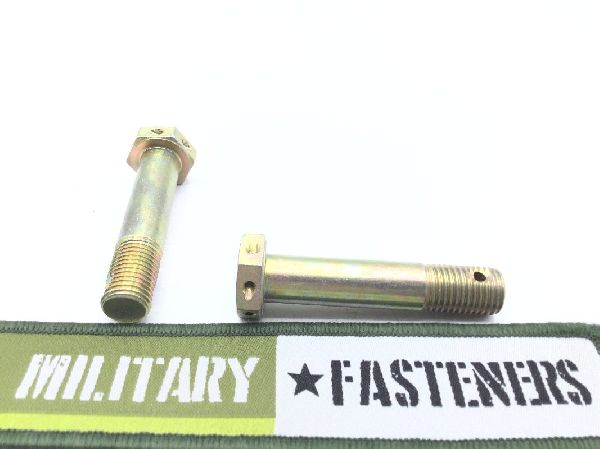

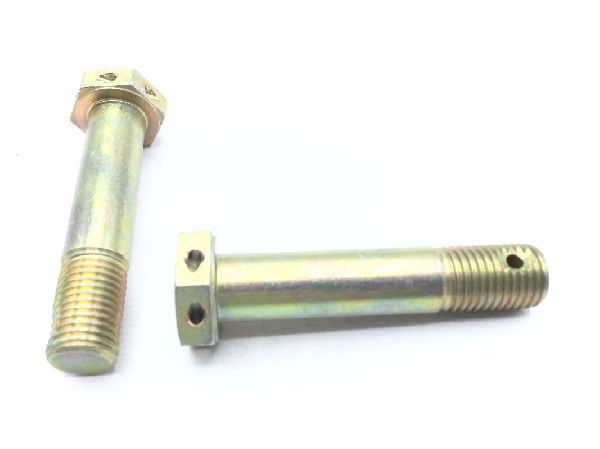

NAS6607DH22 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Steel comp 4140 or steel comp 4340 or steel comp 8740

Surface Treatment

class 2 federal specification single treatment response type ii qq-p-416

Thread Class

Fastener Length: 2.069 inches
Grip Diameter: Between 0.436 inches and 0.437 inches
Grip Length: 1.375 inches
Head Height: 0.219 inches
Hole Configuration Style: Hexagon corners
Hole Quantity: 6
Hole Type: Drilled
Material Specification: Ams6349 assn standard single material response or ams6382 assn standard single material response or ams6415 assn standard single material response or ams6484 assn standard single material response or ams6322 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Point Diameter: Between 0.426 inches and 0.431 inches
Point Style: Flat
Thread Diameter: 0.437 inches
Thread Direction: Right-hand
Thread Length: 0.694 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.678 inches and 0.690 inches
Hole Diameter: 0.106 inches
