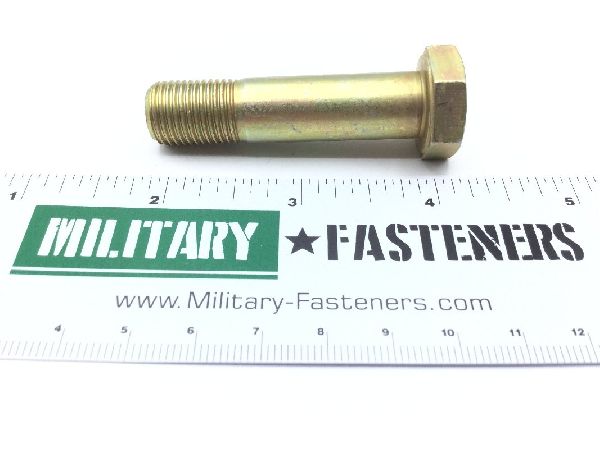

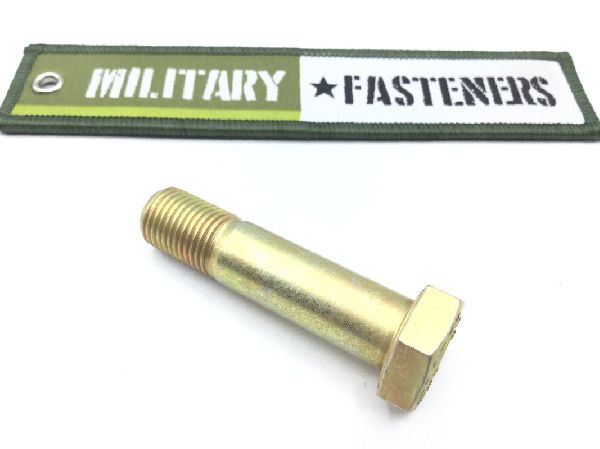

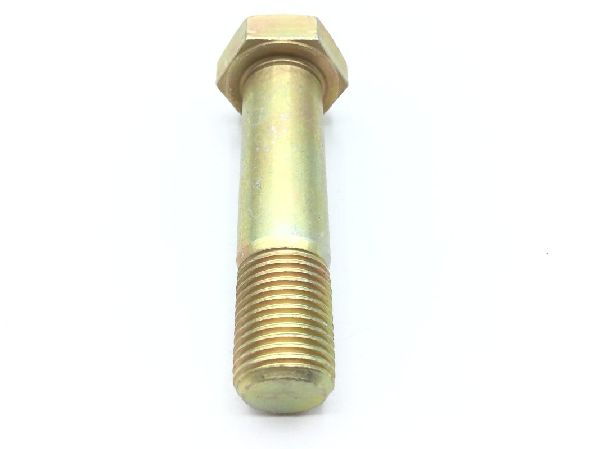

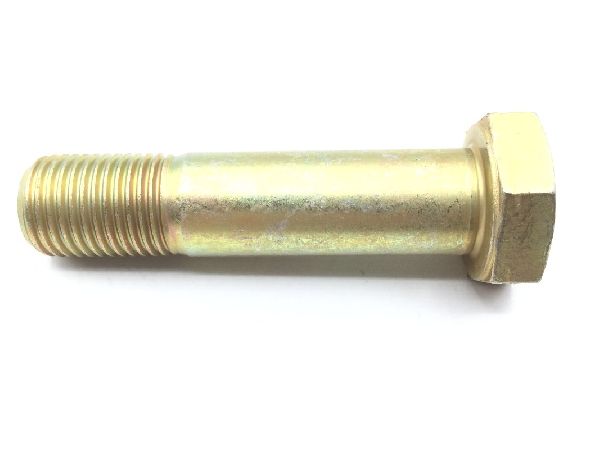

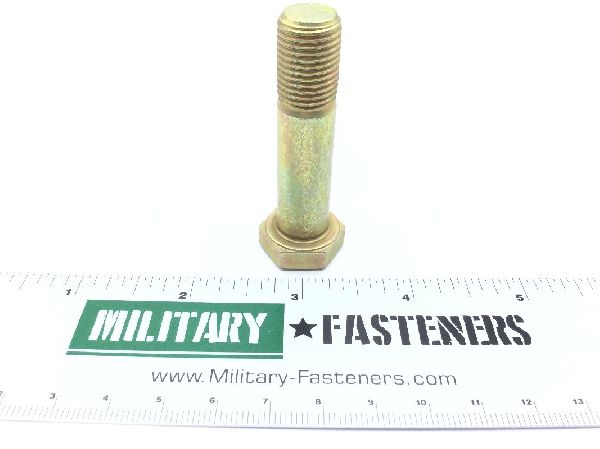

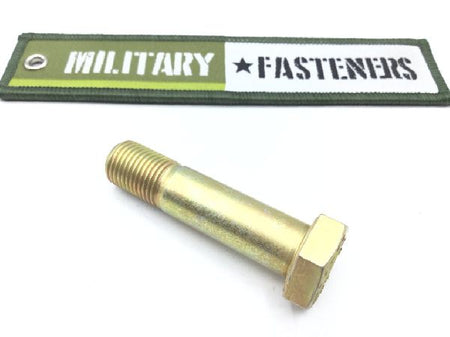

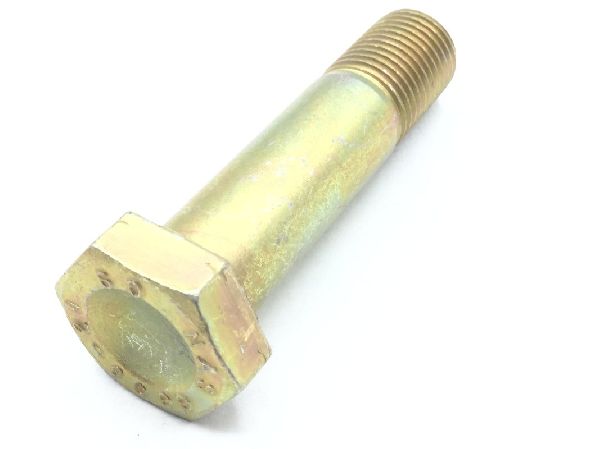

NAS6608-21 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $14.95

Units per Pack 5

Price per Pack $74.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $74.75

Add item to quote

Head Style

Dished hexagon

Material

Cadmium

Thread Class

Fastener Length: Between 2.032 inches and 2.062 inches
Grip Diameter: Between 0.4895 inches and 0.4995 inches
Grip Length: Between 1.302 inches and 1.322 inches
Head Height: Between 0.25 inches and 0.265 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6608 professional/industrial association standard
Surface Finish: 32.0 micro inches surface of head
Thread Diameter: 0.50 inches
Thread Direction: Right-hand
Thread Length: 0.735 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.741 inches and 0.752 inches
