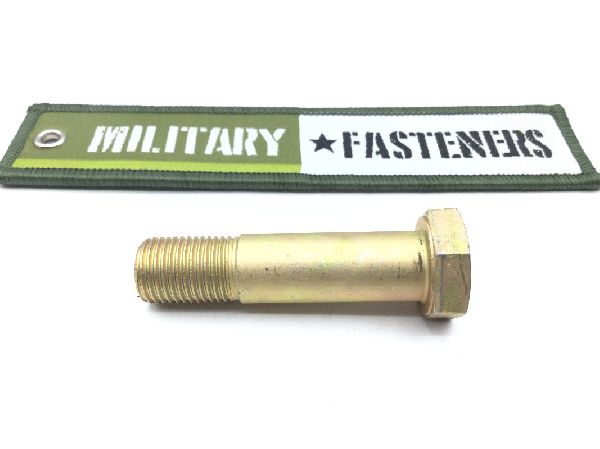

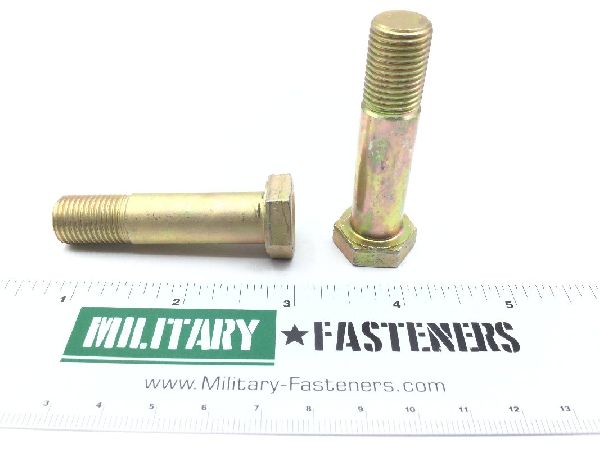

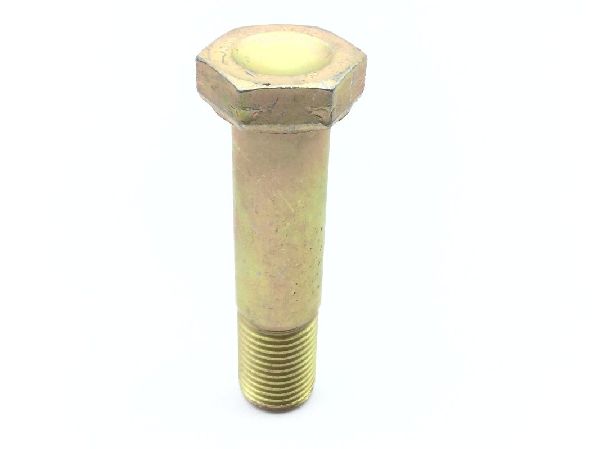

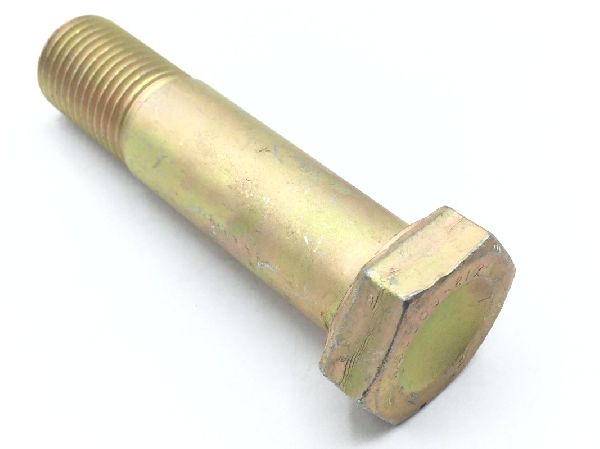

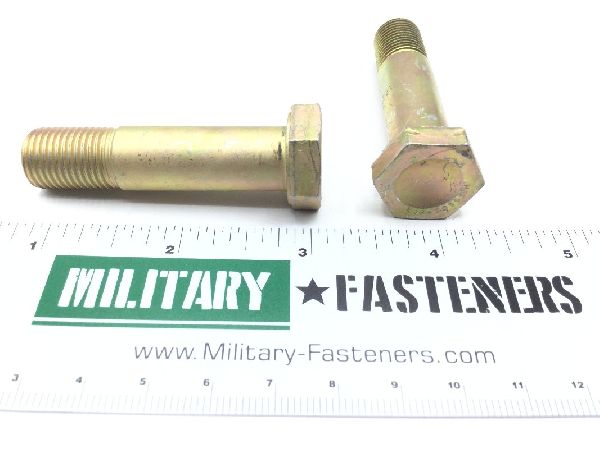

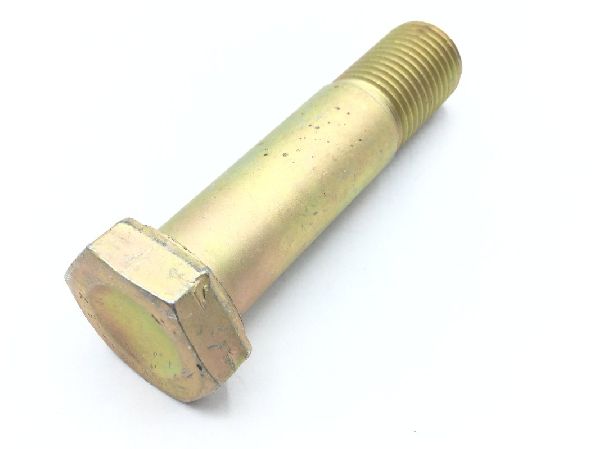

NAS6608-21X Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $26.26

Units per Pack 2

Price per Pack $52.52

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $52.52

Add item to quote

Head Style

Dished hexagon

Material

Steel comp e4340 or steel comp 8740

Surface Treatment

Qq-p-416 type 2 cl 2 federal specification single treatment response

Thread Class

Fastener Length: Between 2.032 inches and 2.062 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.25 inches and 0.265 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams 6322 assn standard 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shoulder Diameter: 0.5141 inches first shoulder and 0.5151 inches first shoulder
Shoulder Length: 1.302 inches first shoulder and 1.322 inches first shoulder
Shoulder Shape: Round first shoulder
Specification Data: 80205-nas6608 professional/industrial association standard
Thread Diameter: 0.50 inches
Thread Direction: Right-hand
Thread Length: Between 0.710 inches and 0.760 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.741 inches and 0.752 inches
