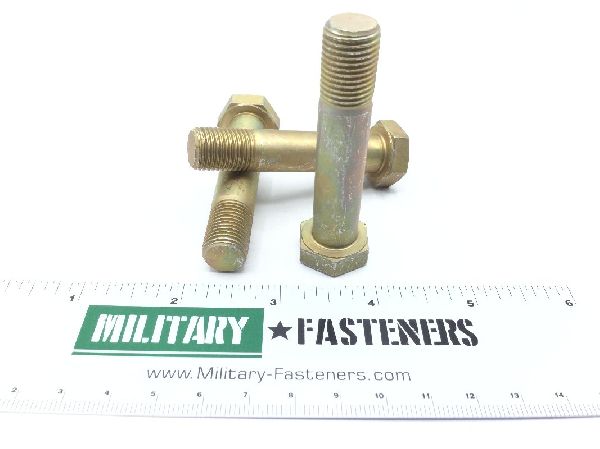

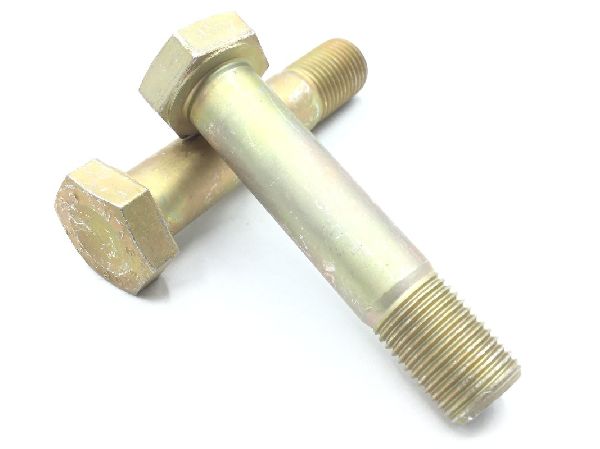

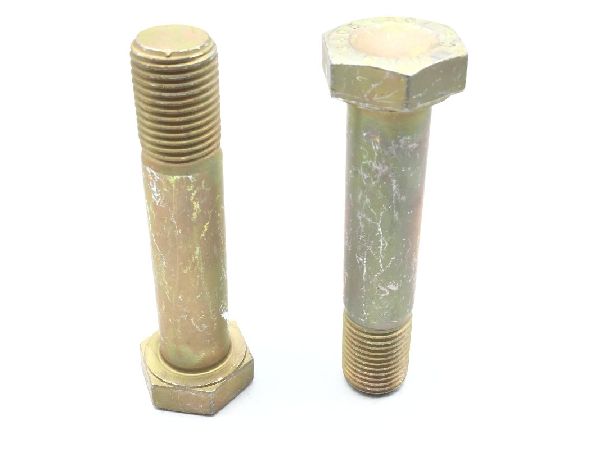

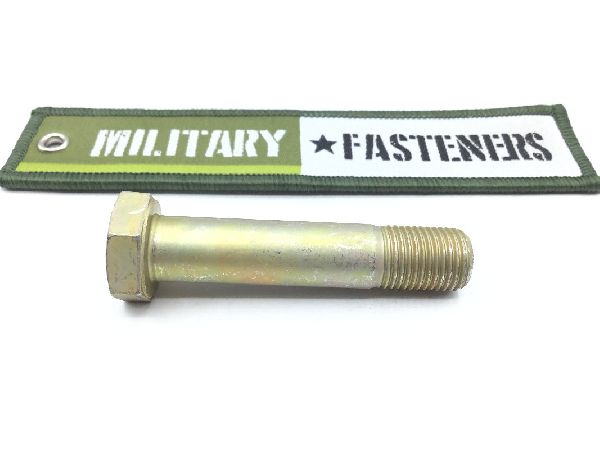

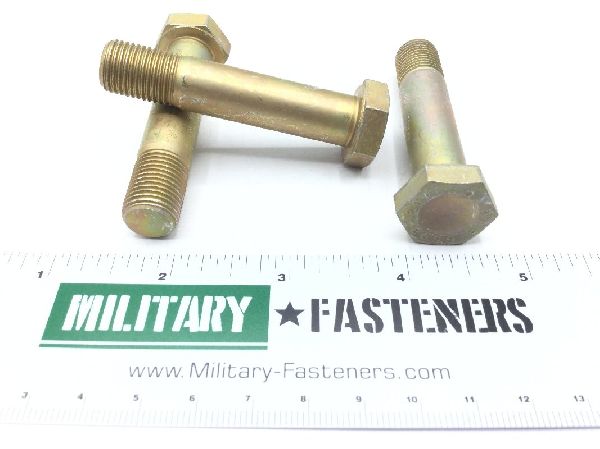

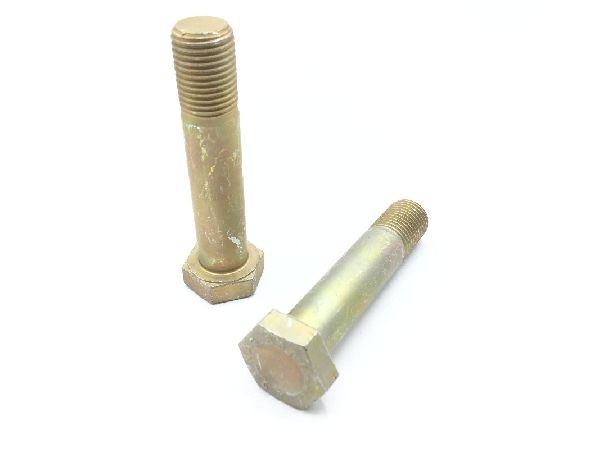

NAS6608-26 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $40.90

Units per Pack 2

Price per Pack $81.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $81.80

Add item to quote

Head Style

Dished hexagon

Material

Steel comp

Surface Treatment

Qq-p-416 type 2 class 2 federal specification single treatment response

Thread Class

Fastener Length: Between 2.345 inches and 2.375 inches
Grip Diameter: Between 0.4985 inches and 0.4995 inches
Grip Length: Between 1.615 inches and 1.635 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.250 inches and 0.265 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams 6322 assn standard 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6608 professional/industrial association standard
Surface Finish: 32.0 microinches grip
Thread Diameter: 0.5 inches
Thread Direction: Right-hand
Thread Length: Between 0.71 inches and 0.76 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.741 inches and 0.752 inches
