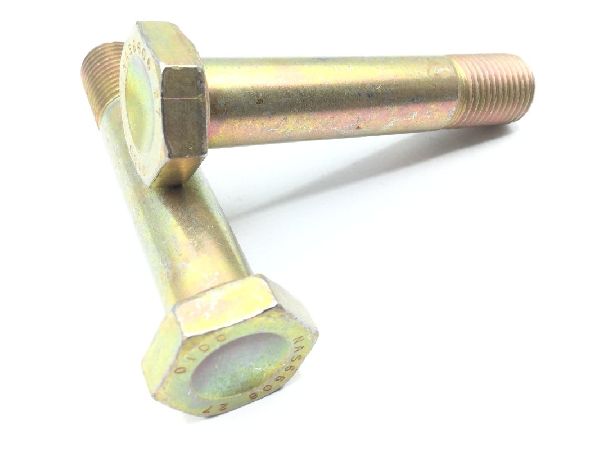

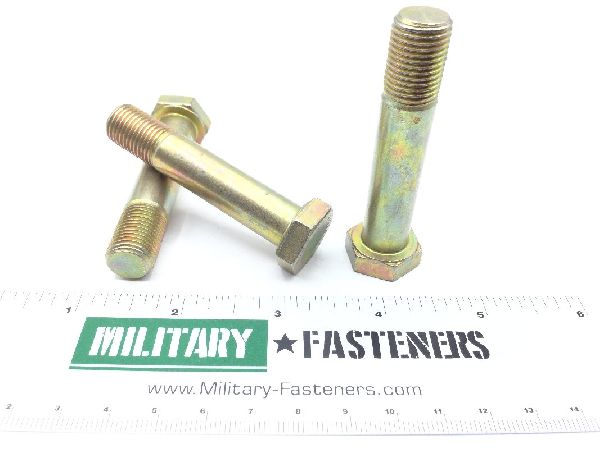

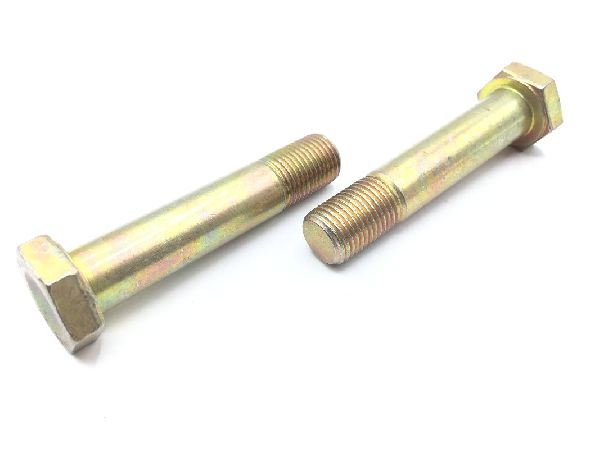

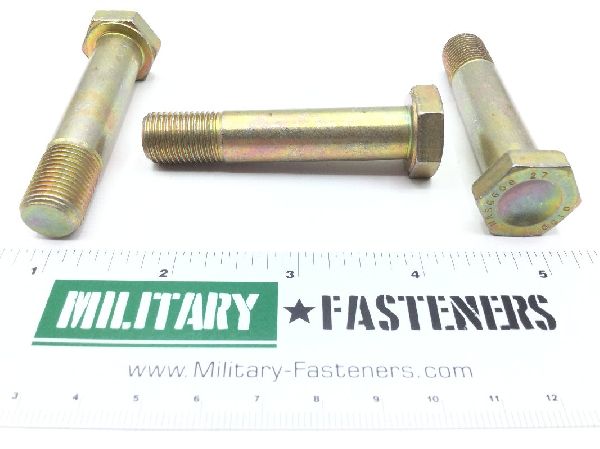

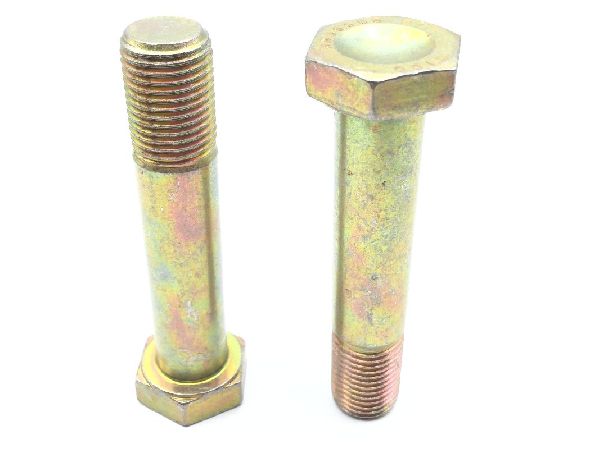

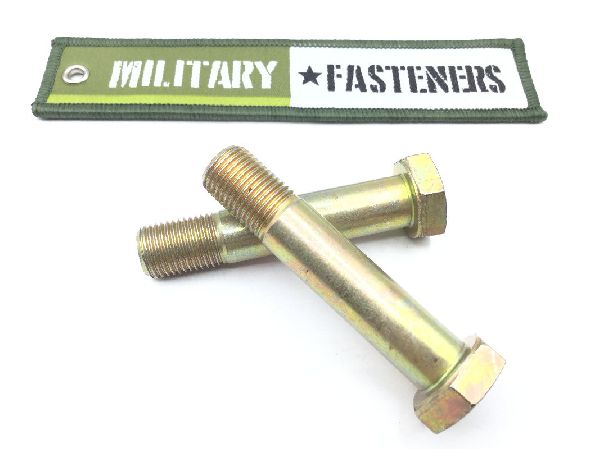

NAS6608-27 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Dished hexagon

Material

Steel comp 4340 or steel comp 8740

Surface Treatment

Qq-p-416 ty2 cl2 federal specification single treatment response

Thread Class

Fastener Length: Between 2.408 inches and 2.438 inches
Grip Diameter: Between 0.4985 inches and 0.4995 inches
Grip Length: Between 1.678 inches and 1.698 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.250 inches and 0.265 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams6322 assn standard 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6608 professional/industrial association standard
Thread Diameter: 0.5000 inches
Thread Direction: Right-hand
Thread Length: 0.735 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.741 inches and 0.752 inches
