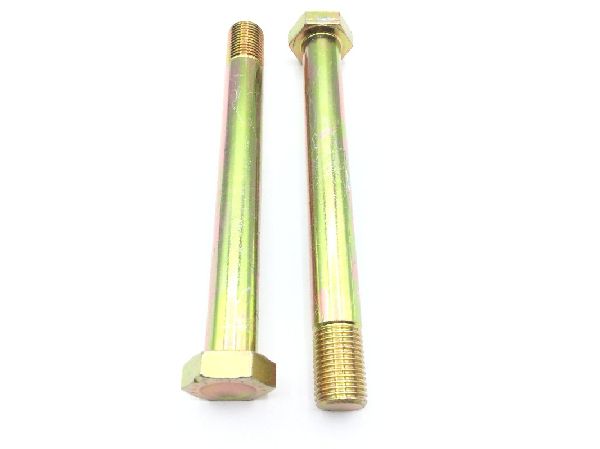

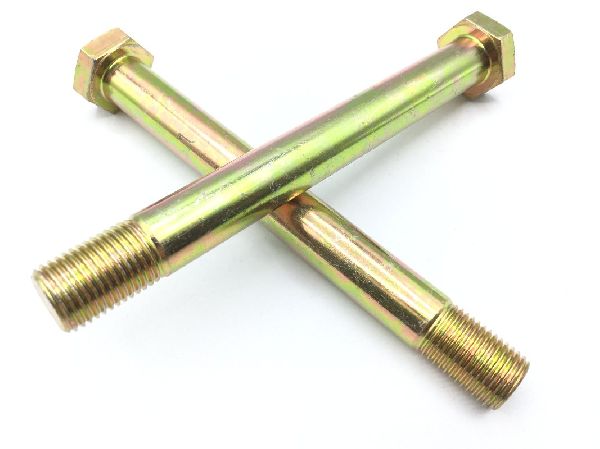

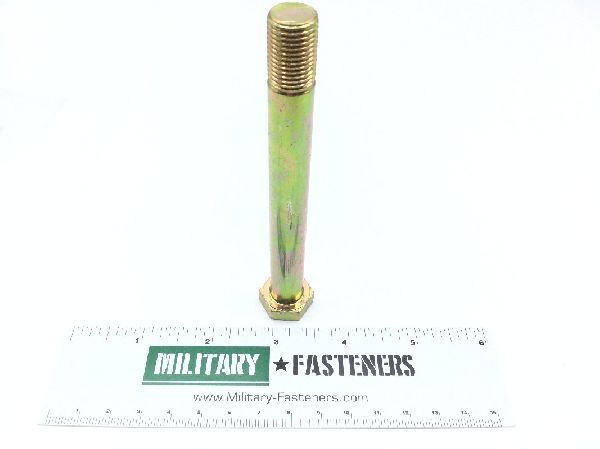

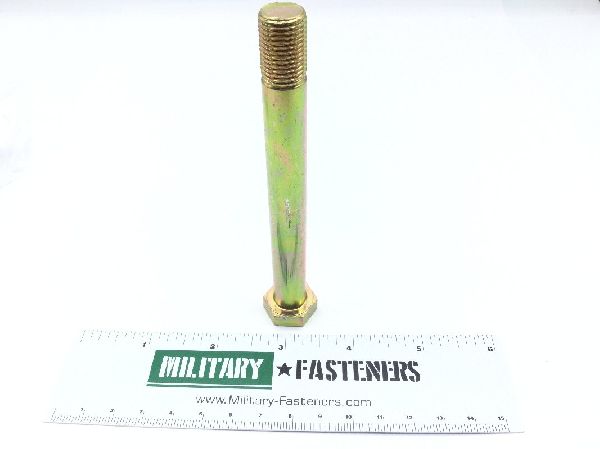

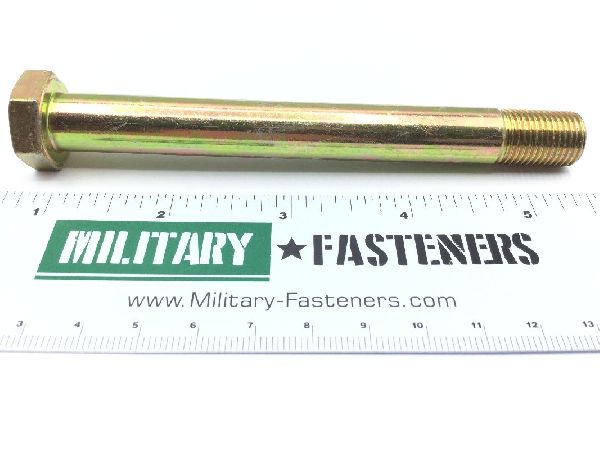

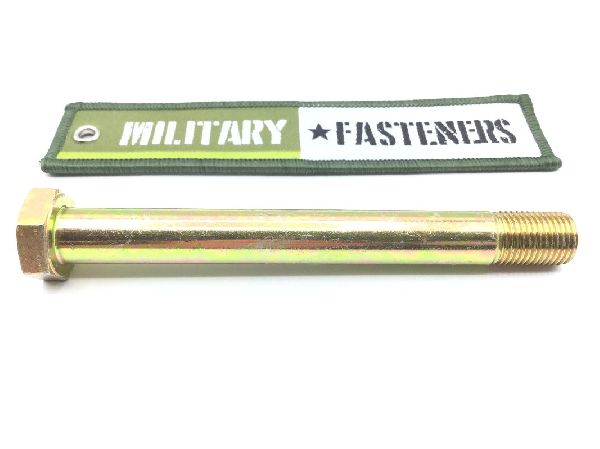

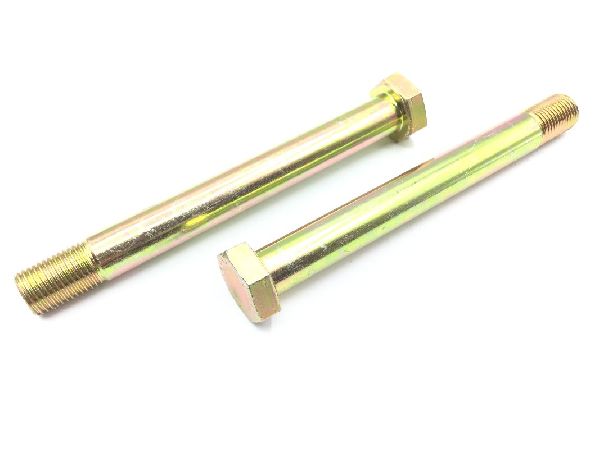

NAS6608-60 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $31.19

Units per Pack 2

Price per Pack $62.38

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $62.38

Add item to quote

Head Style

Hexagon

Material

Steel comp

Surface Treatment

Class 2 federal specification single treatment response ty2 qq-p-416

Thread Class

Fastener Length: Between 4.470 inches and 4.510 inches
Grip Diameter: Between 0.4985 inches and 0.4995 inches
Grip Length: Between 3.740 inches and 3.760 inches
Head Height: Between 0.250 inches and 0.265 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6608 professional/industrial association standard
Surface Finish: 32.0 microinches surface of head
Thread Diameter: 0.500 inches
Thread Direction: Right-hand
Thread Length: 0.735 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.741 inches and 0.752 inches
