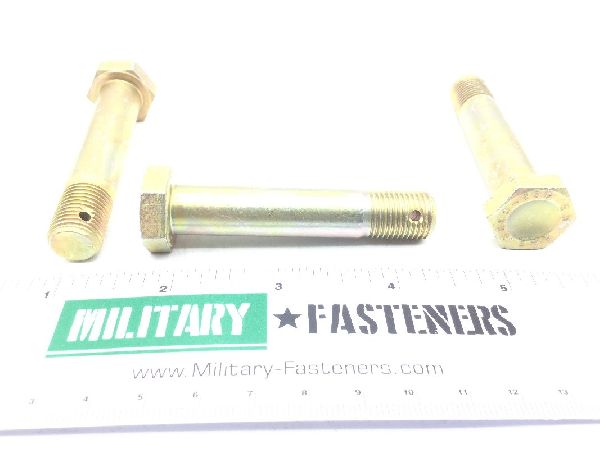

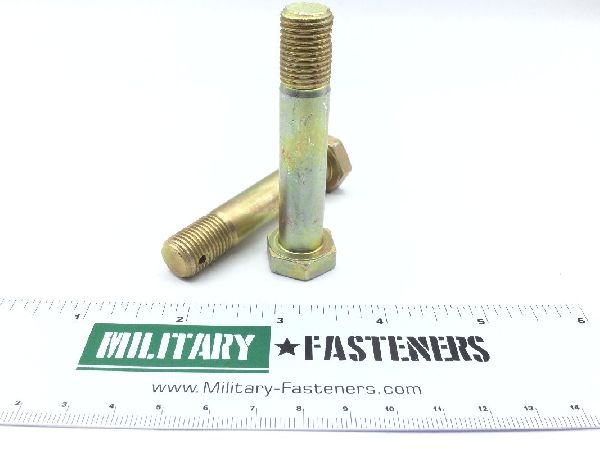

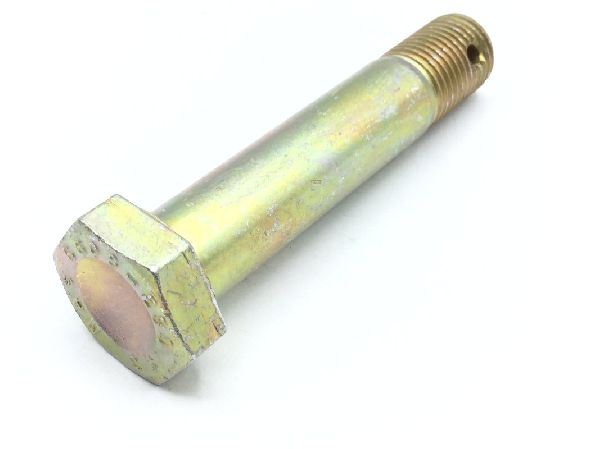

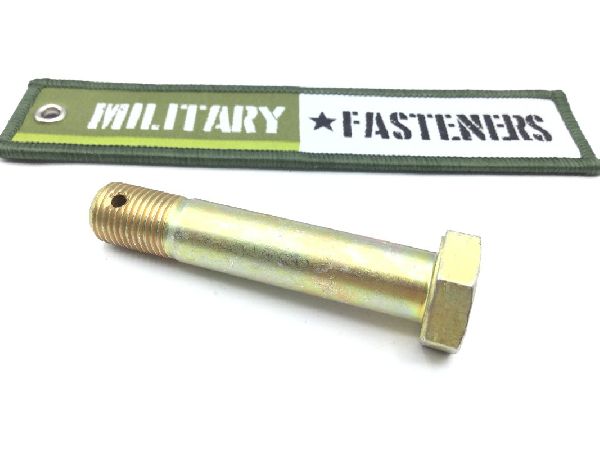

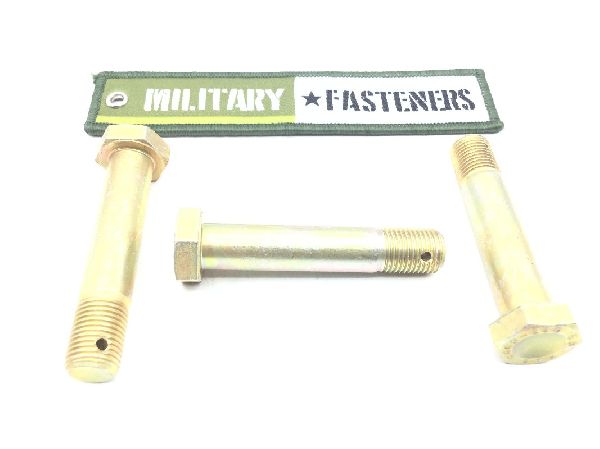

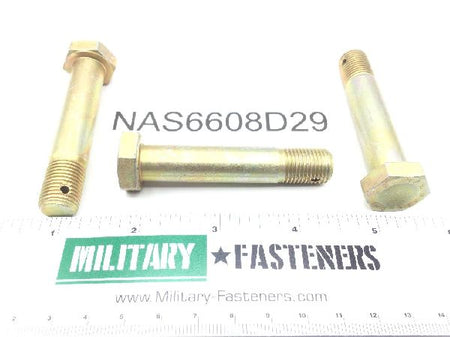

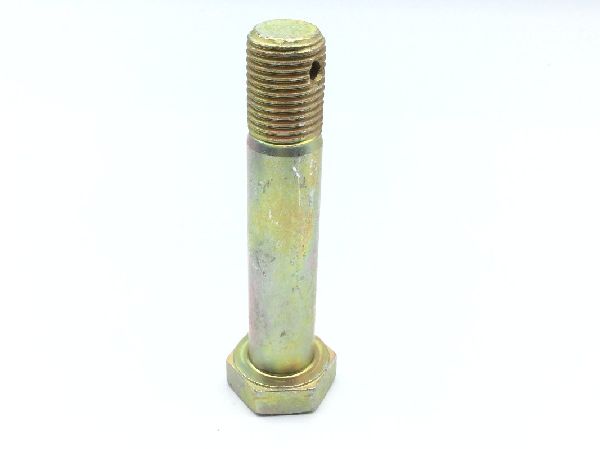

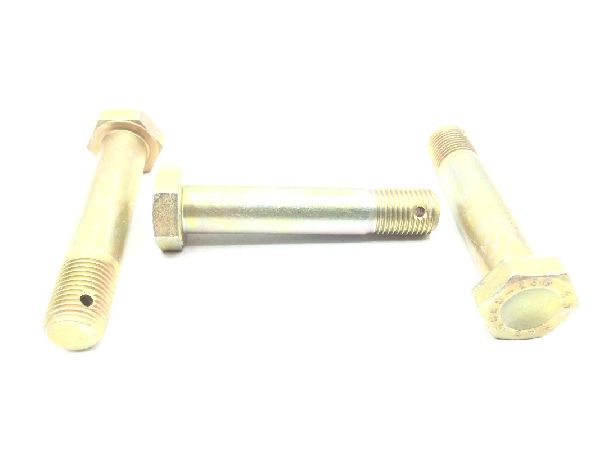

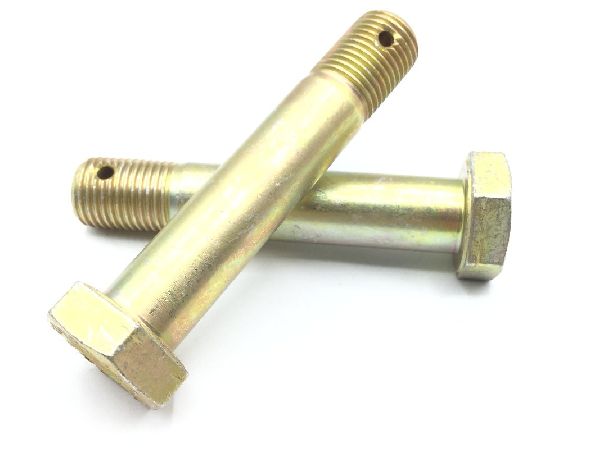

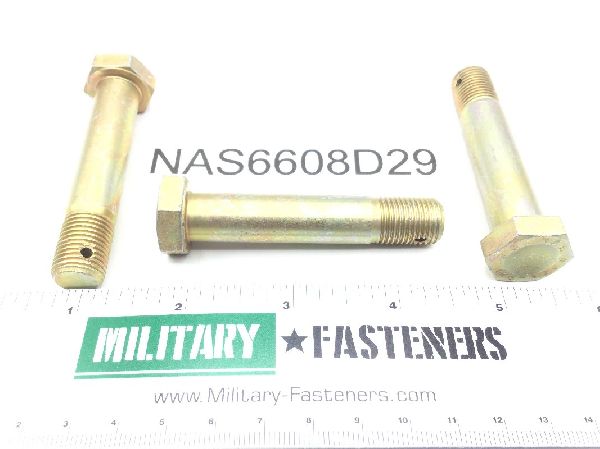

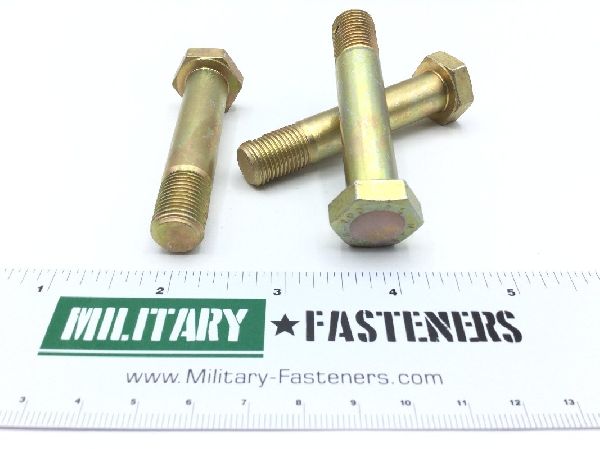

NAS6608D29 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $13.79

Units per Pack 5

Price per Pack $68.95

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $68.95

Add item to quote

Head Style

Dished hexagon

Material

Steel comp

Surface Treatment

Ams-qq-p-416 type ii class 2 assn standard single treatment response

Thread Class

Distance From Head Largest Surface To Shank Hole Center: 2.331 inches
Fastener Length: Between 2.532 inches and 2.562 inches
Grip Diameter: 0.499 mils and 0.500 centimeters
Grip Length: 1.802 mils and 1.822 centimeters
Head Height: Between 0.235 inches and 0.265 inches
Material Specification: Ams6349 assn standard single material response or ams6340 assn standard single material response or ams6415 assn standard single material response or ams6484 assn standard single material response
Part Name Assigned By Controlling Agency: 160 ksi ftu nonlocking reduced major diameter long thread alloy steel close tolerance hex head tension bolt
Shank Unthreaded Hole Diameter: 0.106 mils and 0.116 centimeters
Thread Diameter: 0.500 inches
Thread Direction: Right-hand
Thread Length: 0.735 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.741 mils and 0.752 centimeters
