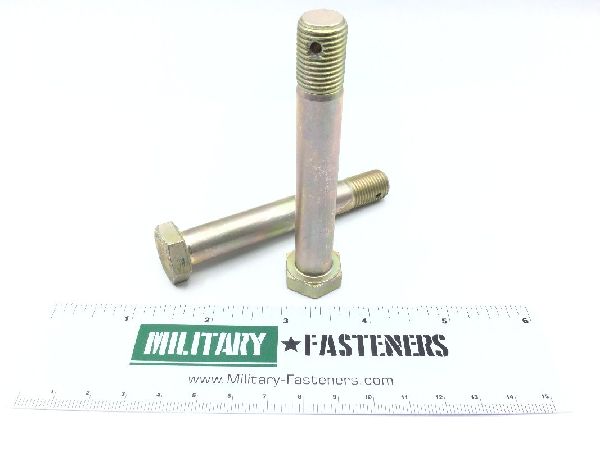

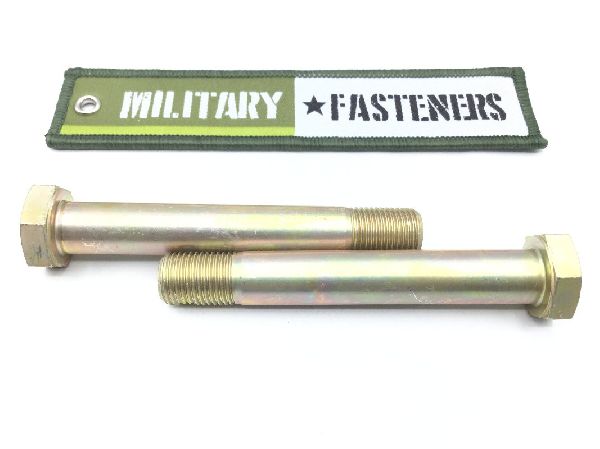

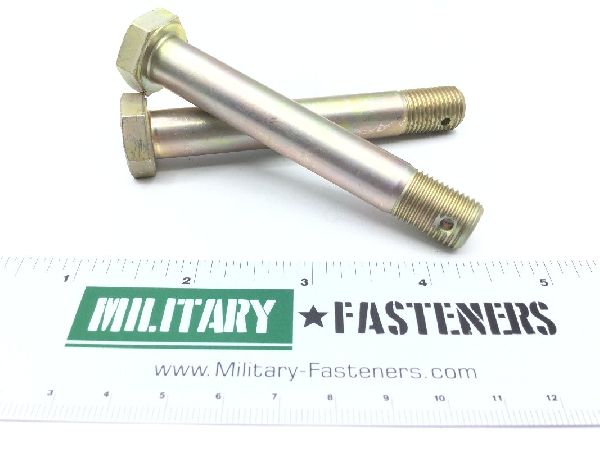

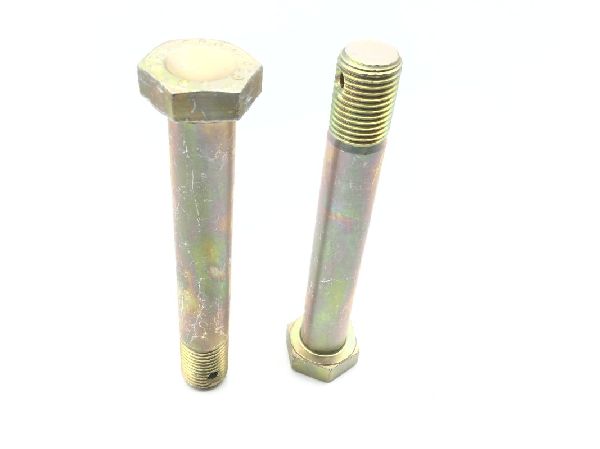

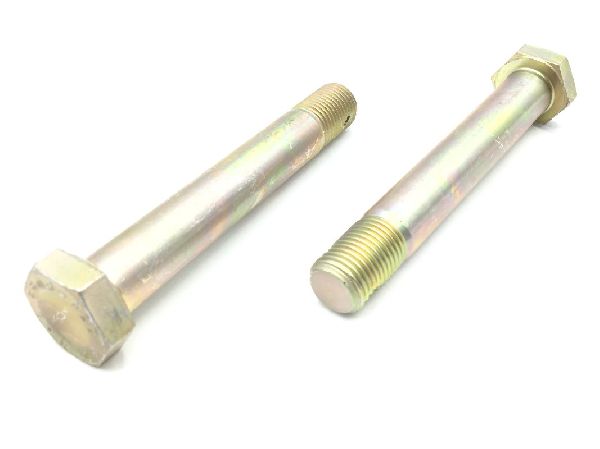

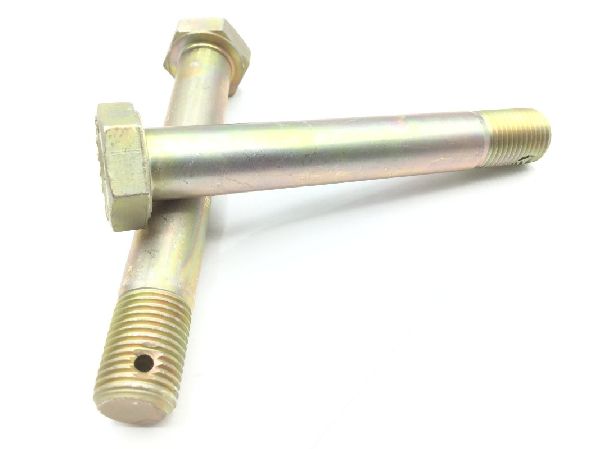

NAS6608D42 Shear Bolt
- Product Series
- NAS
- ECCN
- EAR99
- Schedule
- 7318.15.8085
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Distance From Head Largest Bearing Surface To Shank Hole Center
- 2.879 inches first hole and 2.919 inches first hole
- Fastener Length
- Between 3.095 inches and 3.125 inches
- Grip Diameter
- Between 0.4985 inches and 0.4995 inches
- Grip Length
- Between 2.615 inches and 2.635 inches
- Hardness Rating
- 36.0 rockwell c and 40.0 rockwell c
- Head Height
- Between 0.250 inches and 0.265 inches
- Material Specification
- Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams6322 assn standard 2nd material response
- Min. Tensile Strength (psi)
- 160000 pounds per square inch
- Shank Unthreaded Hole Diameter
- 0.106 inches first hole and 0.116 inches first hole
- Specification Data
- 80205-nas6608 professional/industrial association standard
- Surface Finish
- 32.0 microinches bearing surface of head
- Thread Diameter
- 0.500 inches
- Thread Direction
- Right-hand
- Thread Length
- Between 0.710 inches and 0.760 inches
- Thread Qty Per Inch (tpi)
- 20
- Thread Series Designator
- Unjf (fine thread with external controlled root radius)
- Width Between Flats
- Between 0.741 inches and 0.752 inches
