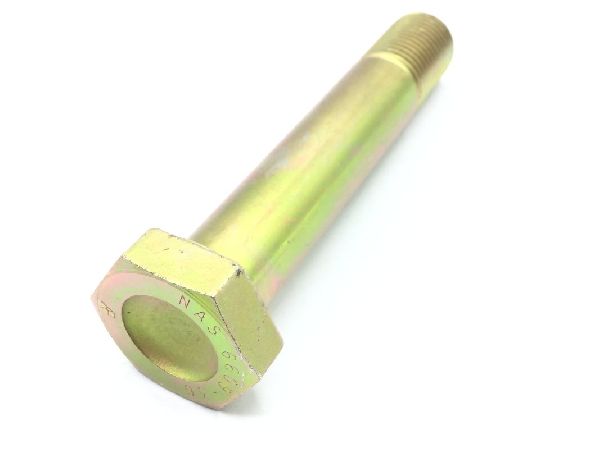

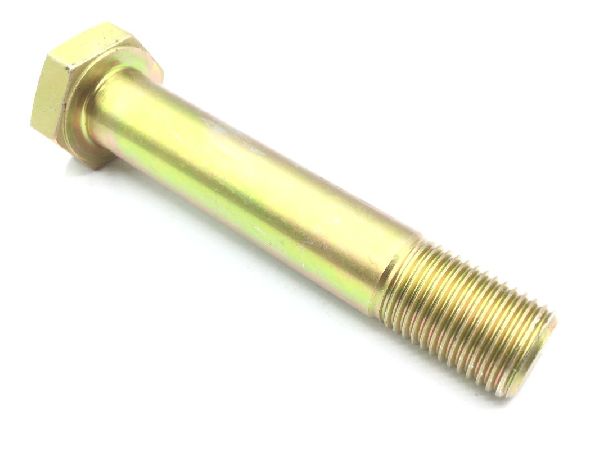

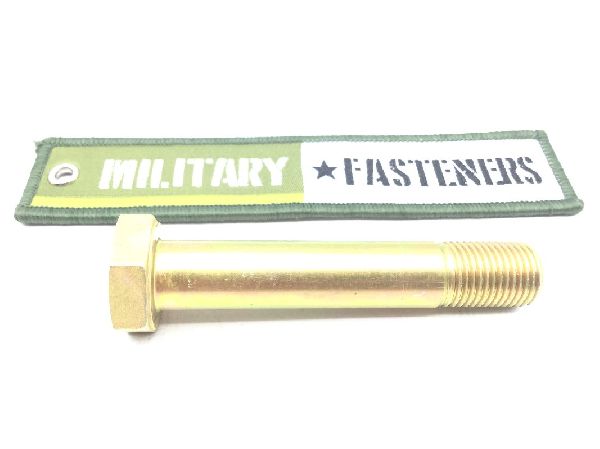

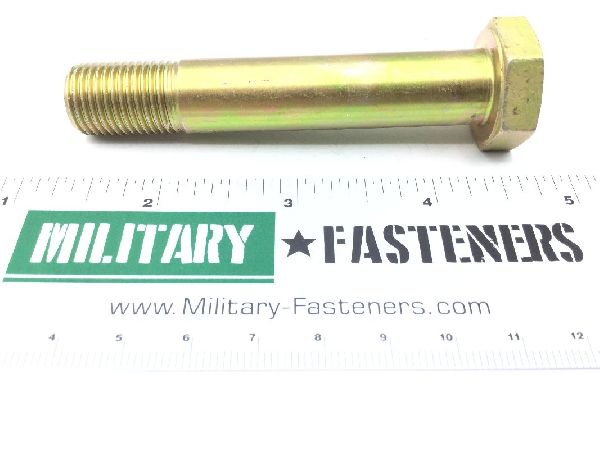

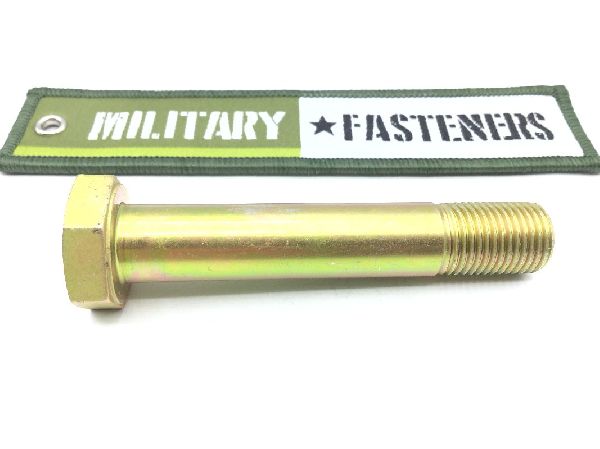

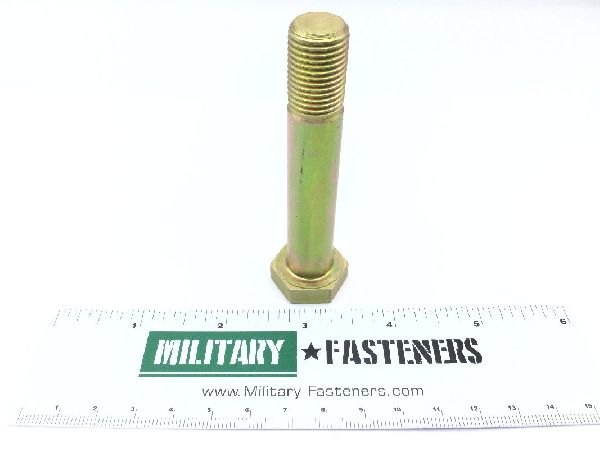

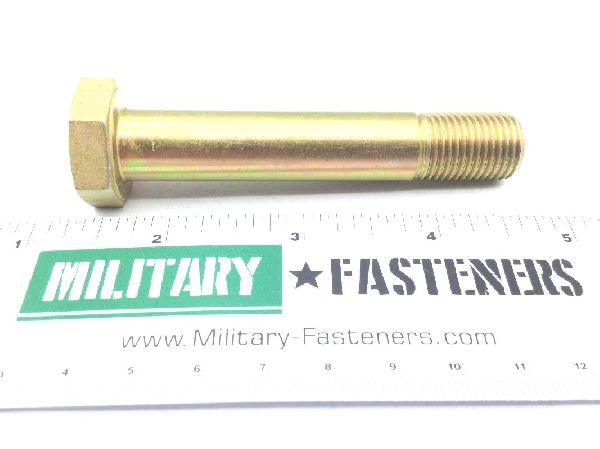

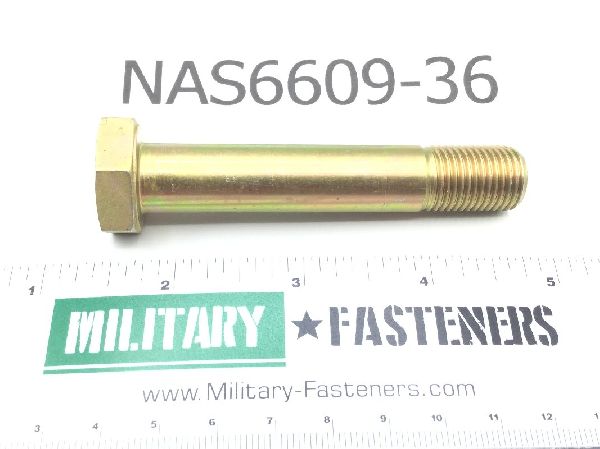

NAS6609-36 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $69.23

Units per Pack 1

Price per Pack $69.23

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $69.23

Add item to quote

Head Style

Dished hexagon

Material

Steel comp e4340 or steel comp 8740

Surface Treatment

Cl 2 federal specification single treatment response qq-p-416 type 2

Thread Class

Fastener Length: Between 3.075 inches and 3.105 inches
Grip Diameter: Between 0.5605 inches and 0.5615 inches
Grip Length: Between 2.240 inches and 2.260 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.281 inches and 0.296 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams 6322 assn standard 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6609 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.562 inches
Thread Direction: Right-hand
Thread Length: Between 0.815 inches and 0.865 inches
Thread Qty Per Inch (tpi): 18
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.865 inches and 0.877 inches
