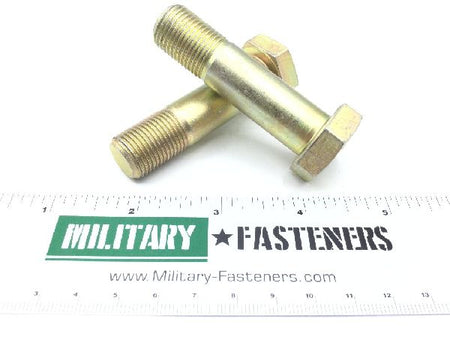

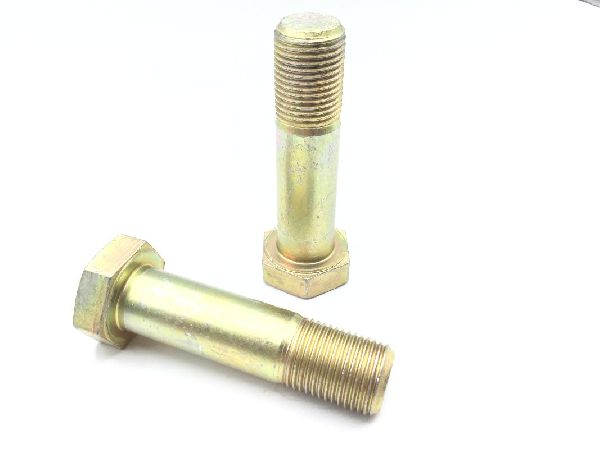

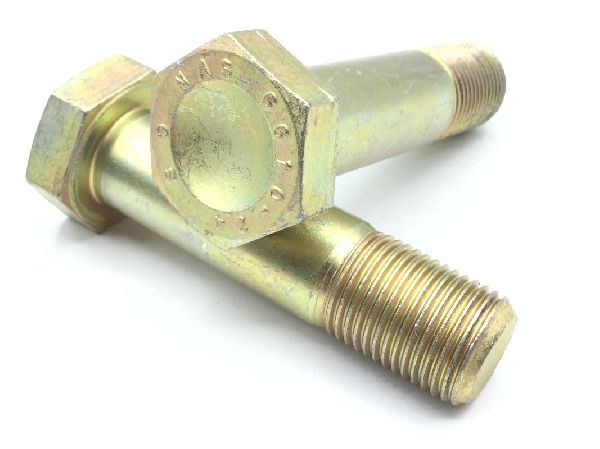

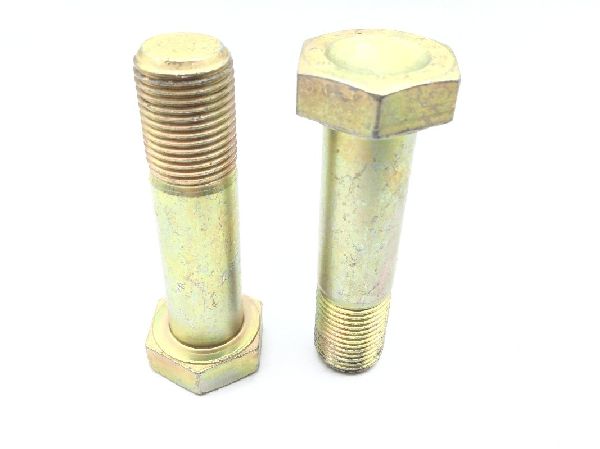

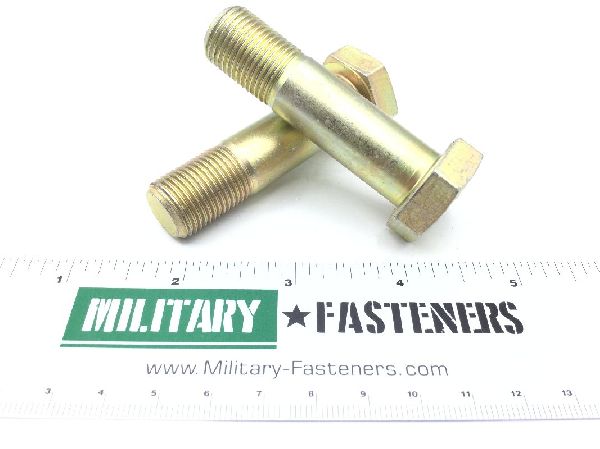

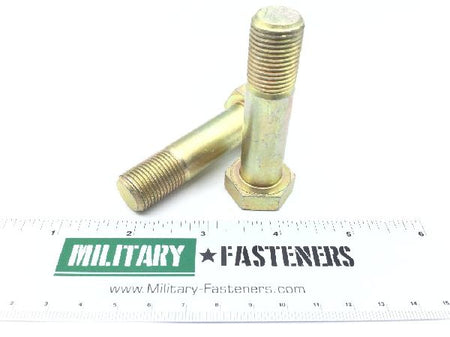

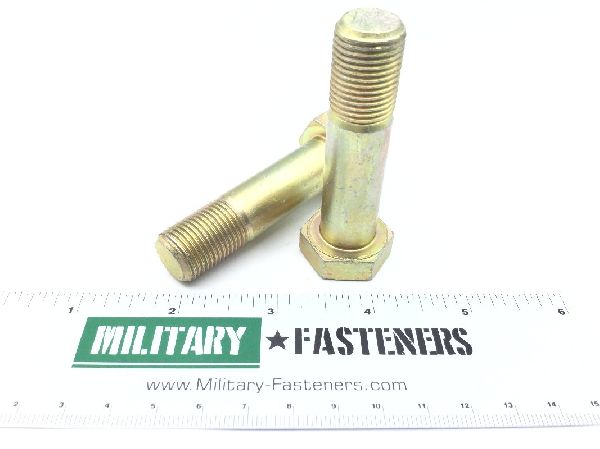

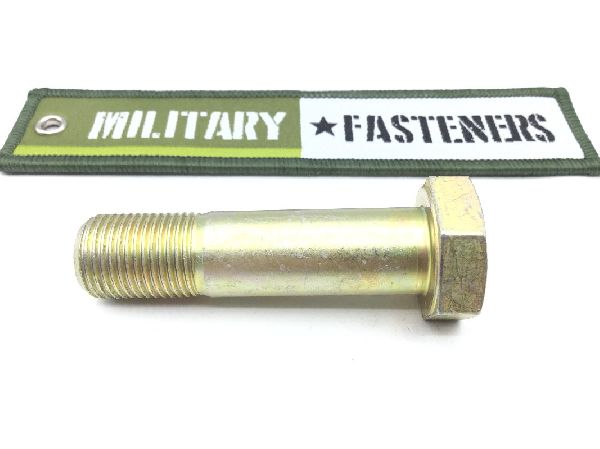

NAS6610-24 Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $20.72

Units per Pack 2

Price per Pack $41.44

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $41.44

Add item to quote

Head Style

Dished hexagon

Material

Steel comp

Surface Treatment

Type 2 class 2 federal specification single treatment response qq-p-416

Thread Class

Fastener Length: Between 2.387 inches and 2.417 inches
Grip Diameter: Between 0.6230 inches and 0.6240 inches
Grip Length: Between 1.490 inches and 1.510 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.312 inches and 0.327 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams 6322 assn standard 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6610 professional/industrial association standard
Surface Finish: 32.0 microinches surface of head
Thread Diameter: 0.625 inches
Thread Direction: Right-hand
Thread Length: Between 0.877 inches and 0.927 inches
Thread Qty Per Inch (tpi): 18
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.928 inches and 0.940 inches
