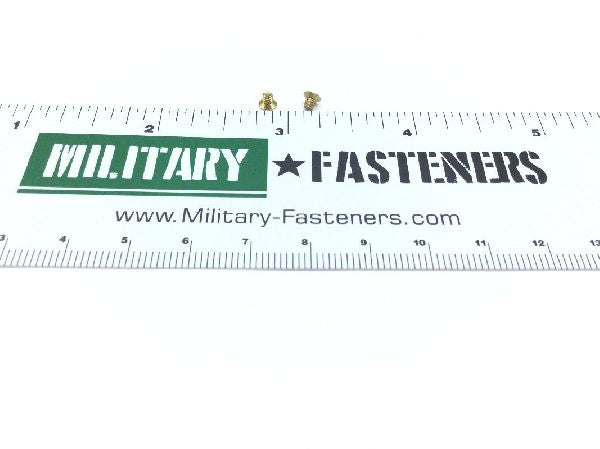

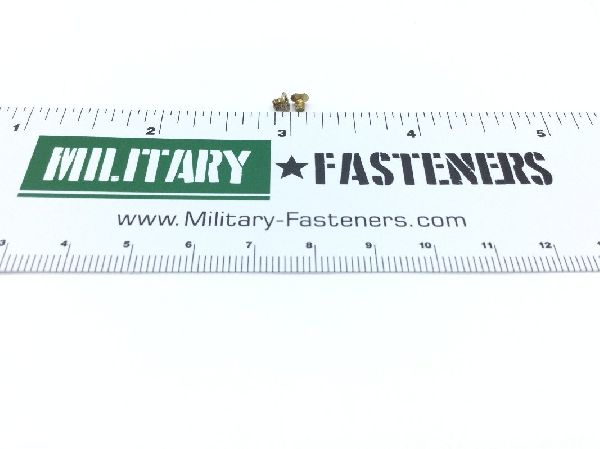

NAS662-2R2 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: 0.125 inches
Head Height: Between 0.156 inches and 0.172 inches
Internal Drive Style: Cross recess type 1
Screw Material: Steel comp 1010
Screw Material Specification: Qq-s-630 federal specification single material response
Screw Surface Treatment: Cadmium and chromate
Specification Data: 80205-nas662 professional/industrial association standard
Thread Diameter: 0.086 inches
Thread Direction: Right-hand
Thread Length: 0.087 inches
Thread Qty Per Inch (tpi): 56
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.156 inches and 0.172 inches
