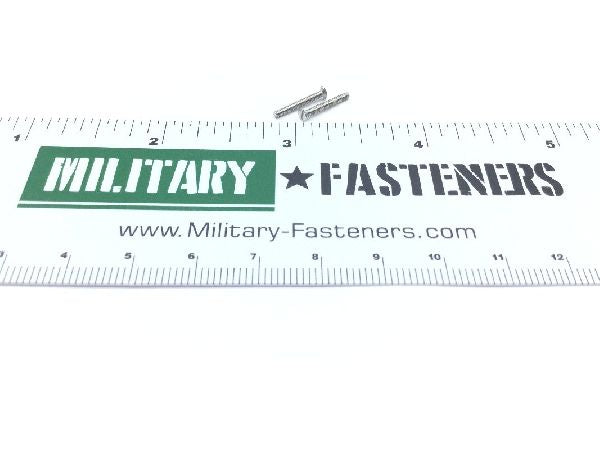

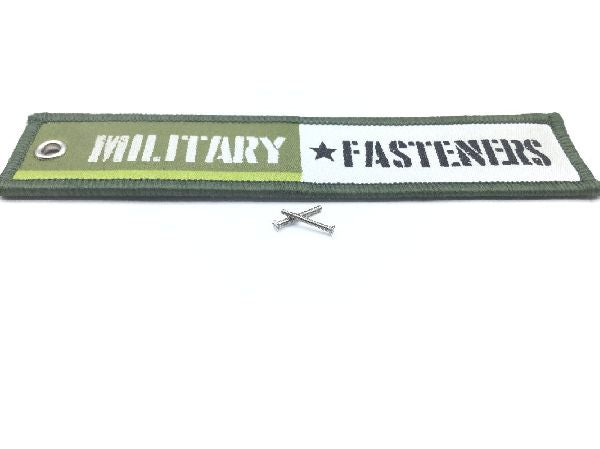

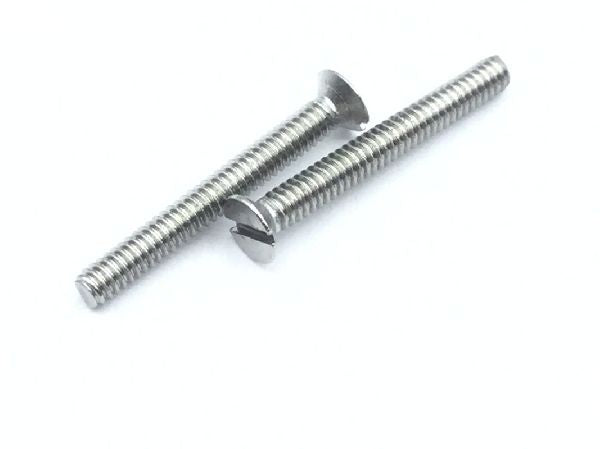

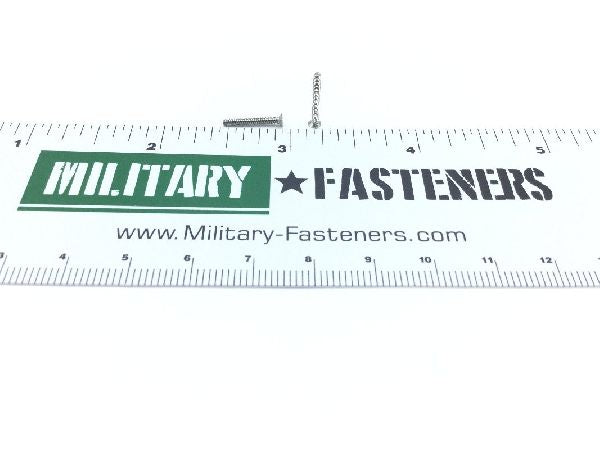

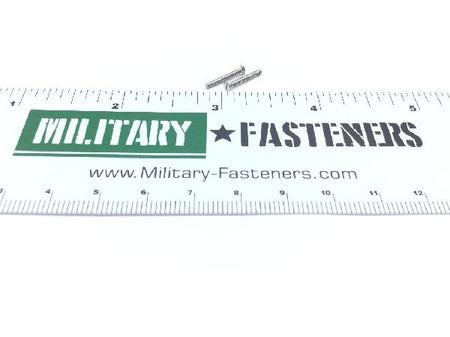

NAS662C0-8 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.57

Units per Pack 50

Price per Pack $28.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $28.50

Add item to quote

Head Style

Flat countersunk

Thread Class

Thread Quantity Per Inch (tpi)

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.470 inches and 0.500 inches
Internal Drive Style: Slot
Screw Material: Steel comp 321 or steel comp 347 or steel comp 303 or steel comp 303se or steel comp 302
Screw Surface Treatment: Passivate
Screw Surface Treatment Specification: Qq-p-35 federal specification single treatment response
Specification Data: 80205-nas662 professional/industrial association standard
Thread Diameter: 0.060 inches
Thread Direction: Right-hand
Thread Length: Between 0.426 inches and 0.475 inches
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.105 inches and 0.119 inches
