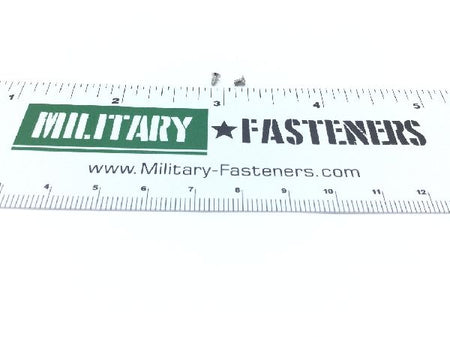

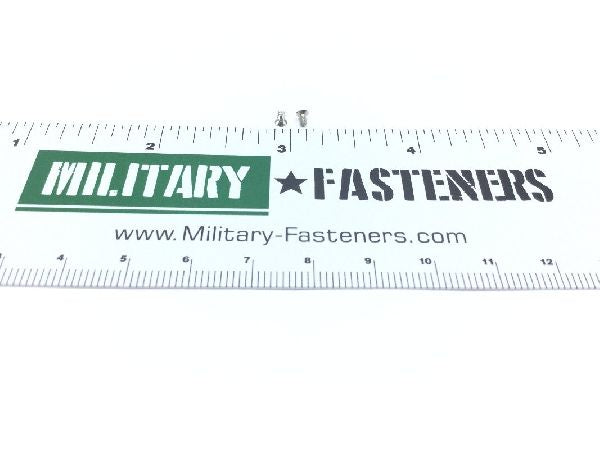

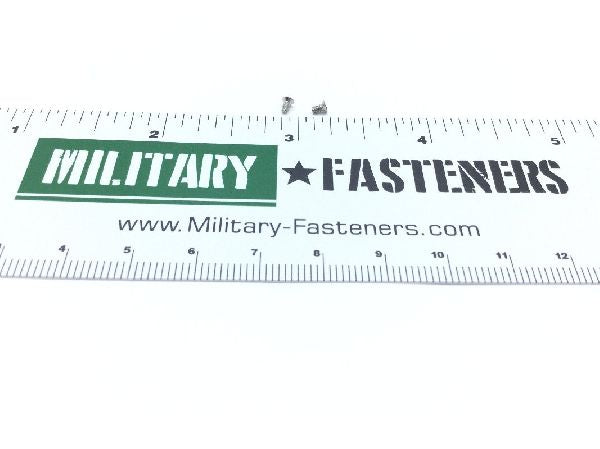

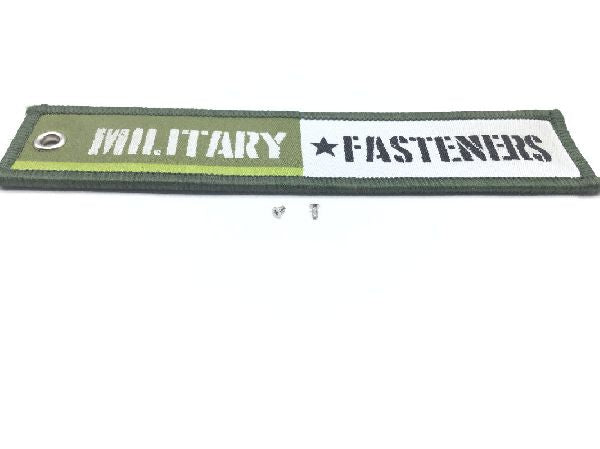

NAS662C0R2 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.97

Units per Pack 50

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.094 inches and 0.125 inches
Internal Drive Style: Slot
Min. Tensile Strength (psi): 80000 pounds per square inch
Screw Material: Steel comp 302 or steel comp 303 or steel comp 321 or steel comp 347
Screw Surface Treatment: Passivate
Screw Surface Treatment Specification: Qq-p-35 federal specification single treatment response
Thread Diameter: 0.060 inches
Thread Direction: Right-hand
Thread Length: 0.125 inches
Thread Qty Per Inch (tpi): 80
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.105 inches and 0.119 inches
