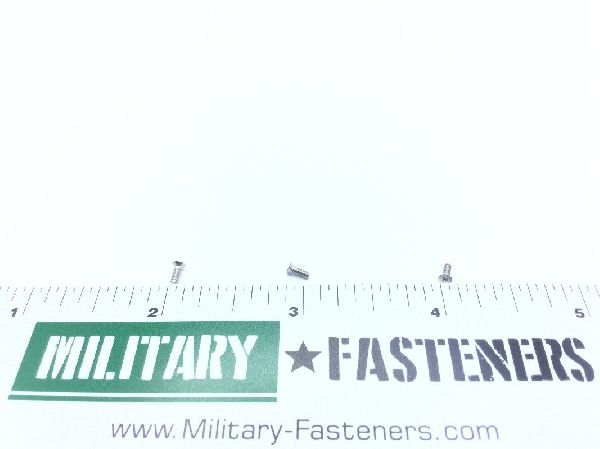

NAS662C0R3 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.27

Units per Pack 100

Price per Pack $27.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $27.00

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.158 inches and 0.188 inches
Internal Drive Style: Cross recess type ii
Screw Material: Steel comp 321 or steel comp 347 or steel comp 303se or steel comp 302
Screw Surface Treatment: Passivate
Screw Surface Treatment Specification: Qq-p-35 federal specification single treatment response
Specification Data: 80205-nas662 professional/industrial association standard
Thread Diameter: 0.060 inches
Thread Direction: Right-hand
Thread Length: Between 0.108 inches and 0.169 inches
Thread Qty Per Inch (tpi): 80
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.105 inches and 0.119 inches
