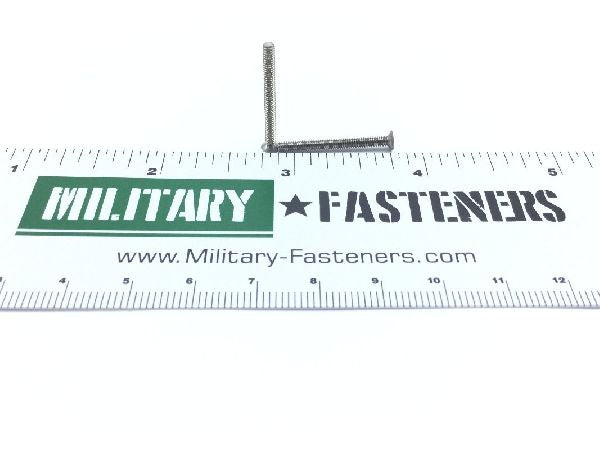

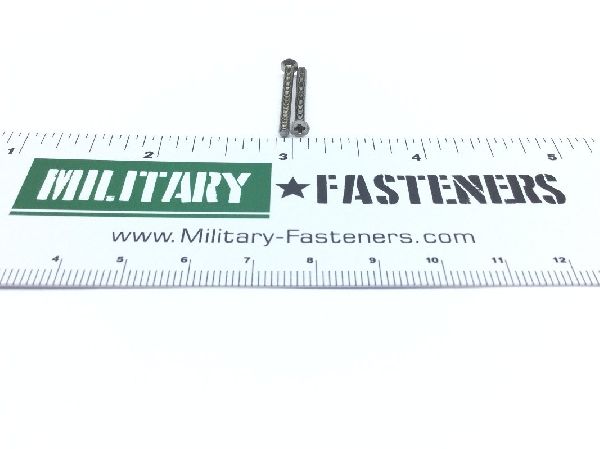

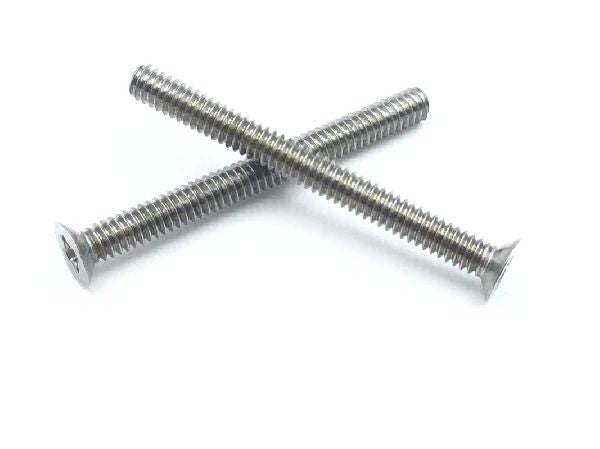

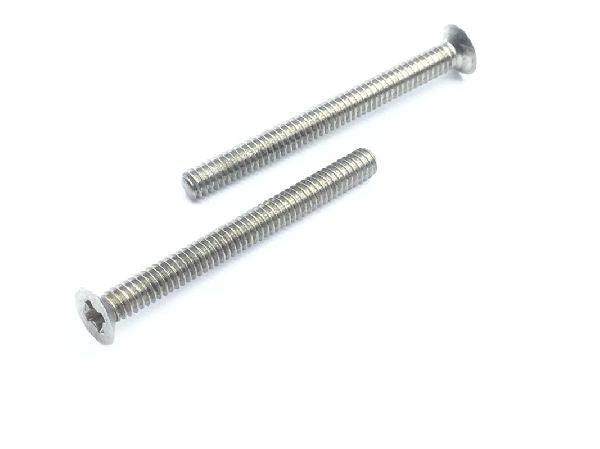

NAS662C2R15 Machine Screw
- Product Series
- NAS
- ECCN
- 9A991
- Schedule
- 7318.15.2091
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Countersink Angle
- Between 99.0 degrees and 101.0 degrees
- Fastener Length
- Between 0.908 inches and 0.938 inches
- Internal Drive Style
- Cross recess type 1
- Min. Tensile Strength (psi)
- 80000 pounds per square inch
- Screw Material
- Steel comp
- Screw Material Specification
- Mil-s-7720 military specification 1st material response or qq-s-764 federal specification 2nd material response or qq-s-763 federal specification 3rd material response or qq-s-763 federal specification 4th material response
- Screw Surface Treatment
- Passivate
- Screw Surface Treatment Specification
- Qq-p-35 federal specification single treatment response
- Specification Data
- 80205-nas662 professional/industrial association standard
- Thread Diameter
- 0.086 inches
- Thread Direction
- Right-hand
- Thread Length
- Between 0.836 inches and 0.909 inches
- Thread Qty Per Inch (tpi)
- 56
- Thread Series Designator
- Unc (coarse thread)
- Head Diameter
- Between 0.156 inches and 0.175 inches
