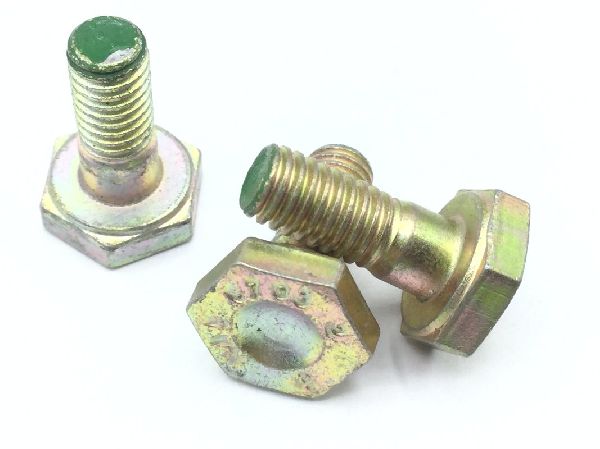

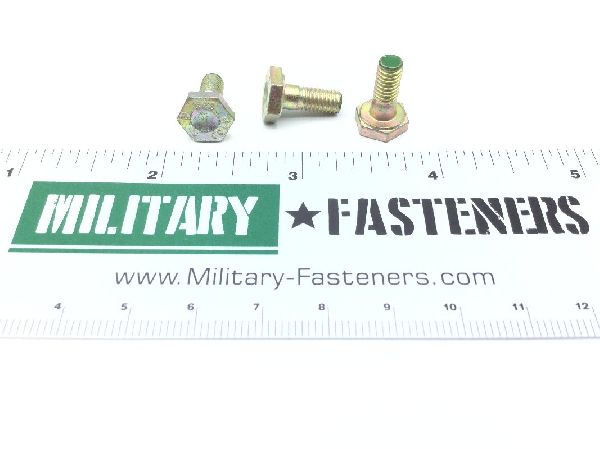

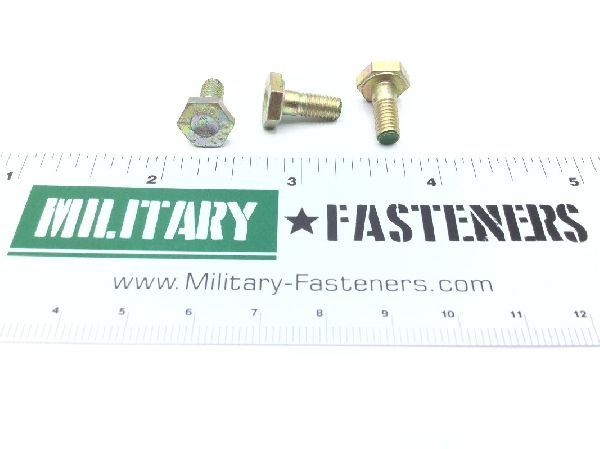

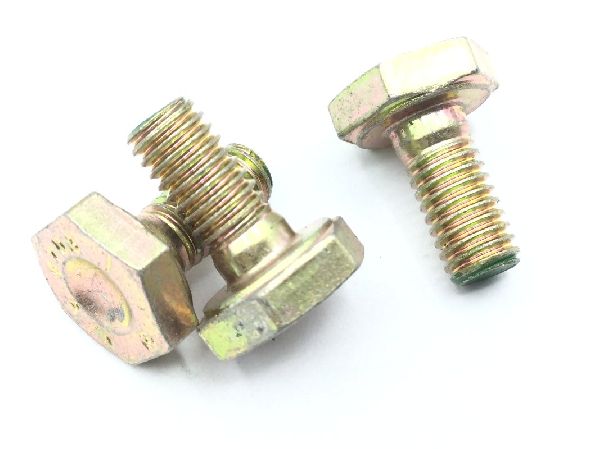

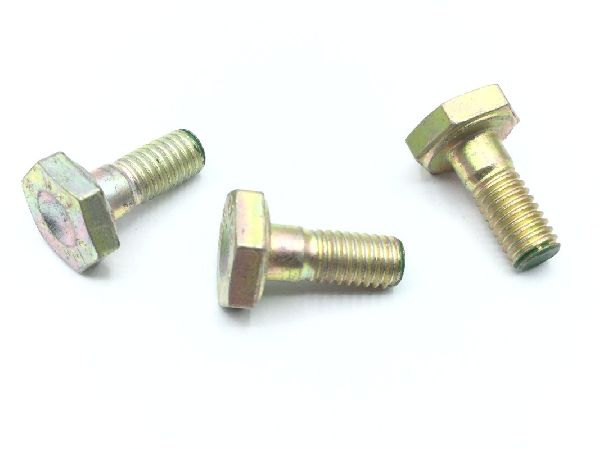

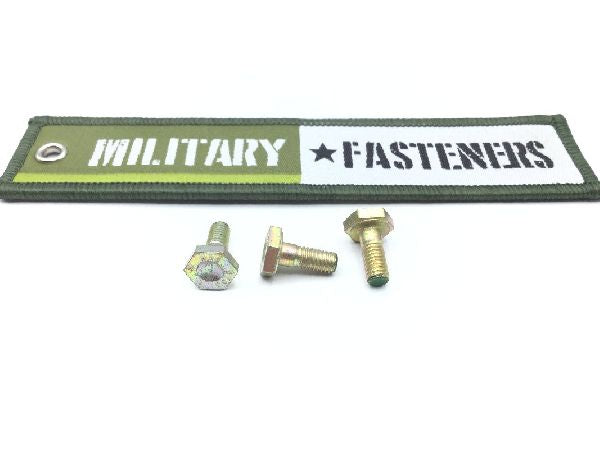

NAS6703-2 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $1.66

Units per Pack 20

Price per Pack $33.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $33.20

Add item to quote

Head Style

Dished hexagon

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.460 inches and 0.480 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 0.115 inches and 0.135 inches
Head Height: Between 0.110 inches and 0.125 inches
Material Specification: Ams 5731 assn standard single material response or ams 5737 assn standard single material response
Specification Data: 80205-nas6703-2 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.345 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.367 inches and 0.376 inches
