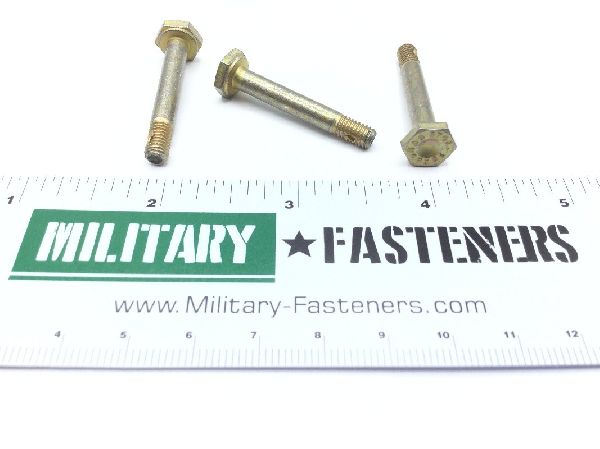

NAS6703D15 Shear Bolt

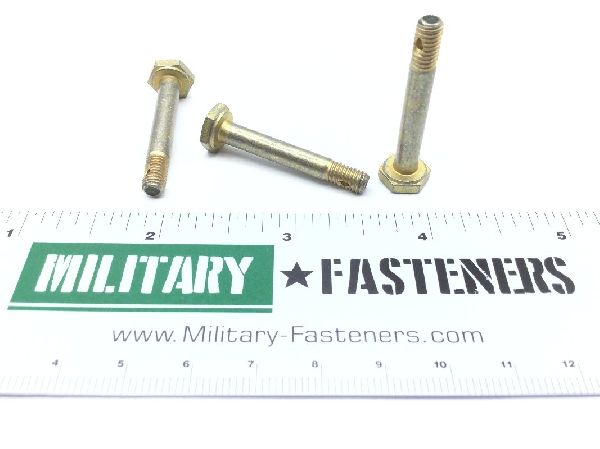

NAS6703D15 Shear Bolt (2)

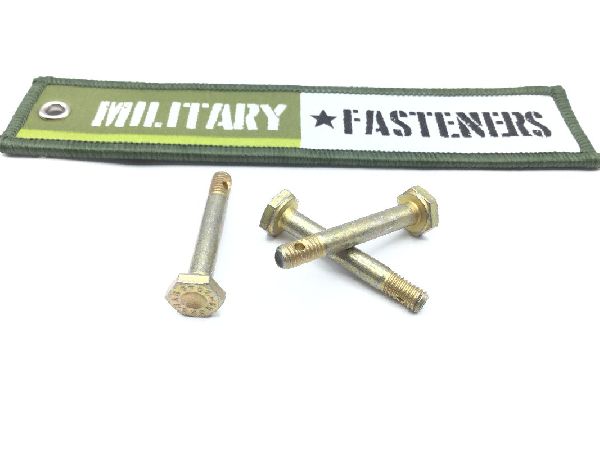

NAS6703D15 Shear Bolt (3)

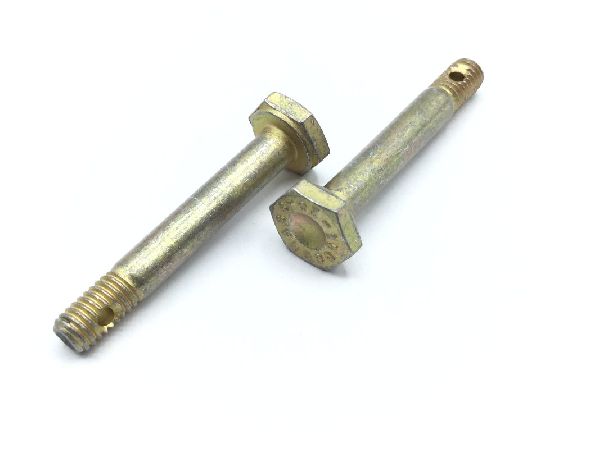

NAS6703D15 Shear Bolt (4)

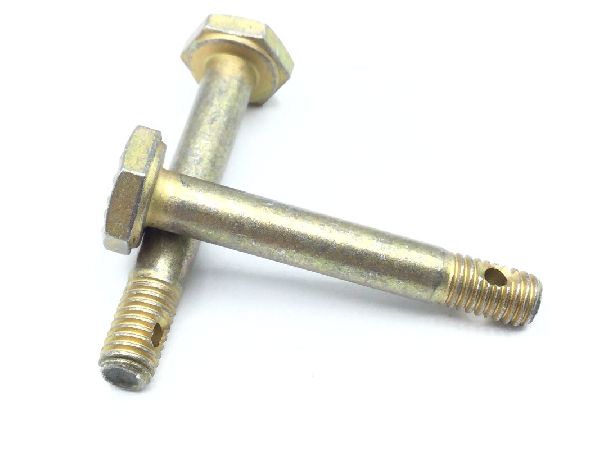

NAS6703D15 Shear Bolt (5)

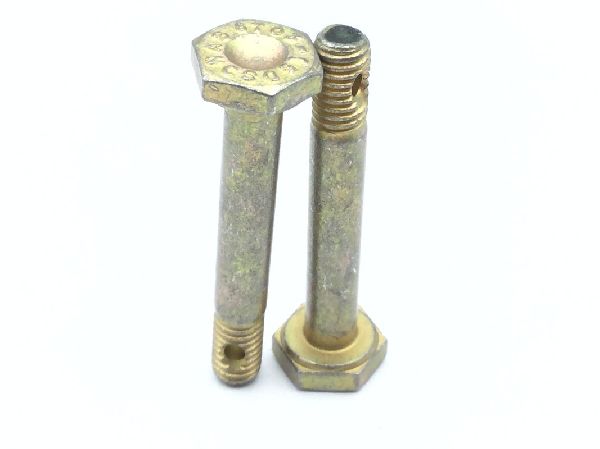

NAS6703D15 Shear Bolt (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS6703D15 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $22.52

Units per Pack 5

Price per Pack $112.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $112.60

Add item to quote

Head Style

Hexagon

Material

Stainless Steel

Surface Treatment

class 2 federal specification single treatment response type ii qq-p-416

Thread Class

3a

Fastener Length: 1.283 inches
Grip Diameter: Between 0.1890 inches and 0.1895 inches
Grip Length: 0.938 inches
Head Height: 0.110 inches
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.345 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.410 inches
