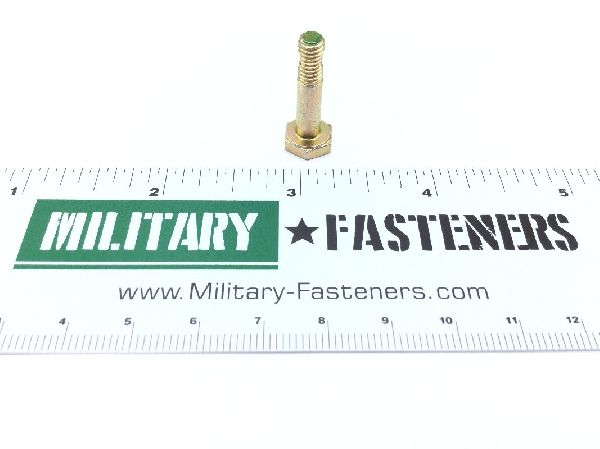

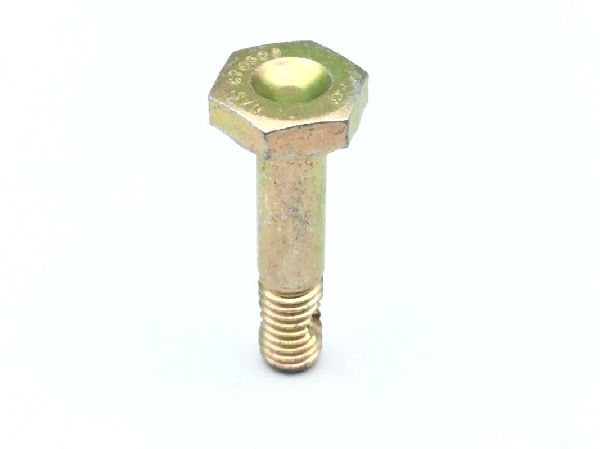

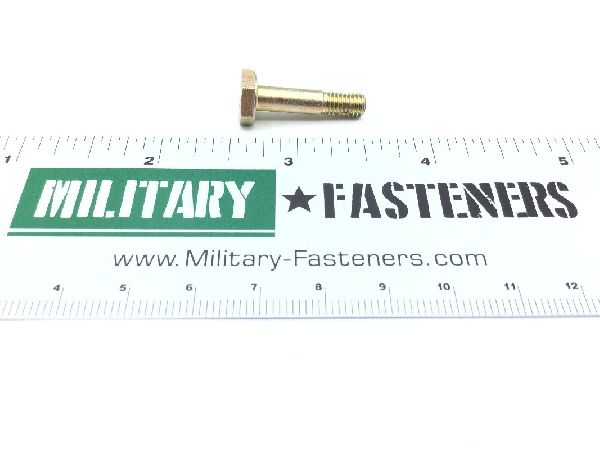

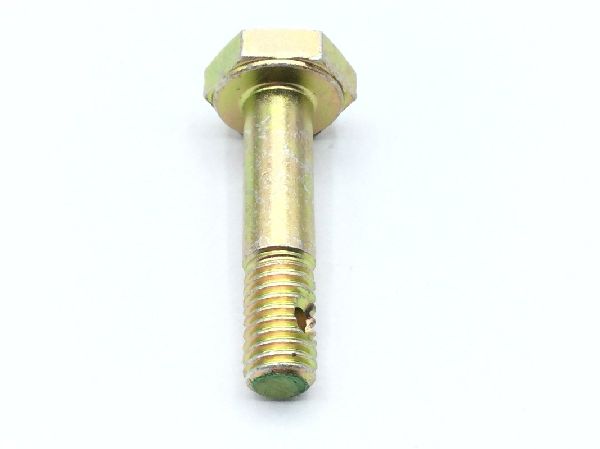

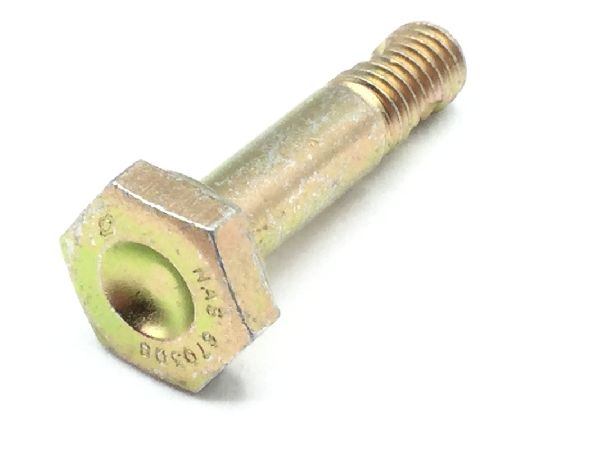

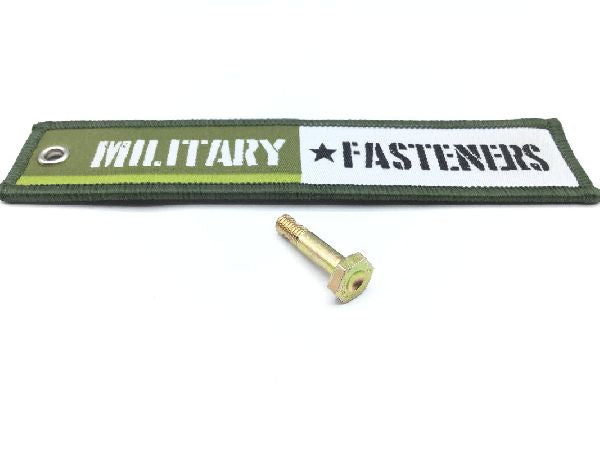

NAS6703D8 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $20.17

Units per Pack 2

Price per Pack $40.34

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $40.34

Add item to quote

Head Style

Dished hexagon

Material

Iron alloy 660

Surface Treatment

type 2 cl 2 federal specification single treatment response qq-p-416

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 0.666 inches first hole and 0.696 inches first hole
Fastener Length: Between 0.830 inches and 0.860 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 0.490 inches and 0.510 inches
Head Height: Between 0.110 inches and 0.125 inches
Material Specification: Ams 5731 assn standard single material response or ams 5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.070 inches first hole and 0.080 inches first hole
Specification Data: 80205-nas6703 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.320 inches and 0.370 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.367 inches and 0.376 inches
