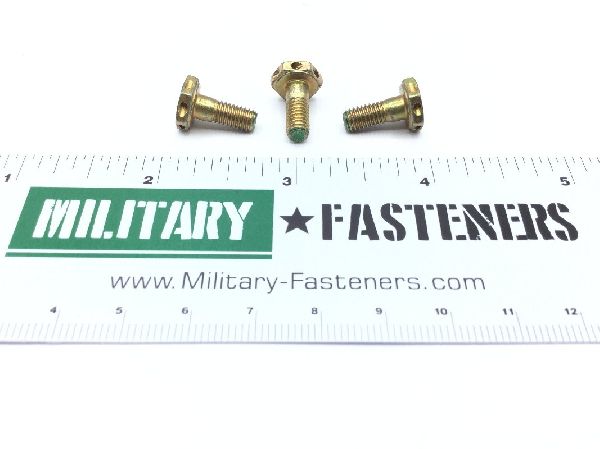

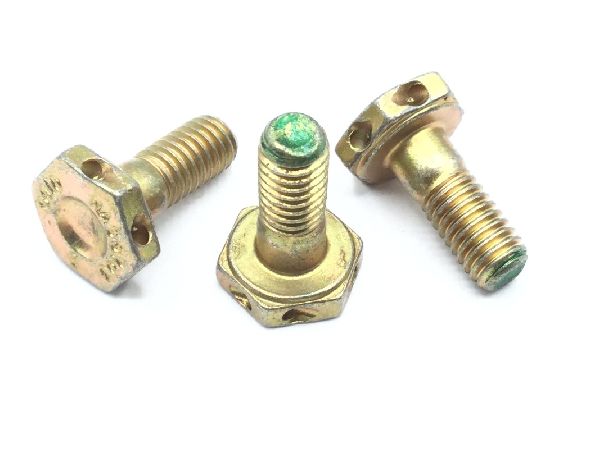

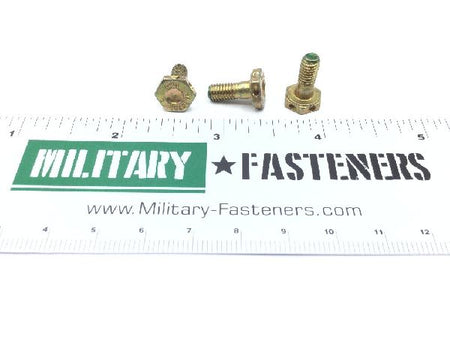

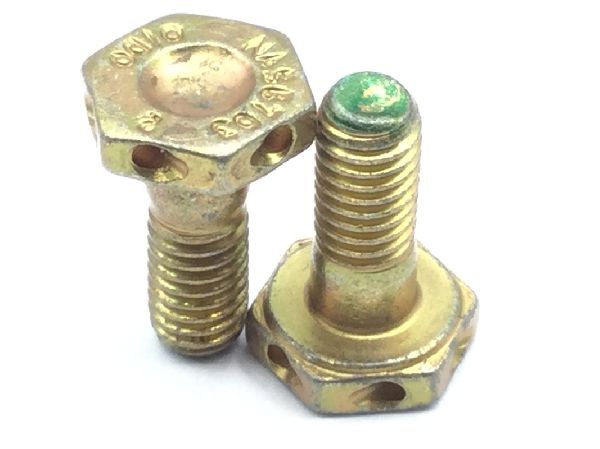

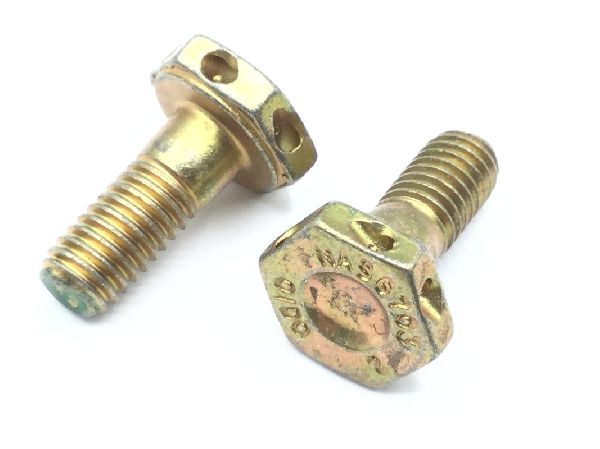

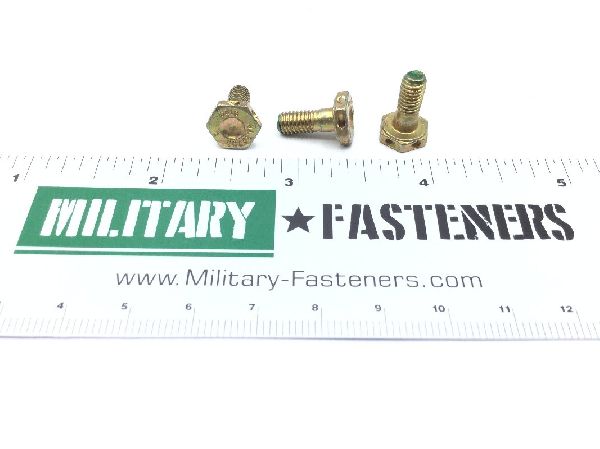

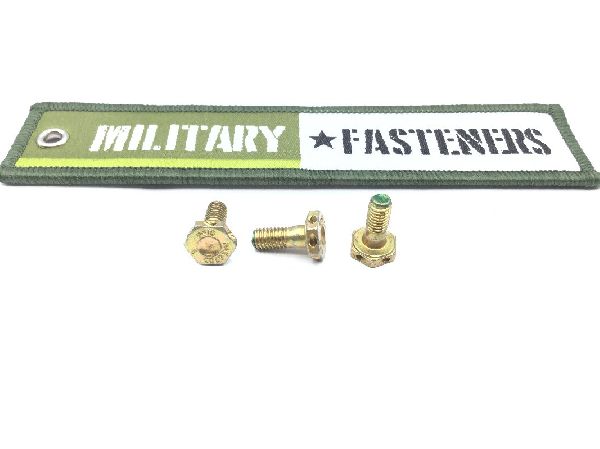

NAS6703H2 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $8.35

Units per Pack 5

Price per Pack $41.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $41.75

Add item to quote

Head Style

Dished hexagon

Material

Iron alloy 660

Criticality Code Justification: Agav
End Application: Nha pre-provisioning support item
Fastener Length: 0.470 inches
Grip Diameter: 0.189 inches
Grip Length: Between 0.115 inches and 0.135 inches
Head Height: Between 0.110 inches and 0.125 inches
Part Name Assigned By Controlling Agency: self-locking and nonlocking long threads a286 cres close tolerence hex head bolt
Thread Direction: Right-hand
Thread Length: 0.345 inches
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.410 inches
