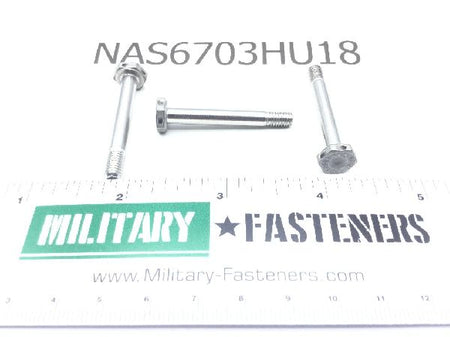

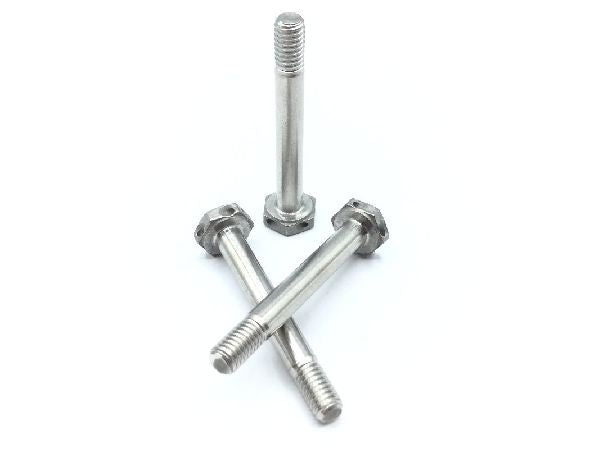

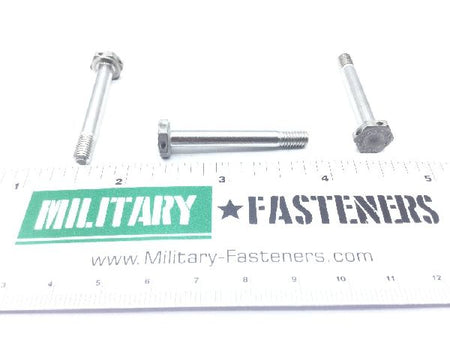

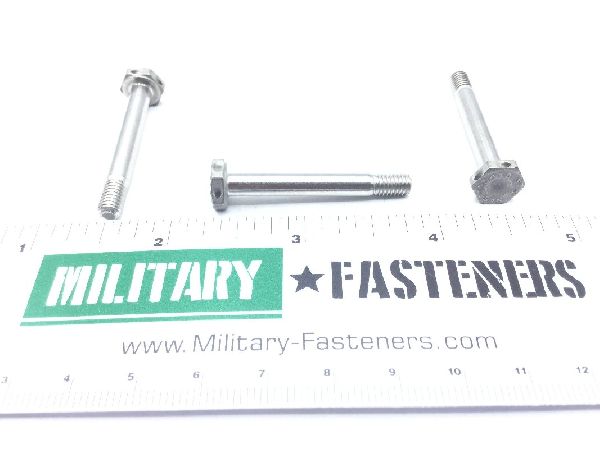

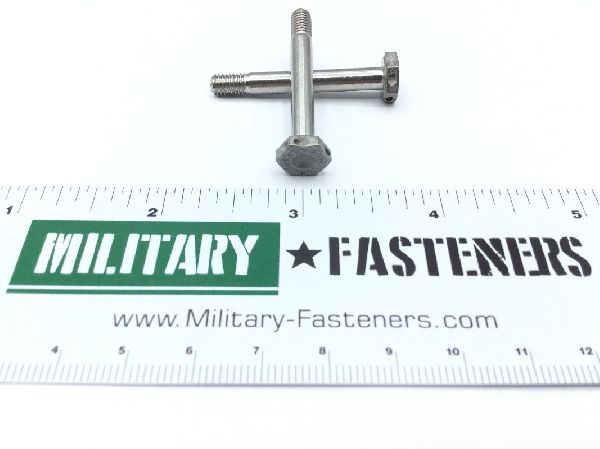

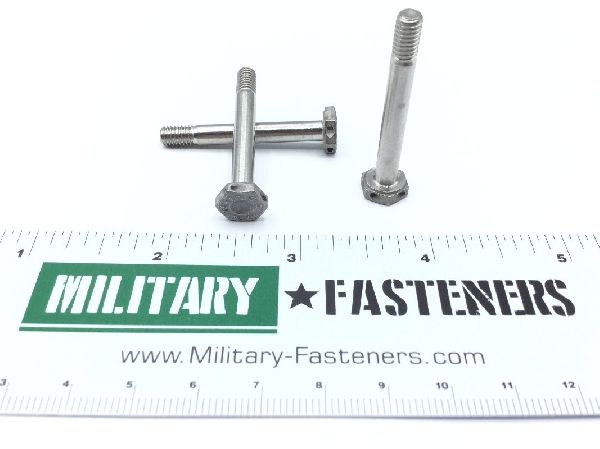

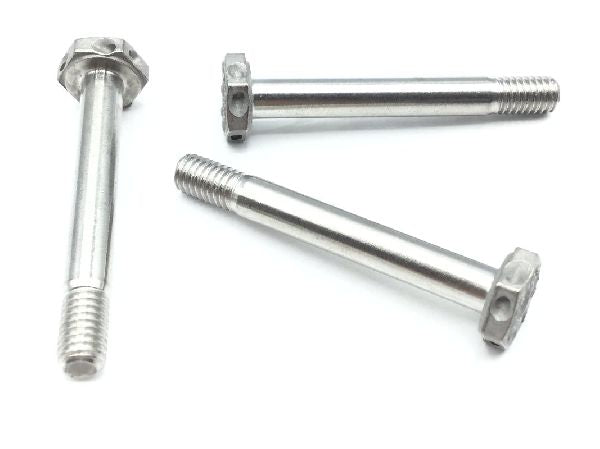

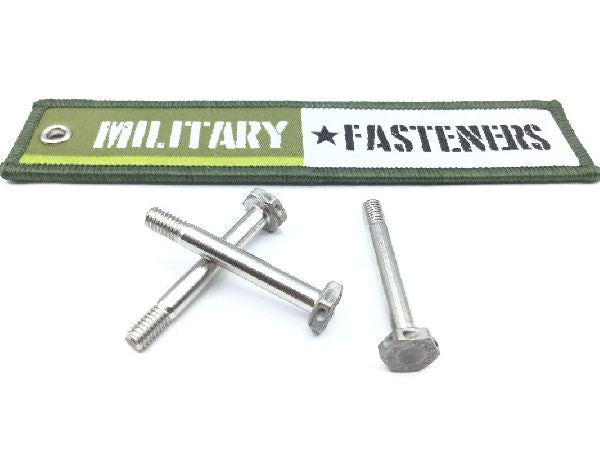

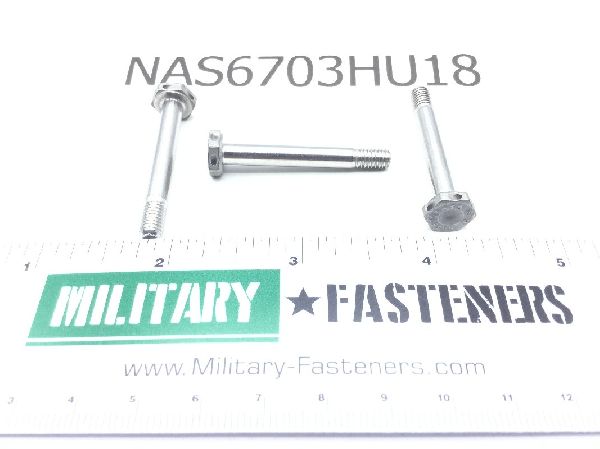

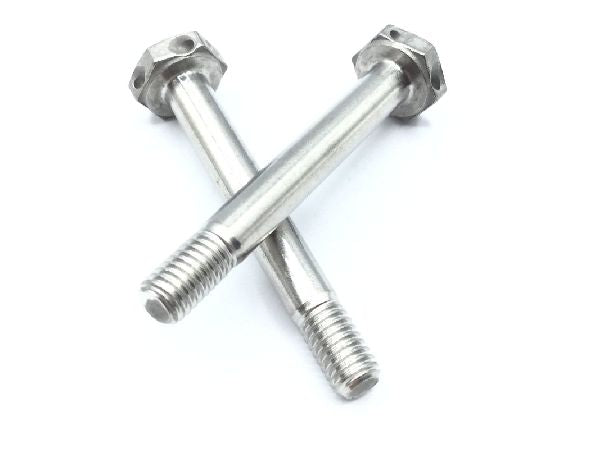

NAS6703HU18 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $22.10

Units per Pack 5

Price per Pack $110.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $110.50

Add item to quote

Head Style

Dished hexagon

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

End Application: C-17a aircraft
Fastener Length: 1.4705 inches
Grip Diameter: Between 0.1890 inches and 0.1895 inches
Grip Length: 1.125 inches
Head Height: Between 0.110 inches and 0.125 inches
Hole Configuration Style: Hexagon longitudinal hole
Hole Quantity: 3
Hole Type: Drilled
Material Specification: Ams5731 assn standard single material response or ams5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Part Name Assigned By Controlling Agency: Shear bolt
Thread Diameter: 0.1900 inches
Thread Direction: Right-hand
Thread Length: 0.345 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.367 inches and 0.376 inches
Hole Diameter: Between 0.046 inches and 0.056 inches
