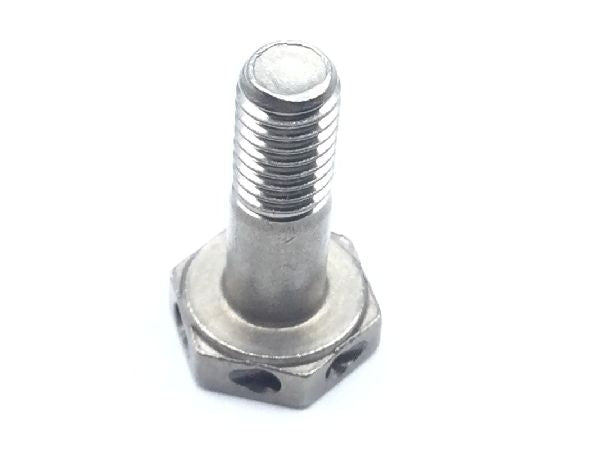

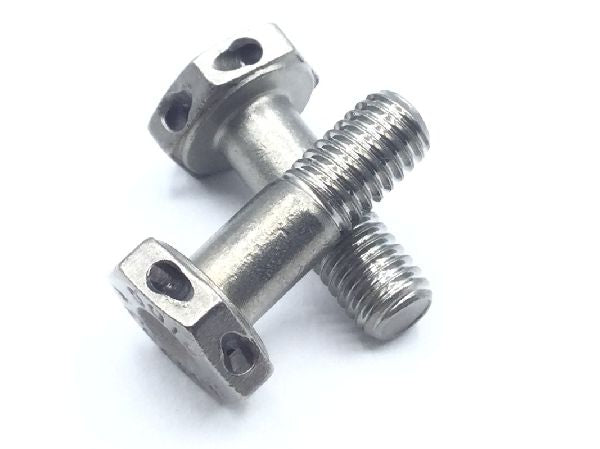

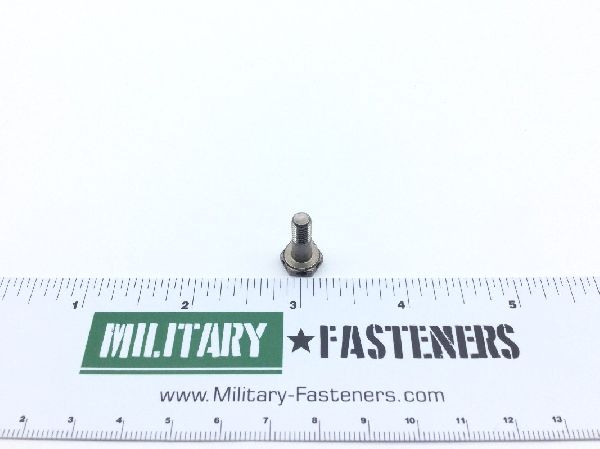

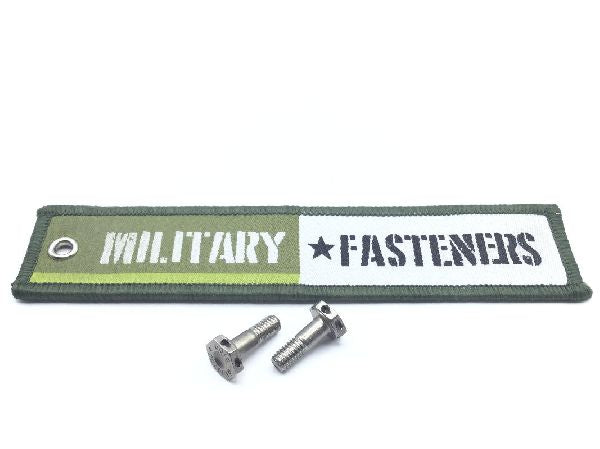

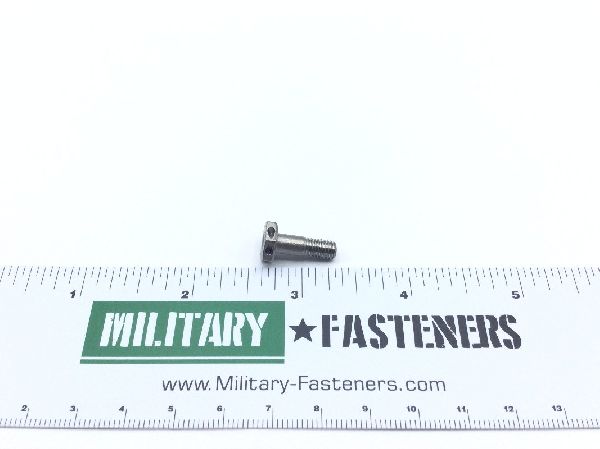

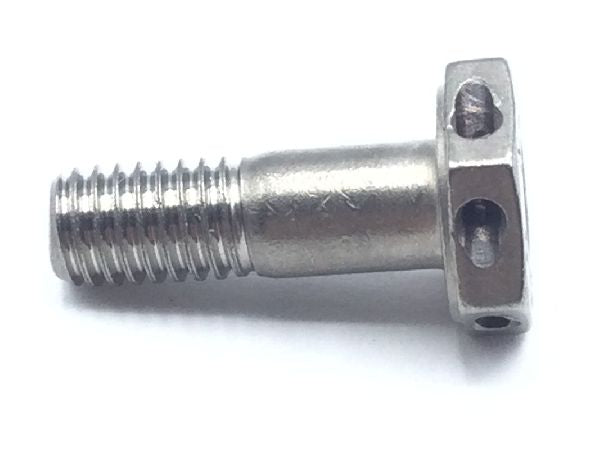

NAS6703HU4 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Dished hexagon

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.58 inches and 0.61 inches
Grip Diameter: Between 0.189 inches and 0.1895 inches
Grip Length: Between 0.24 inches and 0.26 inches
Head Height: Between 0.11 inches and 0.125 inches
Hole Configuration Style: Hexagon longitudinal hole
Hole Quantity: 3
Hole Type: Drilled
Material Specification: Ams5731 assn standard single material response or ams 5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6703 professional/industrial association standard
Thread Diameter: 0.1900 inches
Thread Direction: Right-hand
Thread Length: 0.345 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.367 inches and 0.376 inches
Hole Diameter: Between 0.046 inches and 0.056 inches
