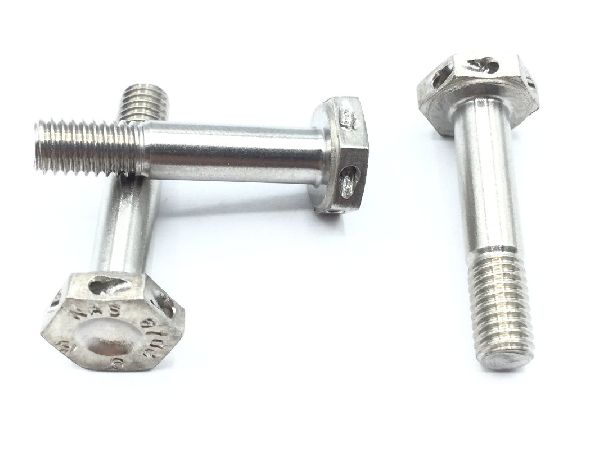

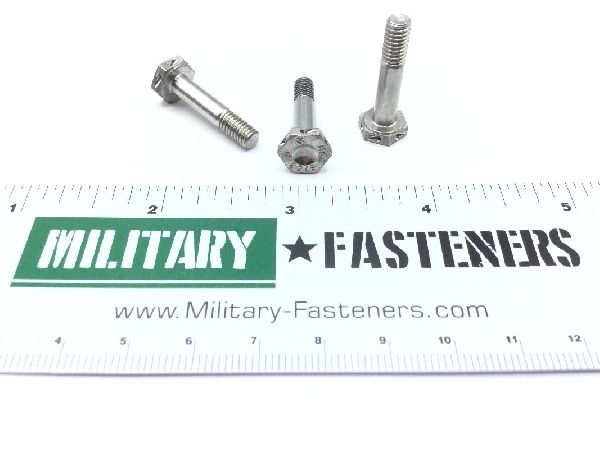

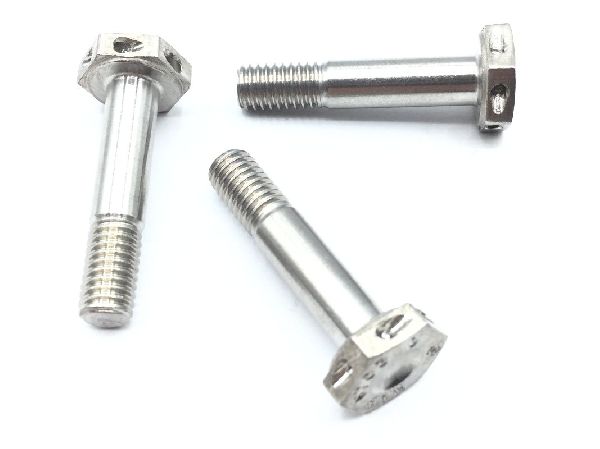

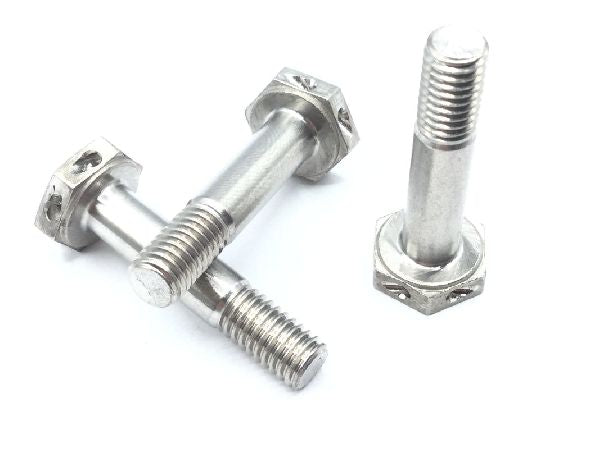

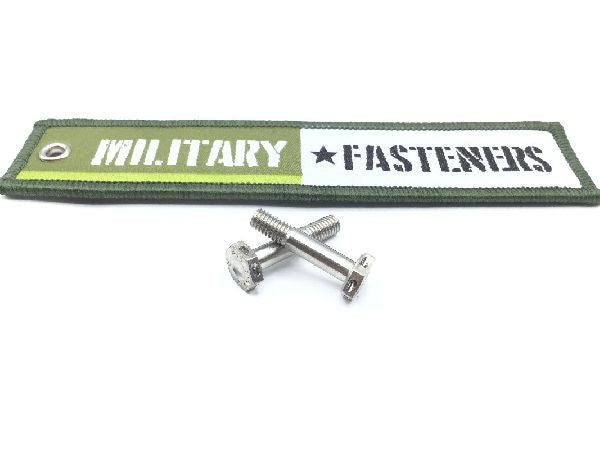

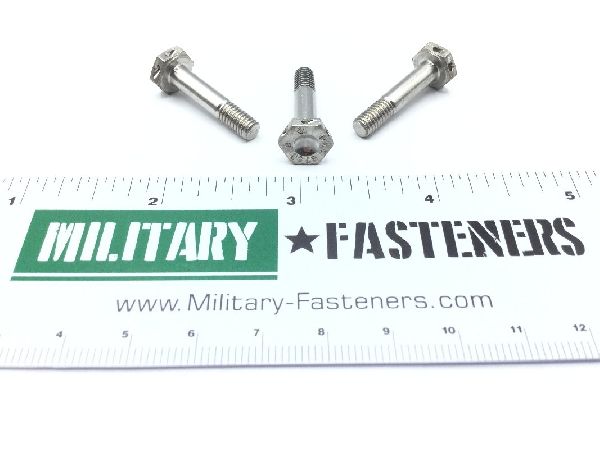

NAS6703HU9 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $5.20

Units per Pack 10

Price per Pack $52.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $52.00

Add item to quote

Head Style

Hexagon

Material

Iron alloy 660

Thread Class

Fastener Length: Between 0.892 inches and 0.922 inches
Grip Diameter: Between 0.189 inches and 0.190 inches
Grip Length: Between 0.552 inches and 0.572 inches
Head Height: Between 0.110 inches and 0.125 inches
Hole Type: Drilled
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.345 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.367 inches and 0.376 inches
Hole Diameter: Between 0.046 inches and 0.056 inches
