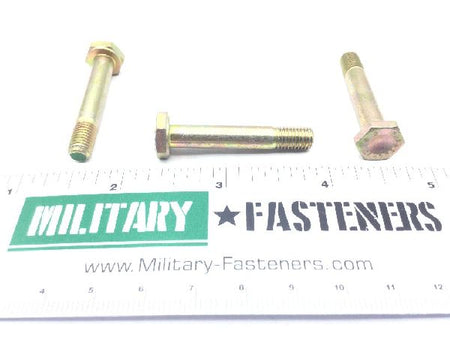

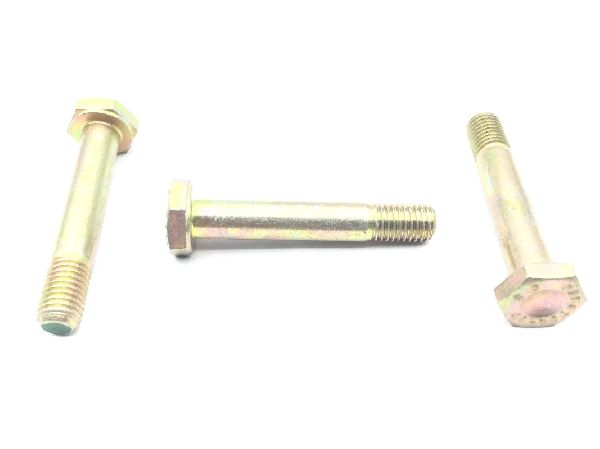

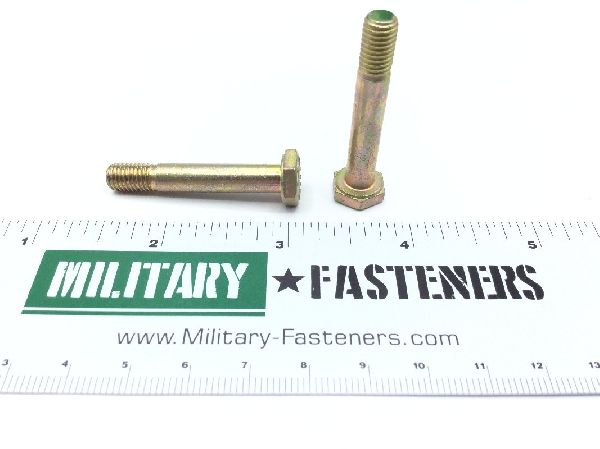

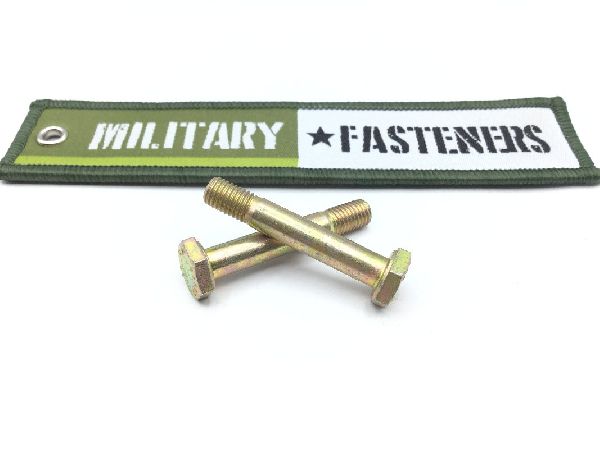

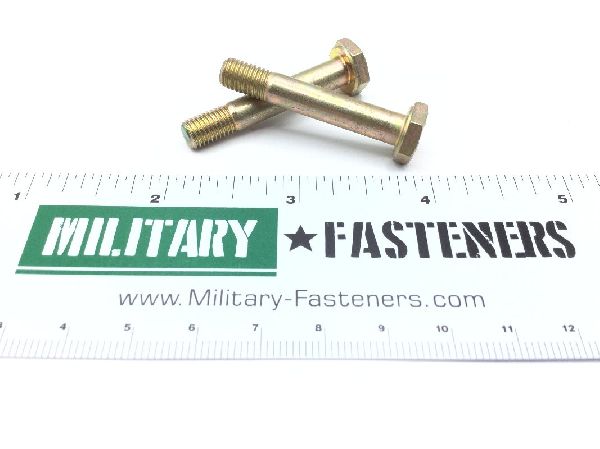

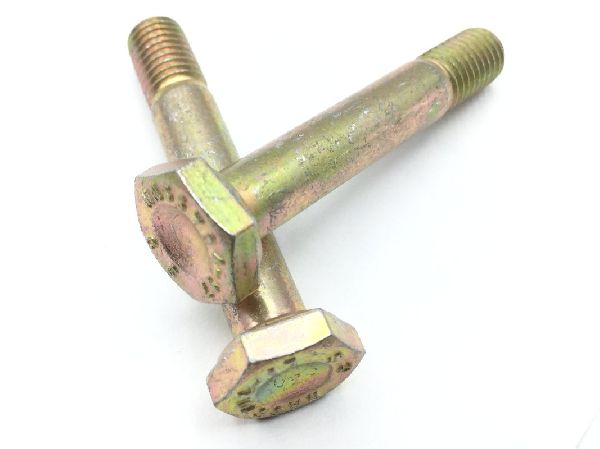

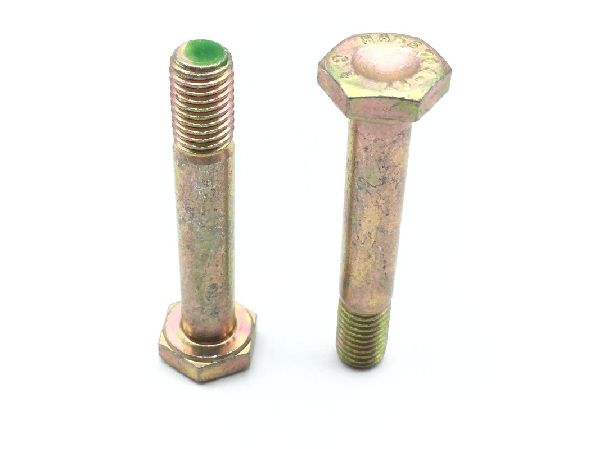

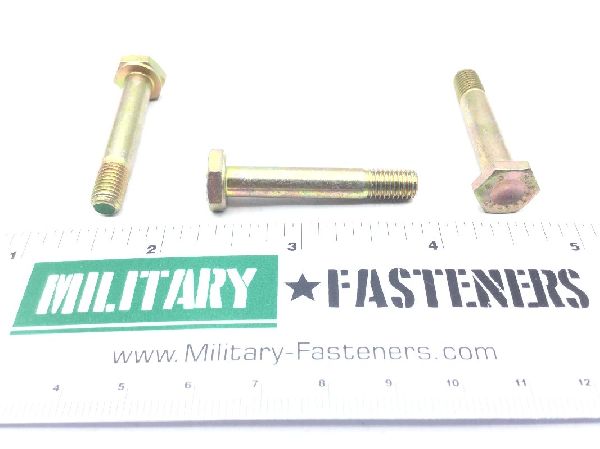

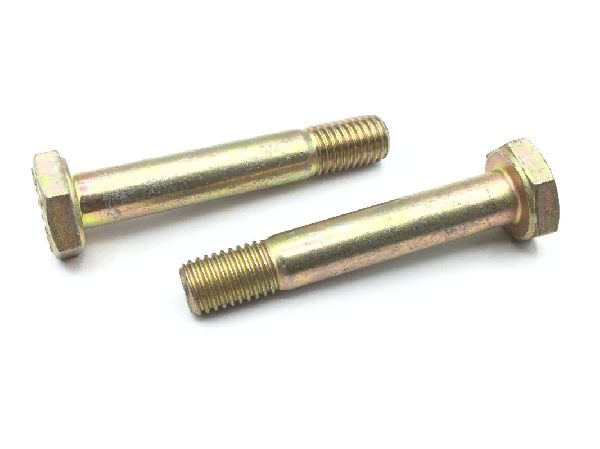

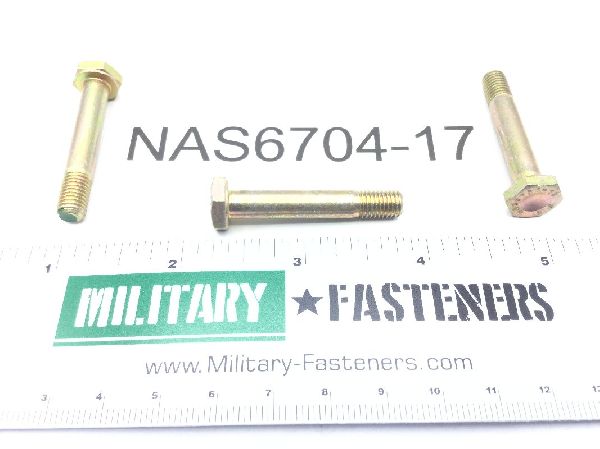

NAS6704-17 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Iron alloy 660

Surface Treatment

Qq-p-416 federal specification single treatment response

Thread Class

Fastener Length: Between 1.472 inches and 1.502 inches
Grip Diameter: Between 0.2490 inches and 0.2495 inches
Grip Length: Between 1.052 inches and 1.072 inches
Head Height: Between 0.125 inches and 0.140 inches
Specification Data: 80205-nas6704-17 professional/industrial association standard
Surface Finish: 32.0 microinches bearing surface of head
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.425 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.480 inches
