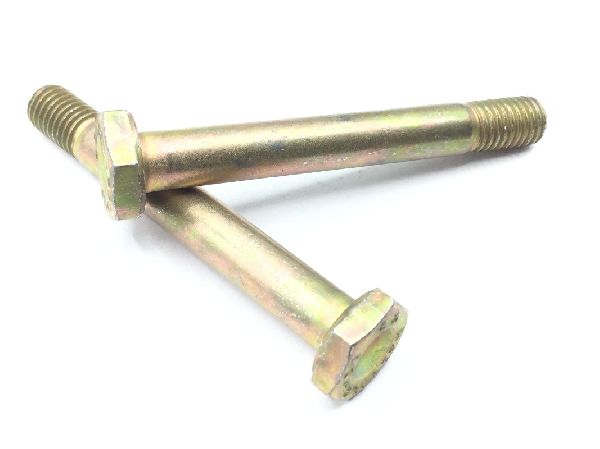

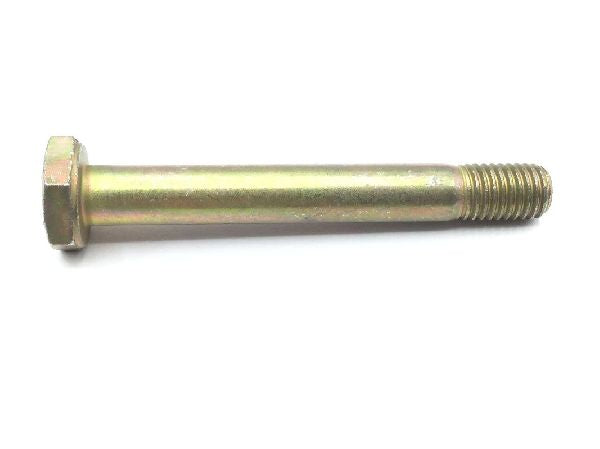

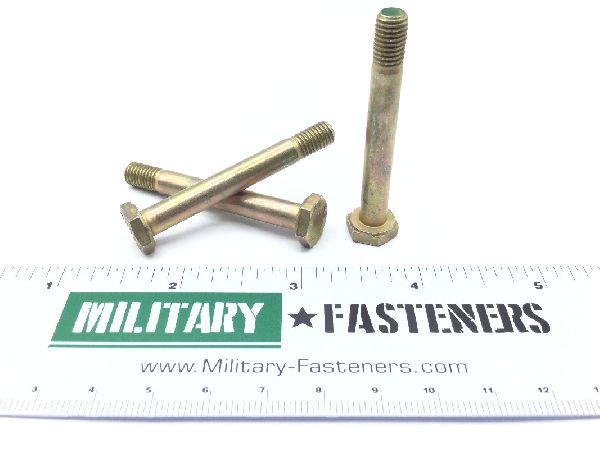

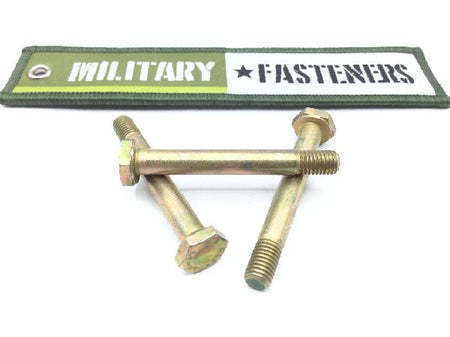

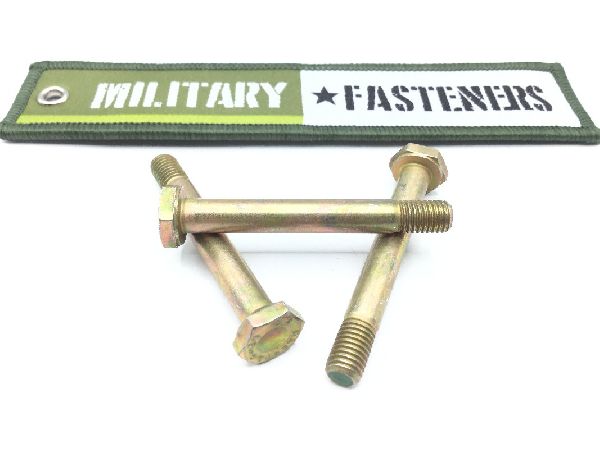

NAS6704-24 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Dished hexagon

Material

Stainless Steel

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 1.750 inches first hole
Fastener Length: 1.938 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: 1.562 inches
Head Height: 0.132 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.070 inches first hole
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.375 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: 0.438 inches
