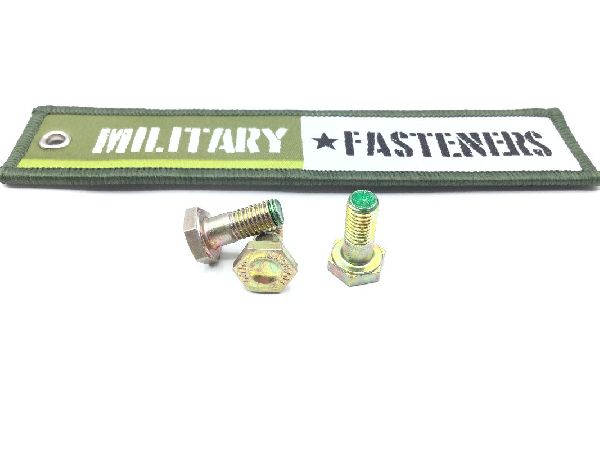

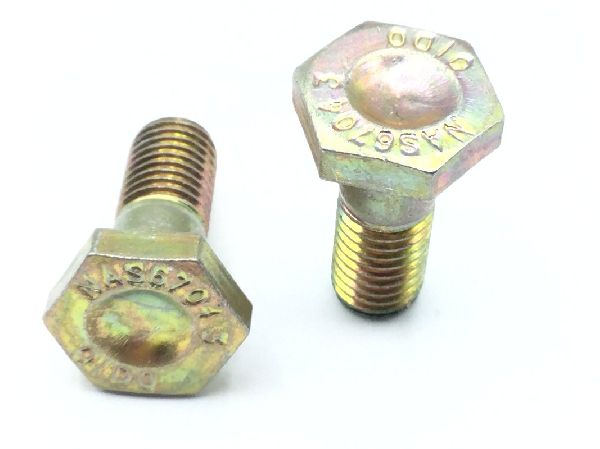

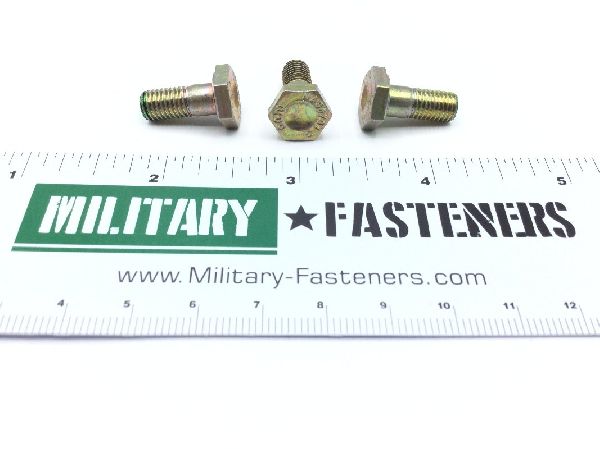

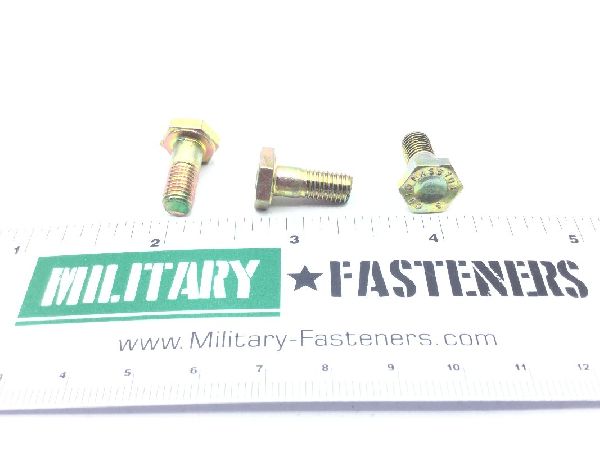

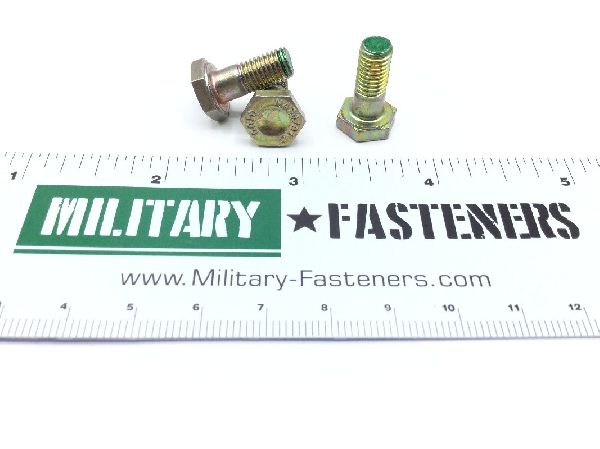

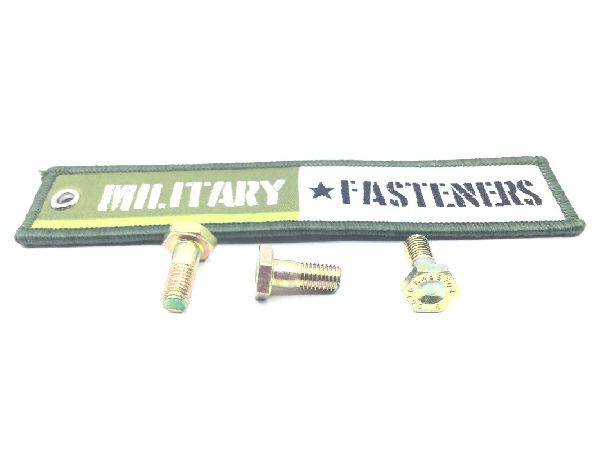

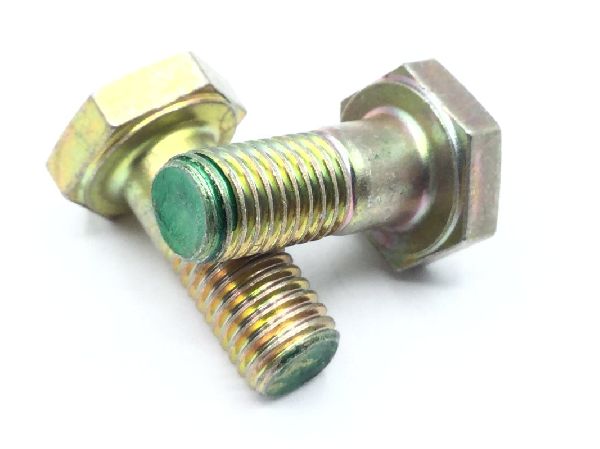

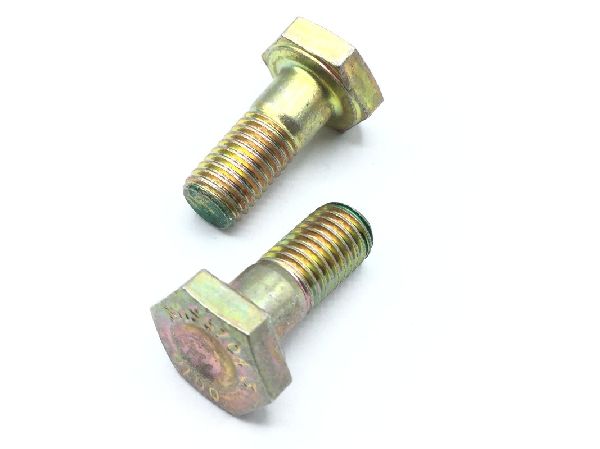

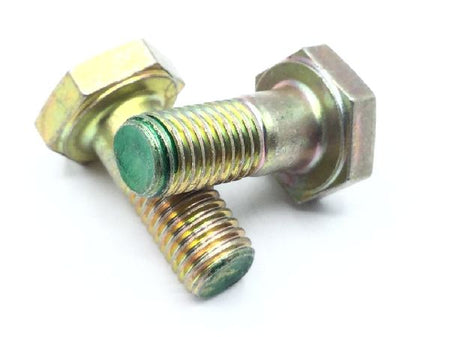

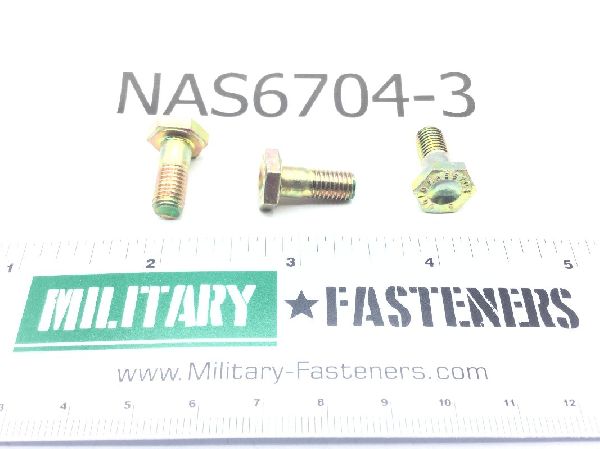

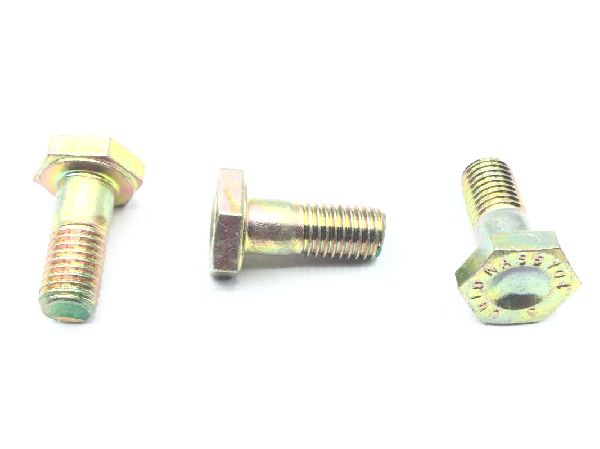

NAS6704-3 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $4.15

Units per Pack 10

Price per Pack $41.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $41.50

Add item to quote

Head Style

Hexagon

Material

Iron alloy 660

Surface Treatment

Qq-p-416 type 2 cl 2 federal specification 1st treatment response or qq-c-320 cl 2 federal specification 2nd treatment response

Thread Class

Fastener Length: Between 0.593 inches and 0.628 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: Between 0.178 inches and 0.198 inches
Head Height: Between 0.125 inches and 0.140 inches
Hole Configuration Style: Hexagon corners
Hole Quantity: 3
Hole Type: Drilled
Material Specification: Ams5731 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6704 professional/industrial association standard
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.400 inches and 0.450 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.430 inches and 0.439 inches
Hole Diameter: 0.051 inches
