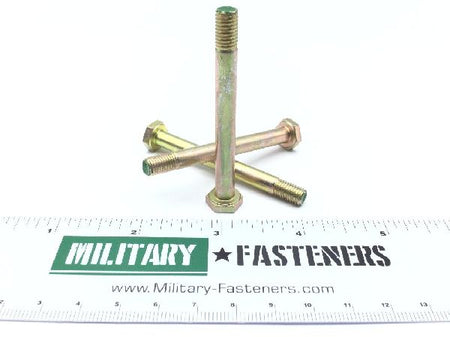

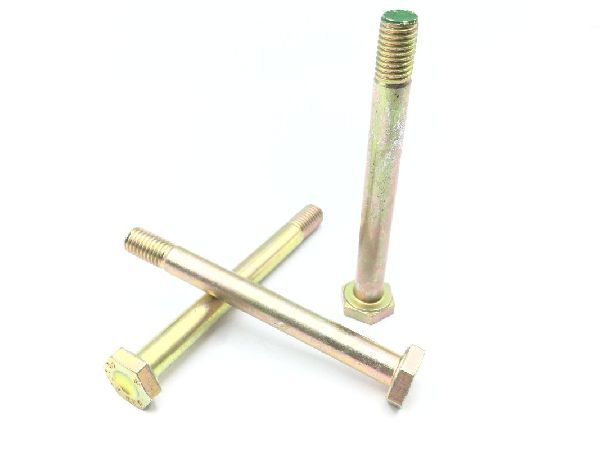

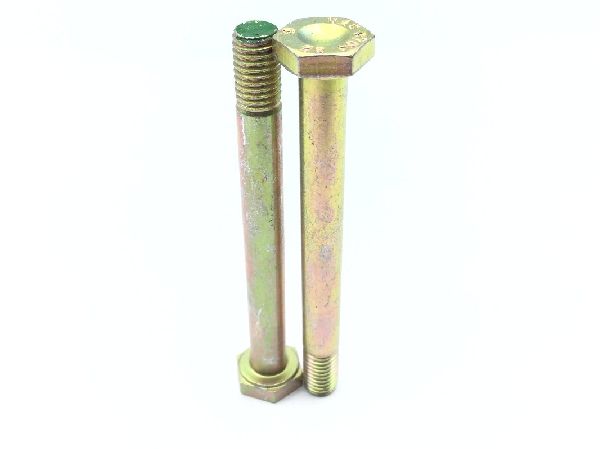

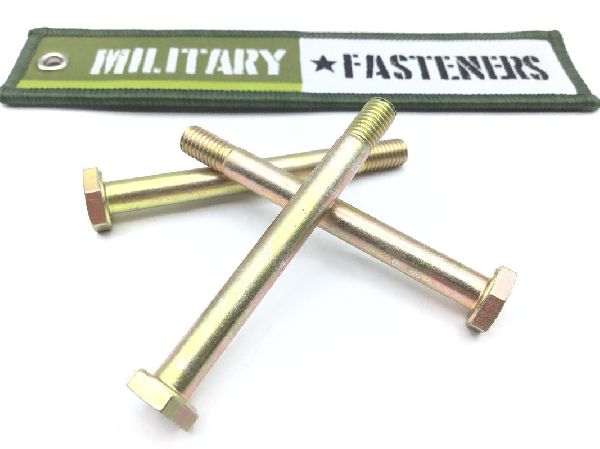

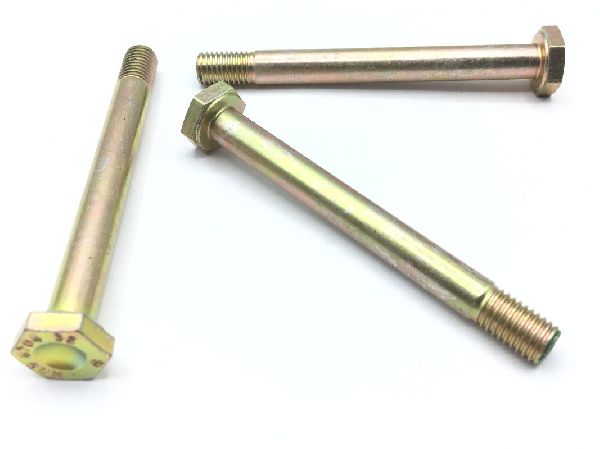

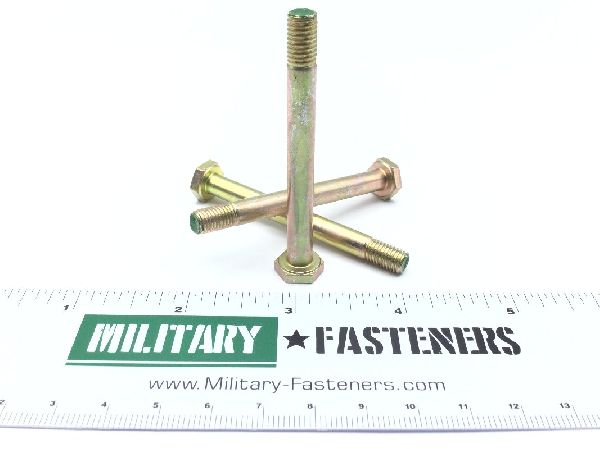

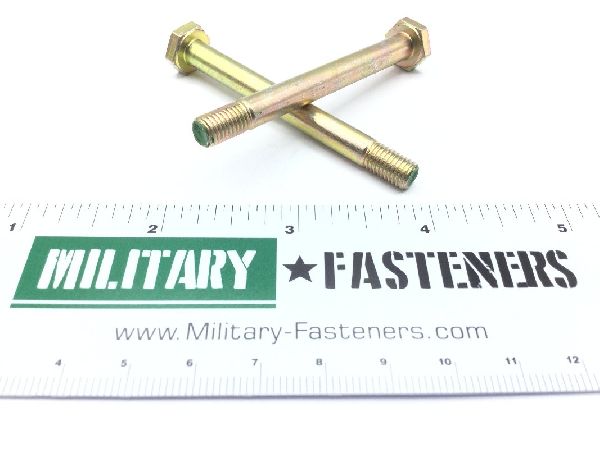

NAS6704-32 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Dished hexagon

Material

Iron alloy 660

Surface Treatment

type 2 cl 2 federal specification single treatment response qq-p-416

Thread Class

Color: Green threads
Fastener Length: Between 2.410 inches and 2.440 inches
Grip Diameter: Between 0.2490 inches and 0.2495 inches
Grip Length: Between 1.990 inches and 2.010 inches
Head Height: Between 0.125 inches and 0.140 inches
Hole Configuration Style: Hexagon corners
Hole Quantity: 3
Hole Type: Drilled
Material Specification: Ams 5731 assn standard single material response or ams 5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6704 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.425 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.429 inches and 0.439 inches
Hole Diameter: Between 0.046 inches and 0.056 inches
