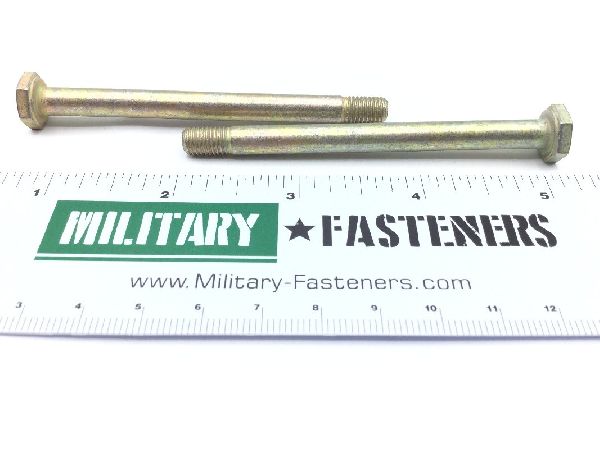

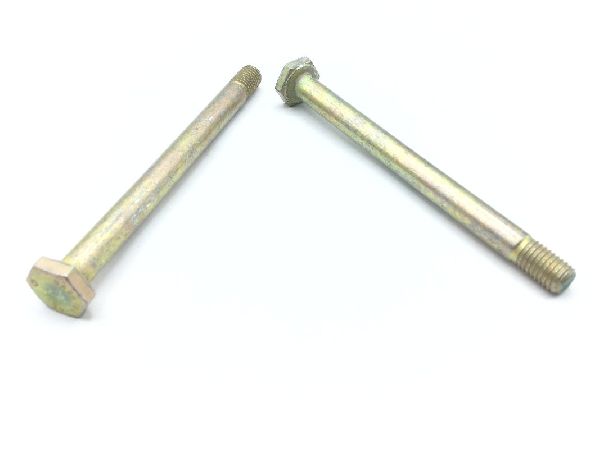

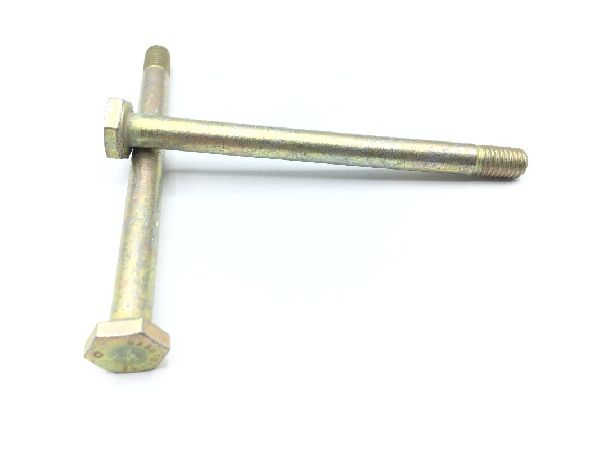

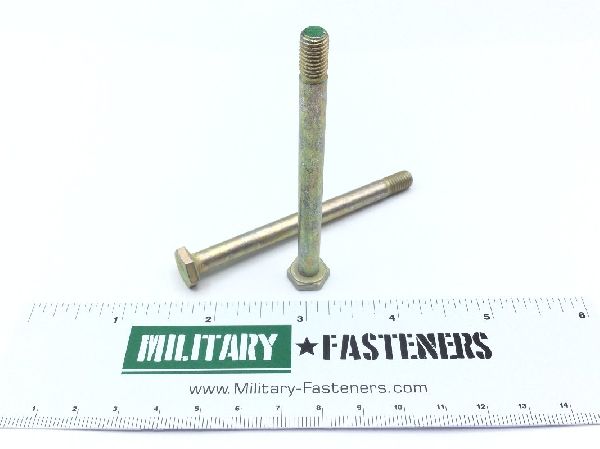

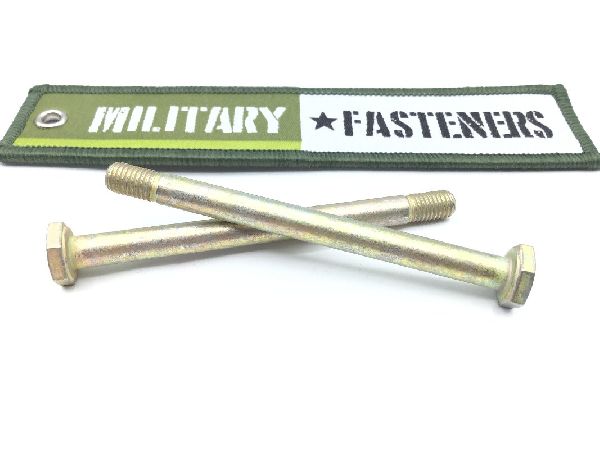

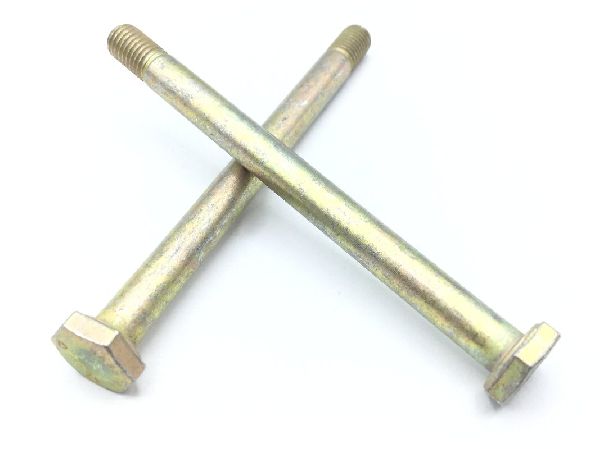

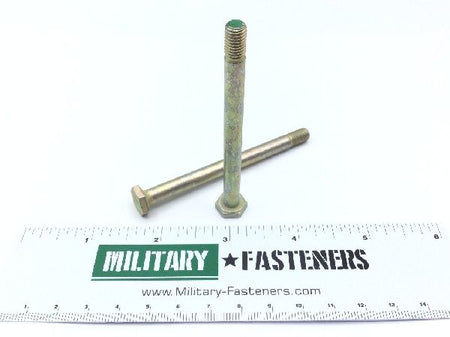

NAS6704-42 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $20.10

Units per Pack 2

Price per Pack $40.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $40.20

Add item to quote

Head Style

Hexagon

Material

Iron alloy 660

Surface Treatment

Class 2 federal specification 1st treatment response type2 qq-p-416

Thread Class

Color: Green threads
Fastener Length: Between 3.035 inches and 3.065 inches
Grip Diameter: Between 0.2490 inches and 0.2495 inches
Grip Length: Between 2.615 inches and 2.635 inches
Head Height: Between 0.125 inches and 0.135 inches
Material Specification: Ams5732 assn standard 1st material response or ams5853 assn standard 2nd material response ams5731
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.425 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.429 inches and 0.439 inches
