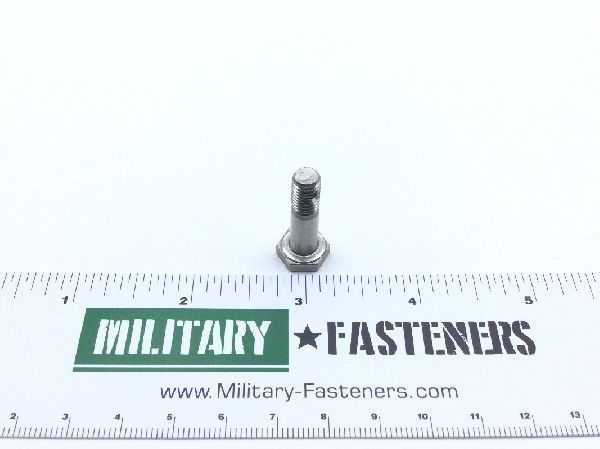

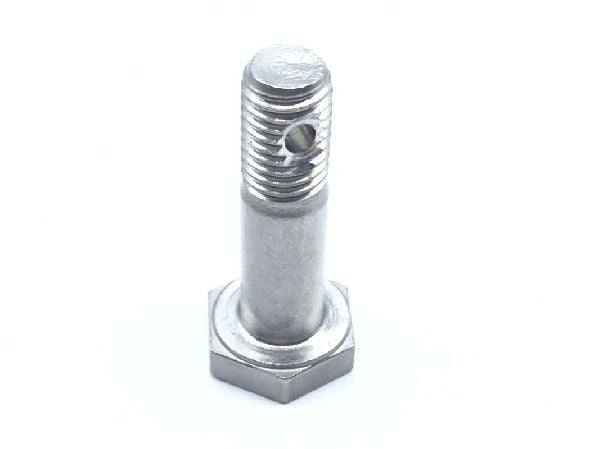

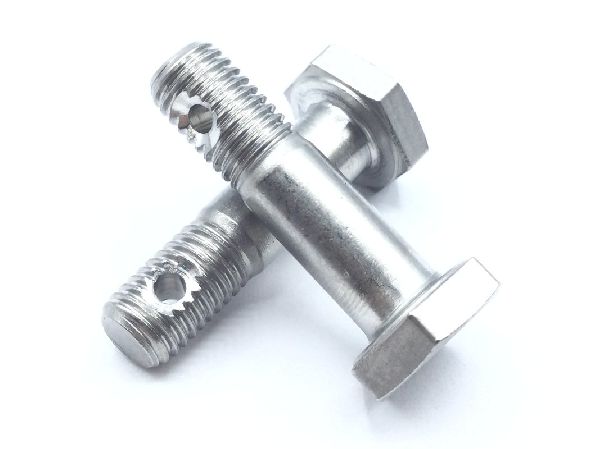

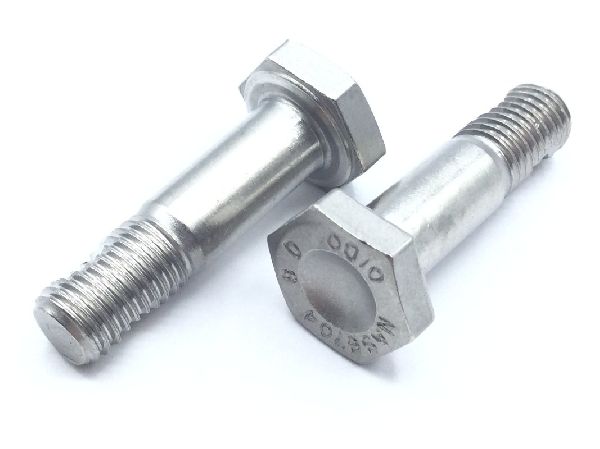

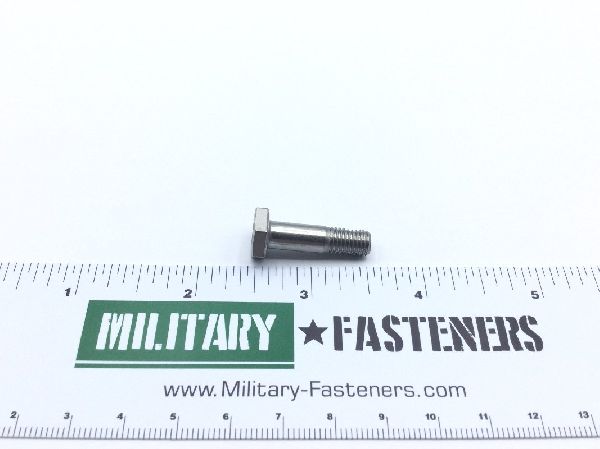

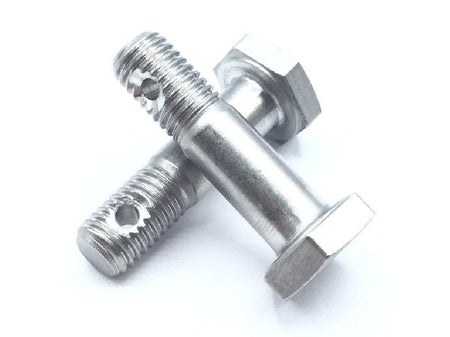

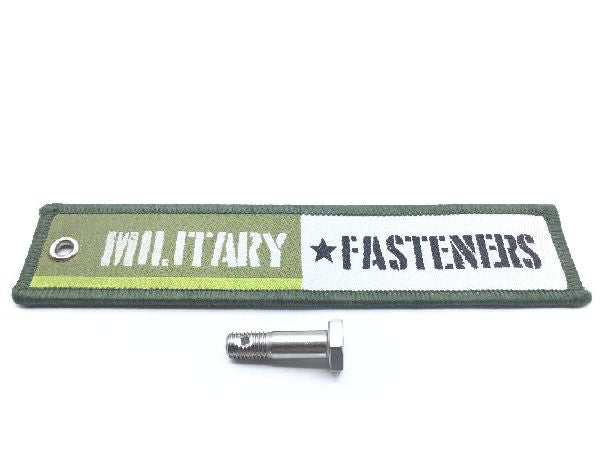

NAS6704DU8 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $14.70

Units per Pack 5

Price per Pack $73.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $73.50

Add item to quote

Head Style

Dished hexagon

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 0.722 inches first hole and 0.772 inches first hole
Fastener Length: Between 0.910 inches and 0.940 inches
Grip Diameter: Between 0.2490 inches and 0.2495 inches
Grip Length: Between 0.490 inches and 0.510 inches
Head Height: Between 0.125 inches and 0.140 inches
Material Specification: Ams5731 assn standard single material response or ams 5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.076 inches first hole and 0.086 inches first hole
Specification Data: 80205-nas6704 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.400 inches and 0.450 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.429 inches and 0.439 inches
