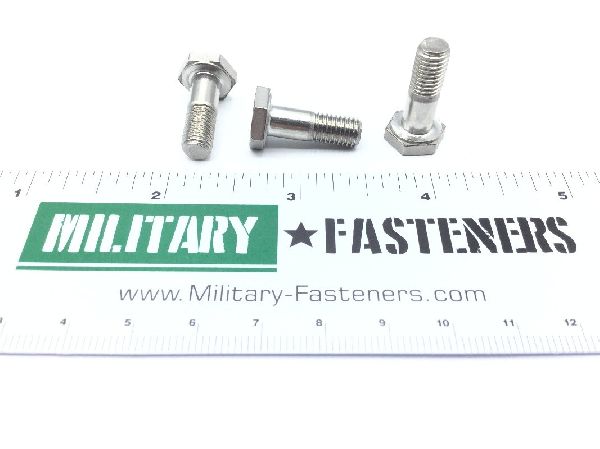

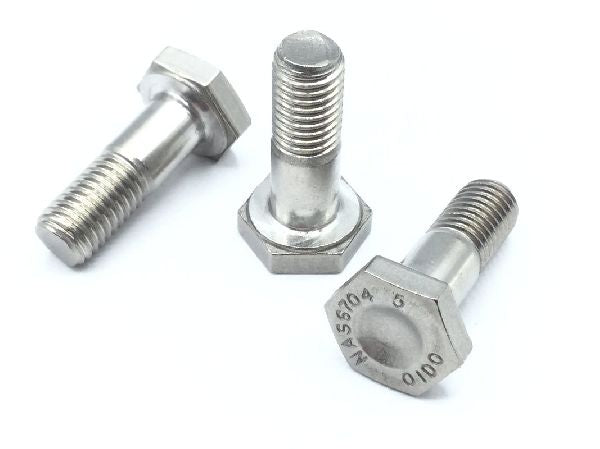

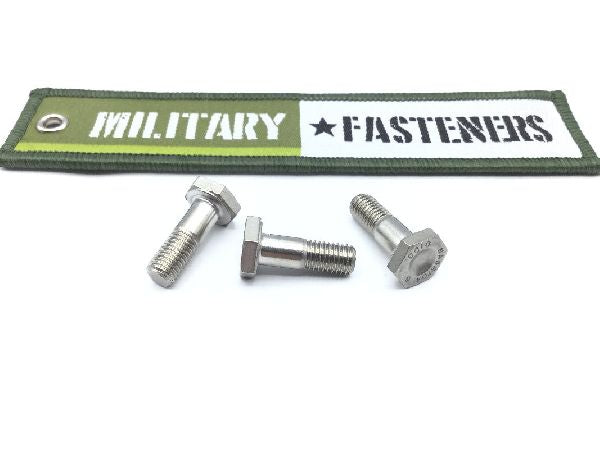

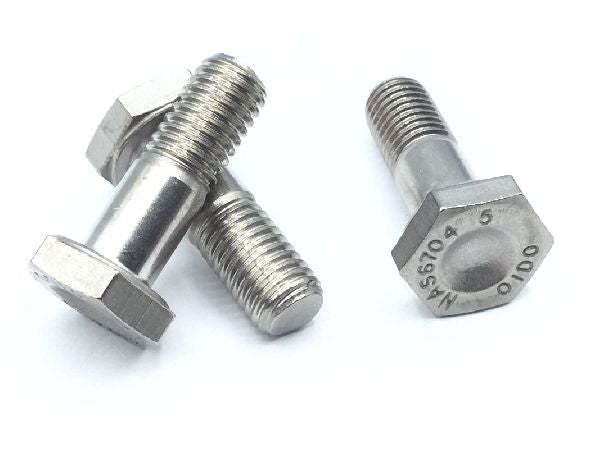

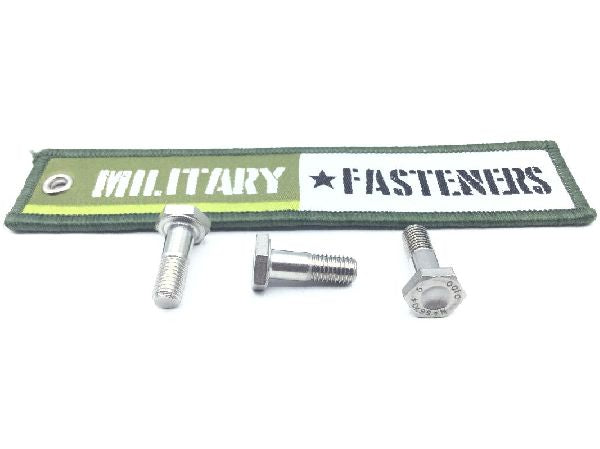

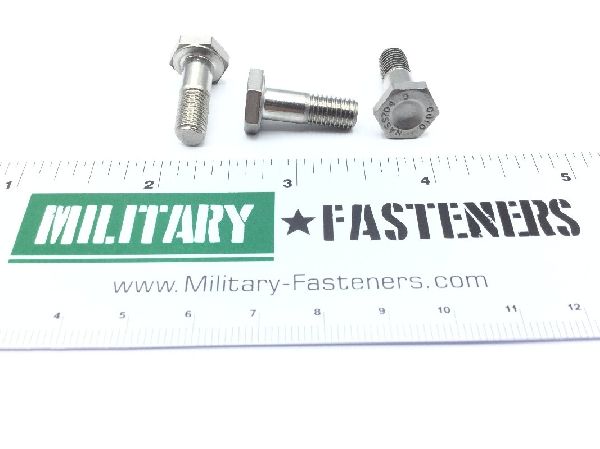

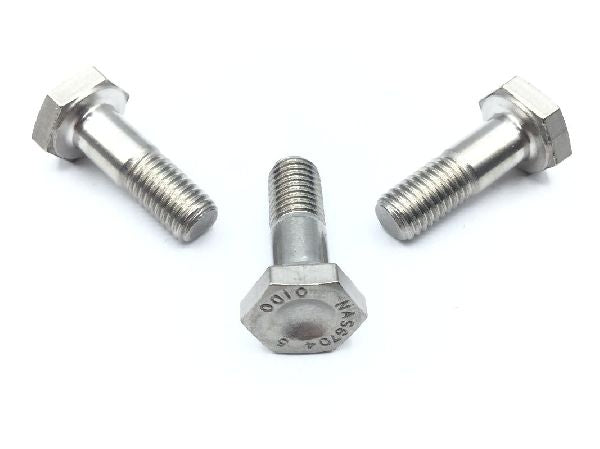

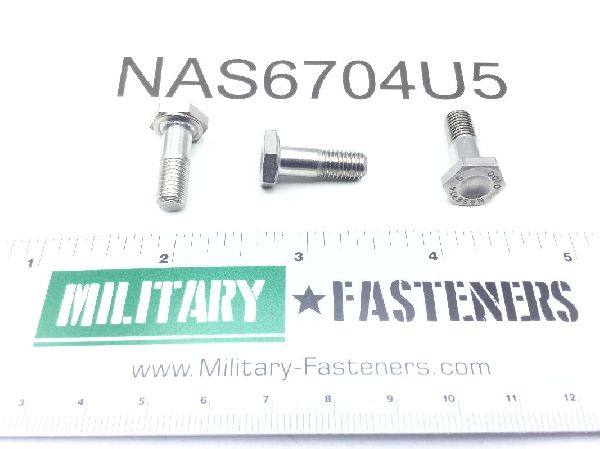

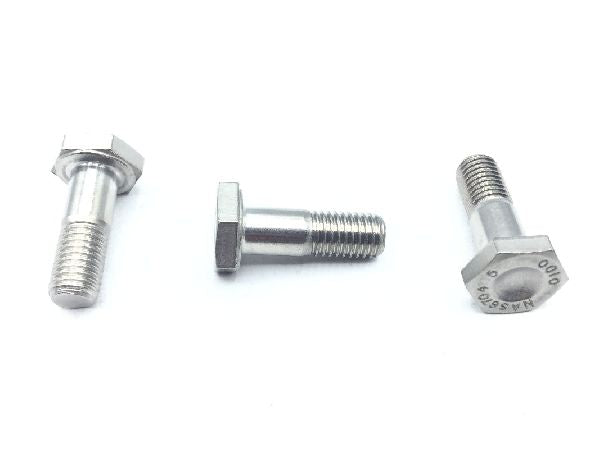

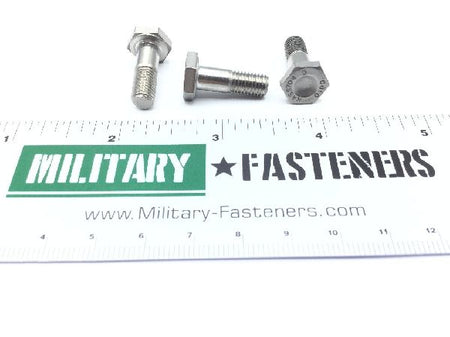

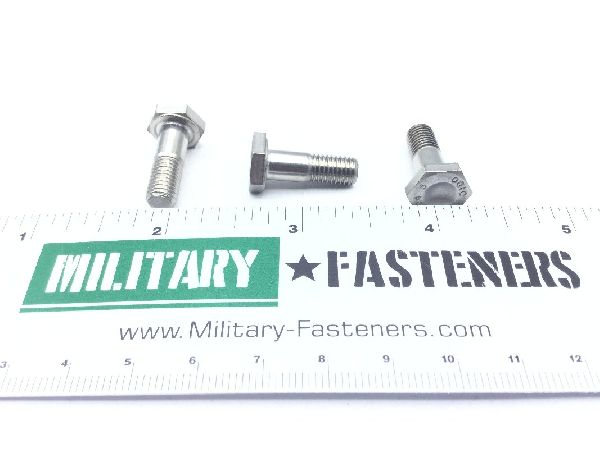

NAS6704U5 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Dished hexagon

Material

Steel

Thread Class

Fastener Length: Between 0.722 inches and 0.725 inches
Grip Diameter: Between 0.2490 inches and 0.2495 inches
Grip Length: Between 0.302 inches and 0.322 inches
Head Height: Between 0.125 inches and 0.140 inches
Material Specification: Ams5731 assn standard single material response or ams 5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6704 professional/industrial association standard
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.400 inches and 0.450 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.430 inches and 0.439 inches
