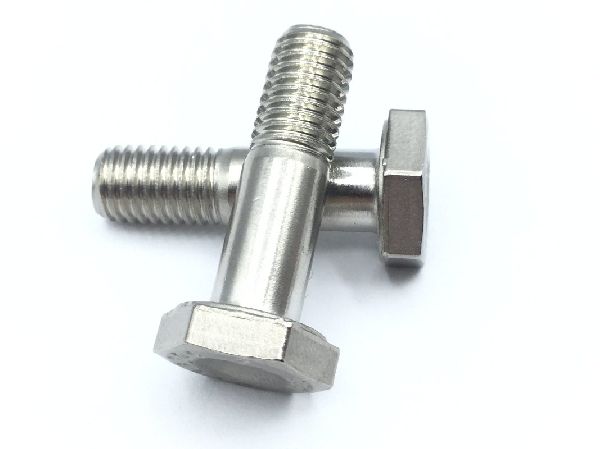

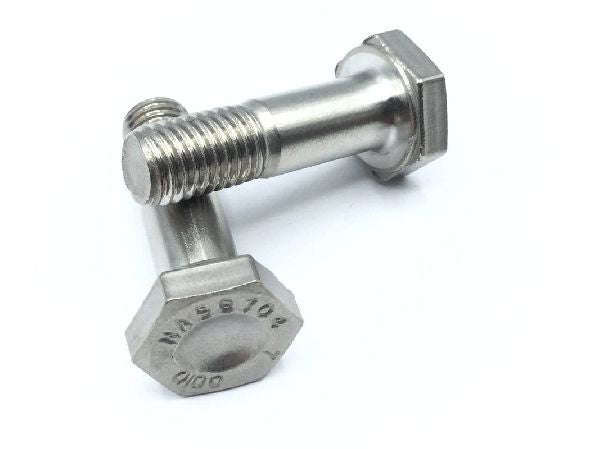

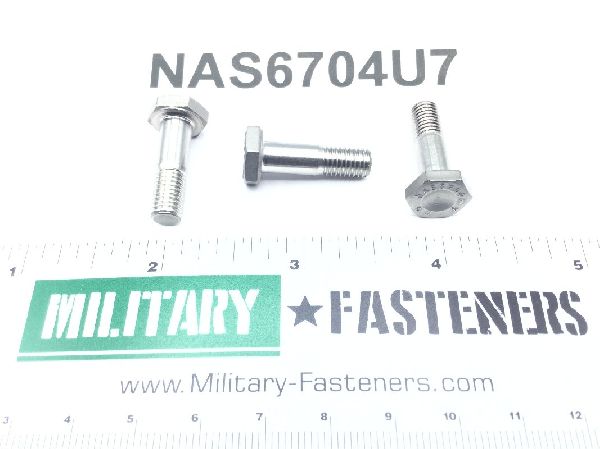

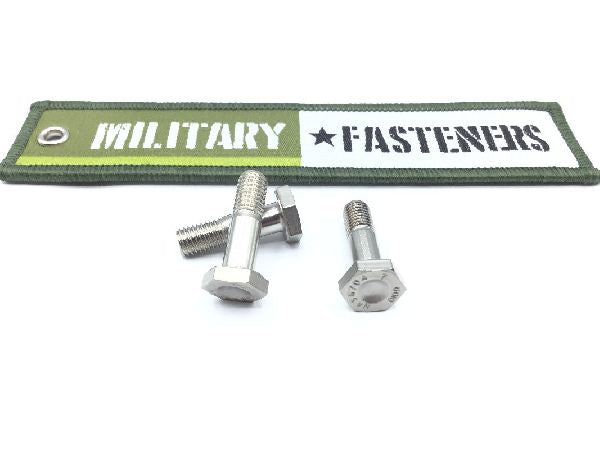

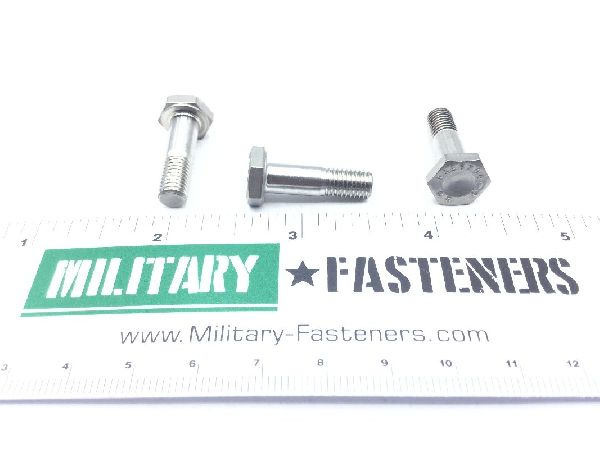

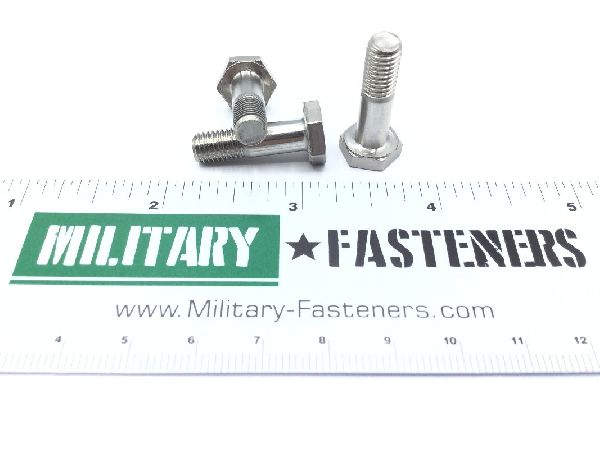

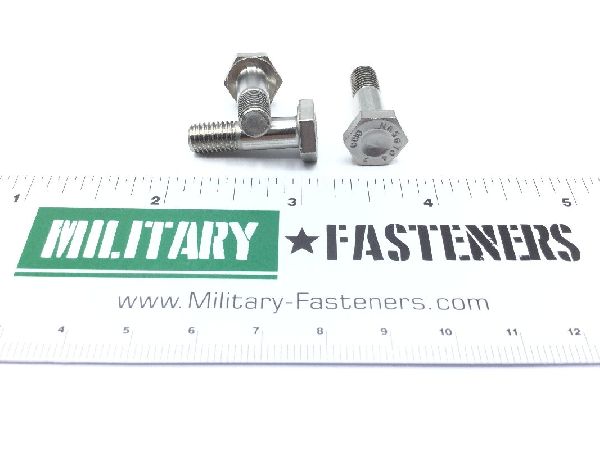

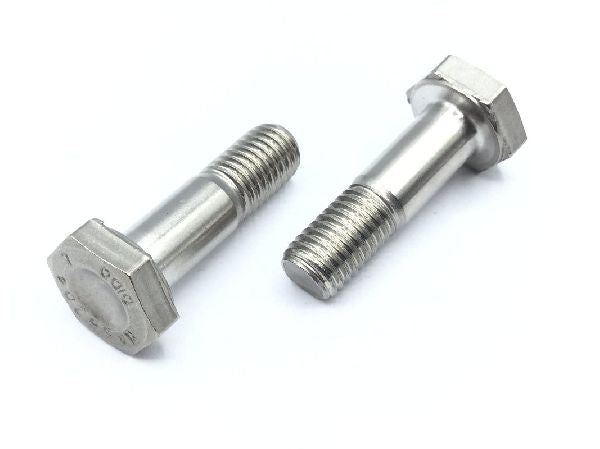

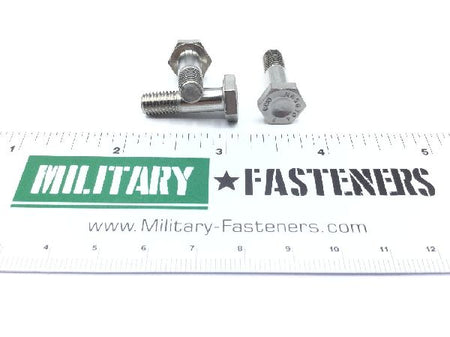

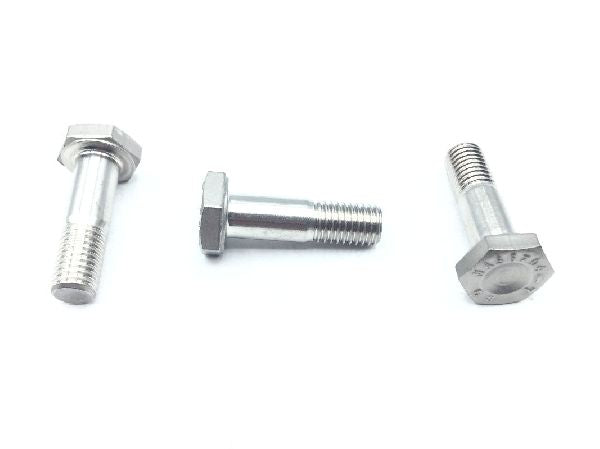

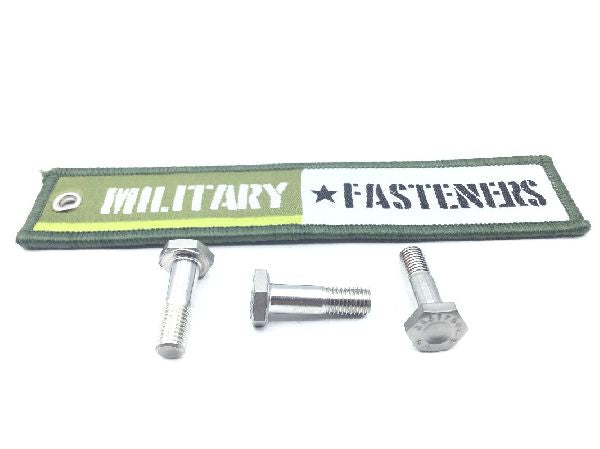

NAS6704U7 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $4.72

Units per Pack 10

Price per Pack $47.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $47.20

Add item to quote

Head Style

Dished hexagon

Material

Steel

Thread Class

Fastener Length: Between 0.848 inches and 0.878 inches
Grip Diameter: Between 0.2490 inches and 0.2495 inches
Grip Length: Between 0.428 inches and 0.448 inches
Head Height: Between 0.125 inches and 0.140 inches
Material Specification: Ams5731 assn standard single material response or ams5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6704 professional/industrial association standard
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.40 inches and 0.45 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.430 inches and 0.439 inches
