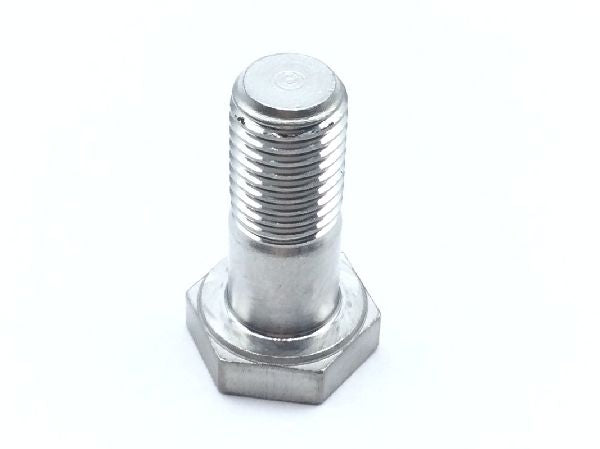

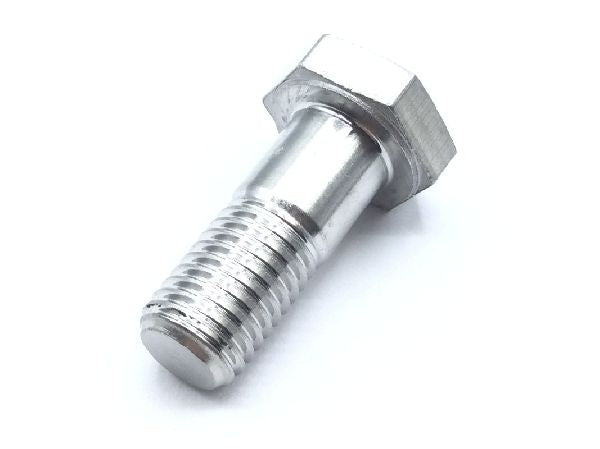

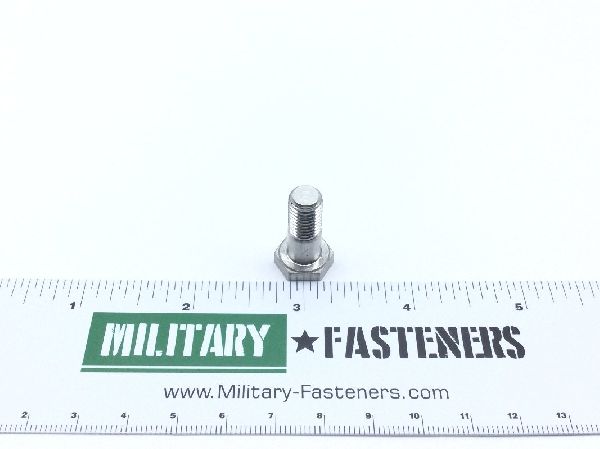

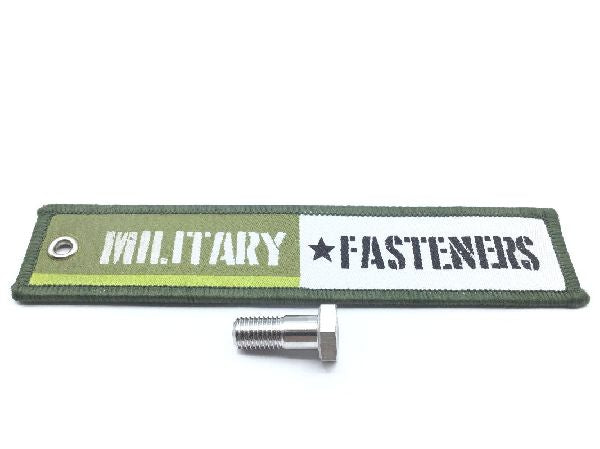

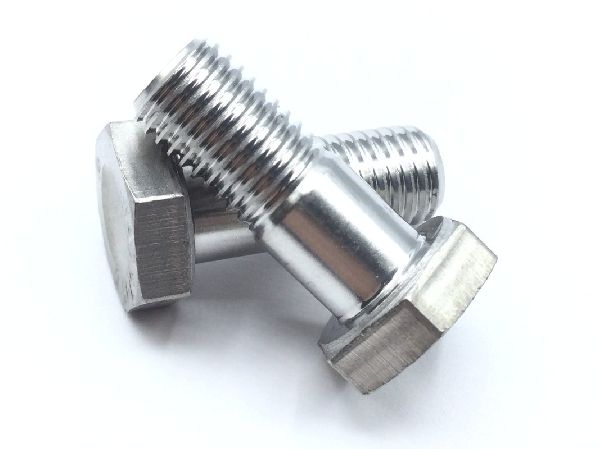

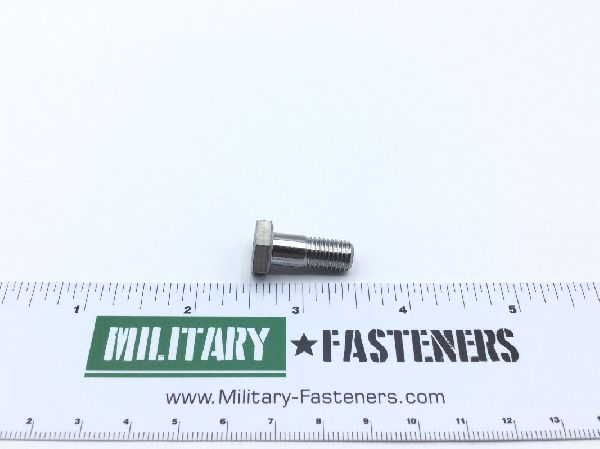

NAS6705U5 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Dished hexagon

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.766 inches and 0.796 inches
Grip Diameter: Between 0.3115 inches and 0.3120 inches
Grip Length: Between 0.302 inches and 0.322 inches
Head Height: Between 0.156 inches and 0.171 inches
Material Specification: Ams 5731 assn standard single material response or ams 5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6705 professional/industrial association standard
Surface Finish: 32.0 microinches bearing surface of head32.0 microinches grip32.0 microinches threads
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: 0.469 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.492 inches and 0.502 inches
