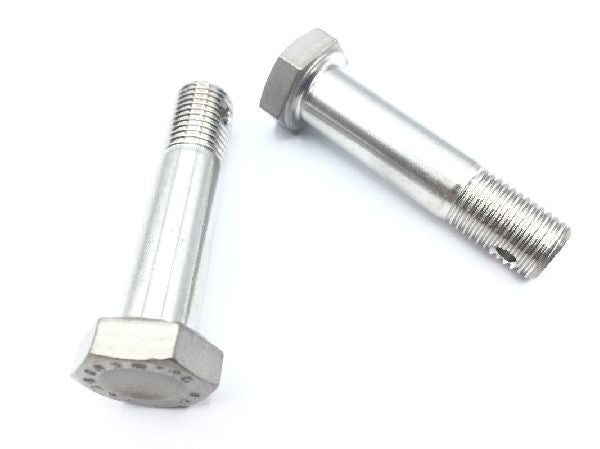

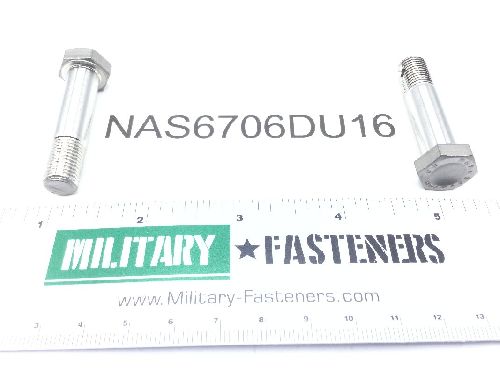

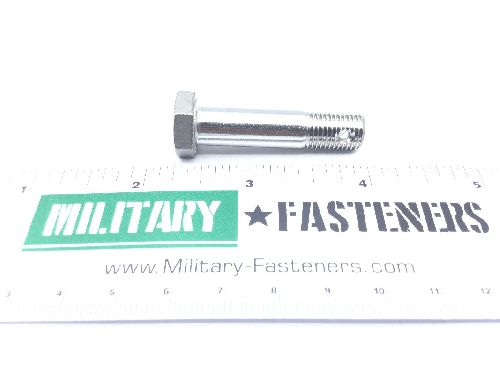

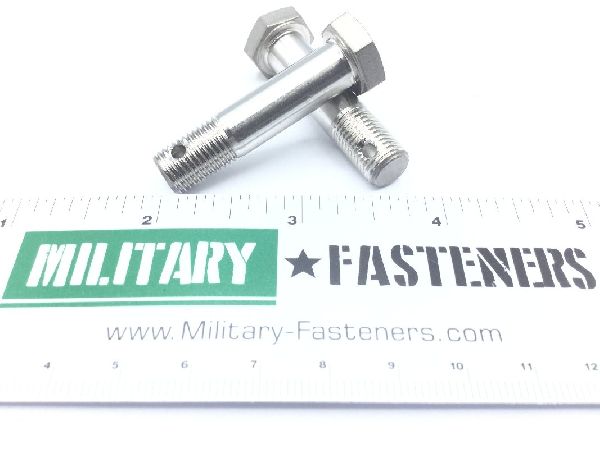

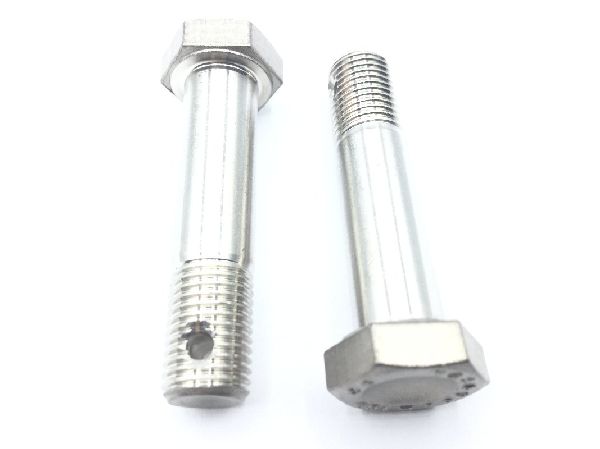

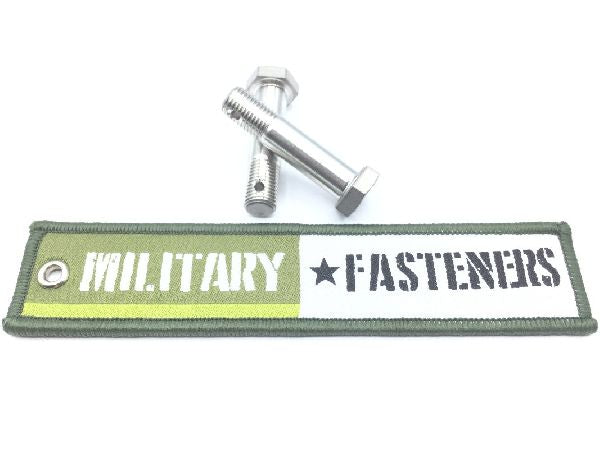

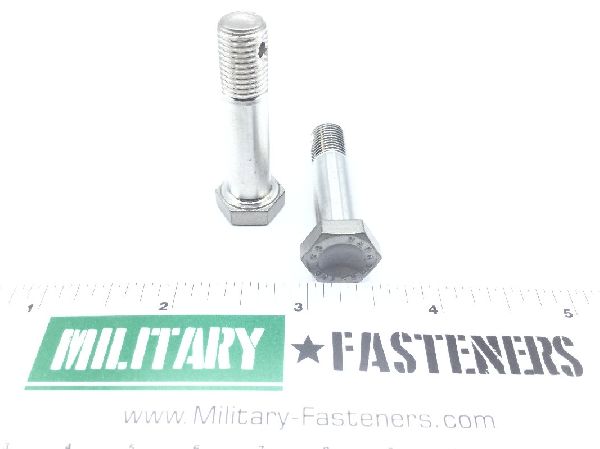

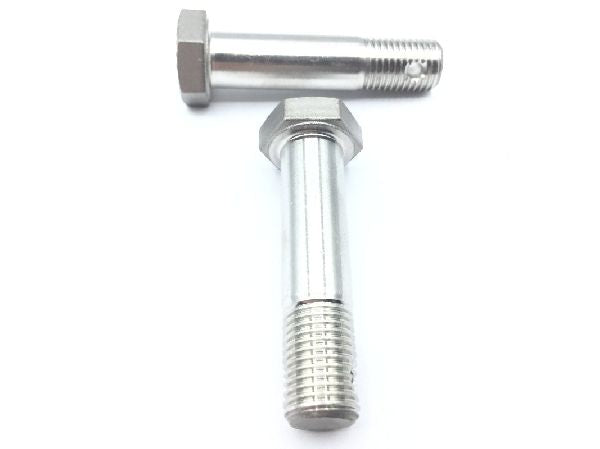

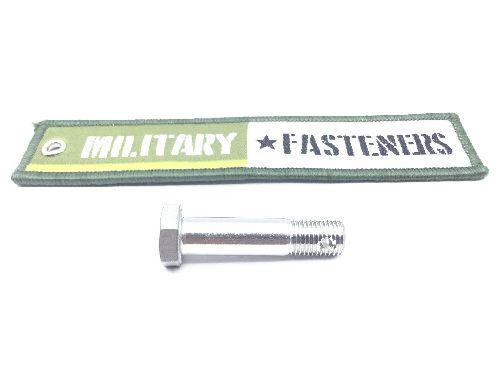

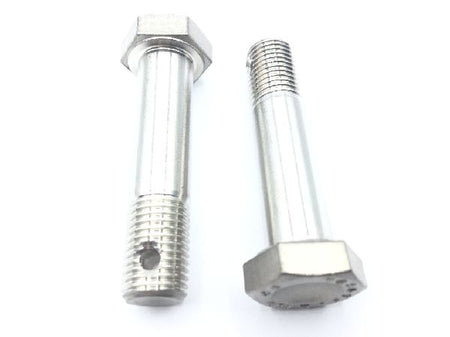

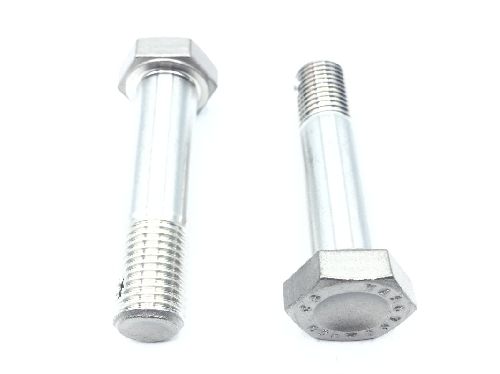

NAS6706DU16 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $21.48

Units per Pack 2

Price per Pack $42.96

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $42.96

Add item to quote

Head Style

Dished hexagon

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 1.356 inches first hole and 1.406 inches first hole
Fastener Length: Between 1.563 inches and 1.593 inches
Grip Diameter: Between 0.3740 inches and 0.3745 inches
Grip Length: Between 0.990 inches and 1.010 inches
Head Height: Between 0.188 inches and 0.203 inches
Material Specification: Ams 5731 assn standard single material response or ams 5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.106 inches first hole and 0.116 inches first hole
Specification Data: 80205-nas6706 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.553 inches and 0.603 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.554 inches and 0.564 inches
