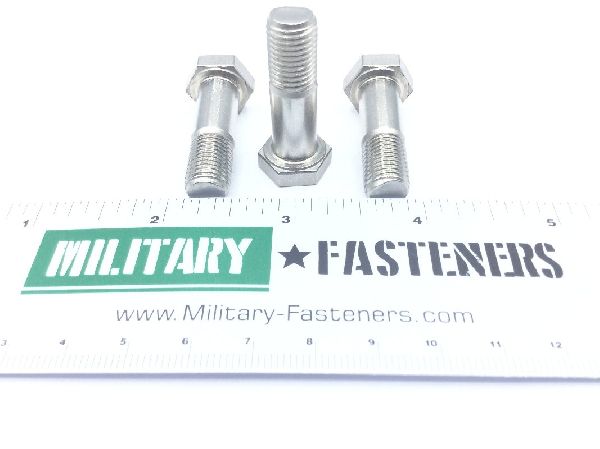

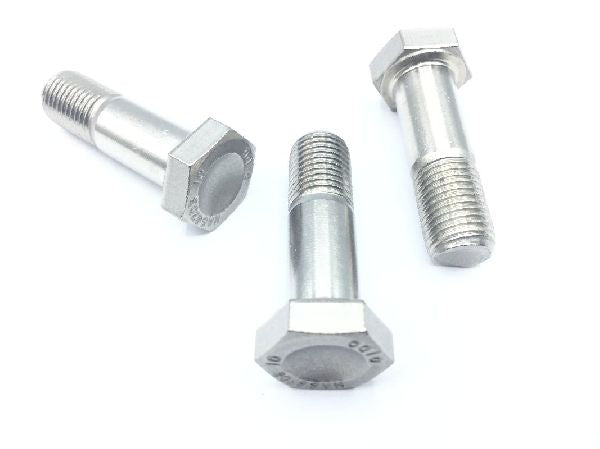

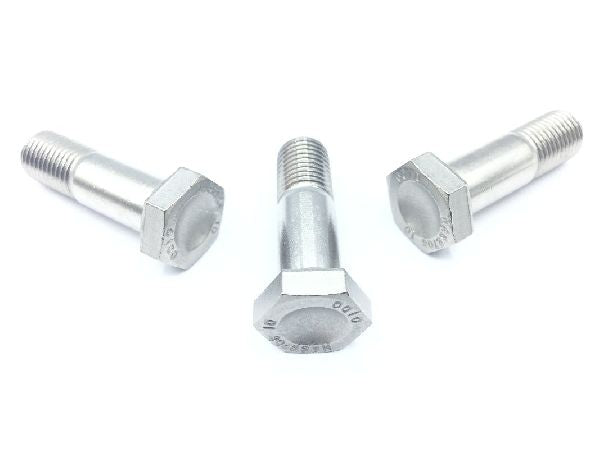

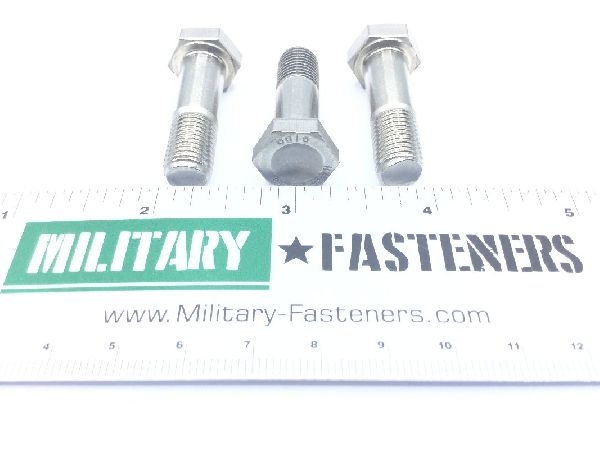

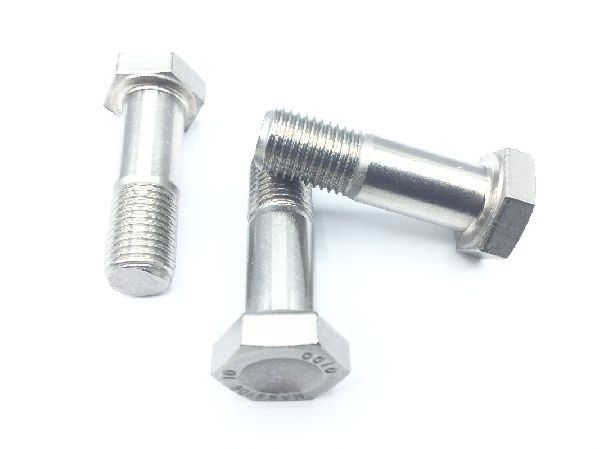

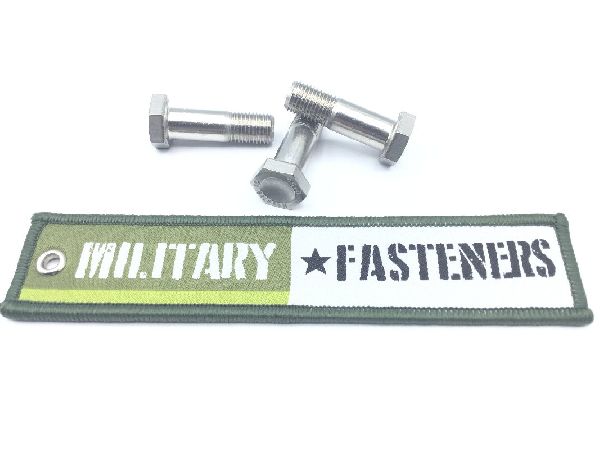

NAS6706U10 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $10.97

Units per Pack 5

Price per Pack $54.85

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $54.85

Add item to quote

Head Style

Hexagon

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 1.188 inches and 1.218 inches
Grip Diameter: Between 0.3740 inches and 0.3745 inches
Grip Length: Between 0.615 inches and 0.635 inches
Head Height: Between 0.178 inches and 0.198 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Part Name Assigned By Controlling Agency: non-locking long threads a286 cres close tolerance hex head blot
Special Features: hex head requested namebolt
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.578 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.554 inches and 0.564 inches
