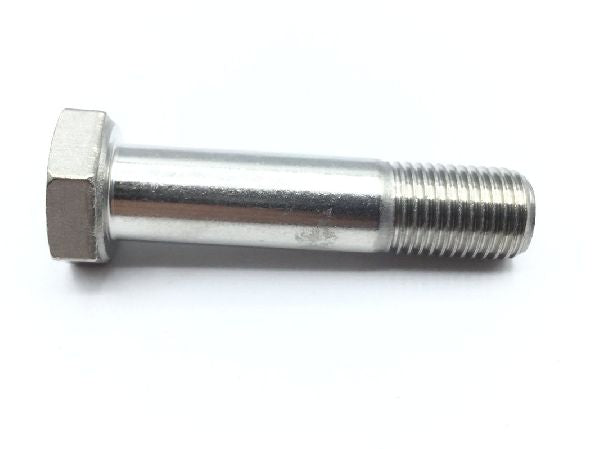

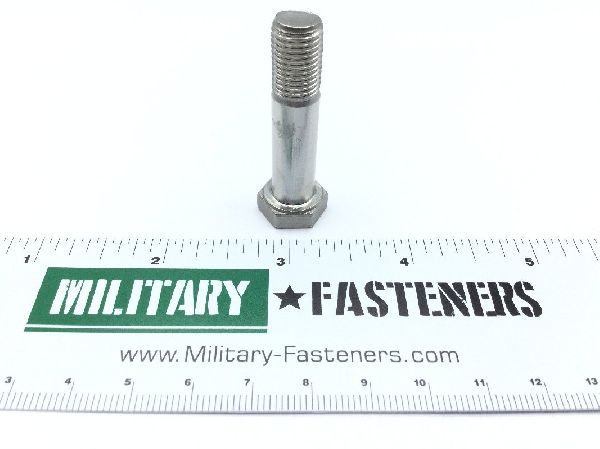

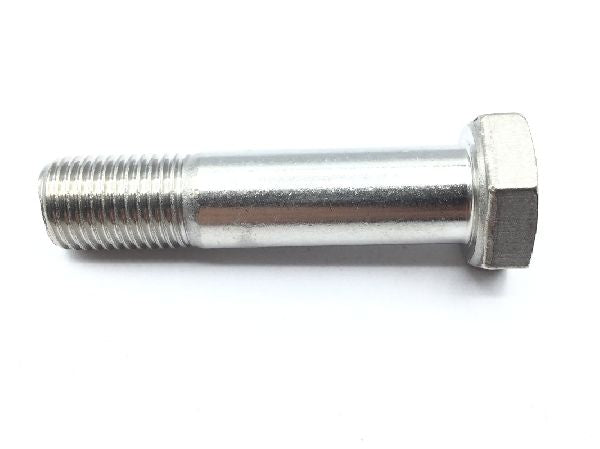

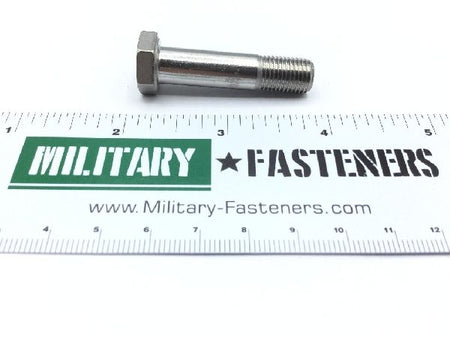

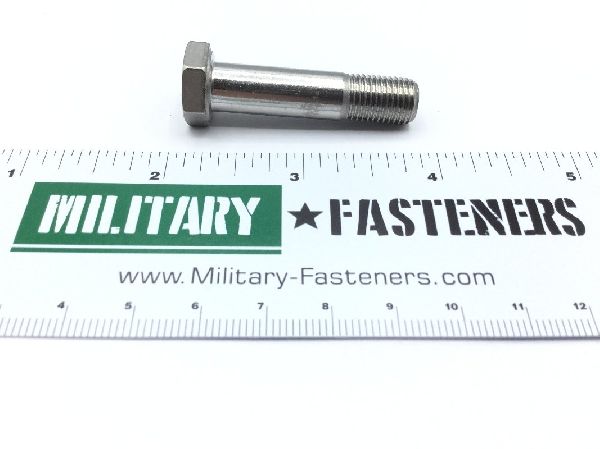

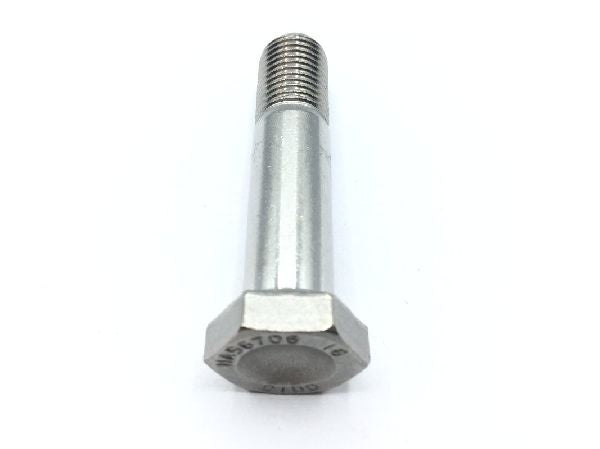

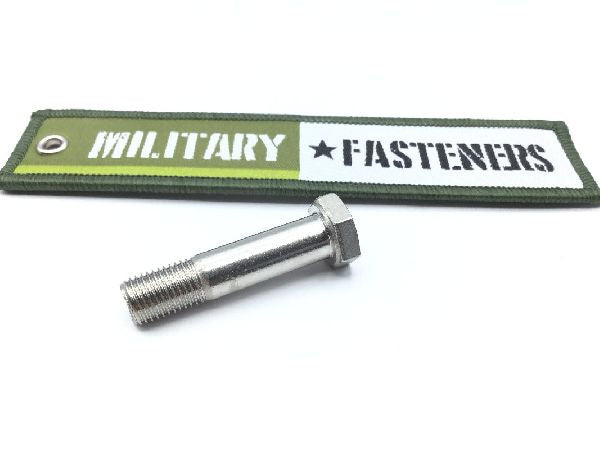

NAS6706U16 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Dished hexagon

Material

Iron alloy 660

Thread Class

Fastener Length: Between 1.563 inches and 1.583 inches
Grip Diameter: Between 0.3740 inches and 0.3745 inches
Grip Length: Between 0.990 inches and 1.010 inches
Head Height: Between 0.188 inches and 0.203 inches
Material Specification: Ams5731 assn standard single material response or ams5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6706 professional/industrial association standard
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.578 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.554 inches and 0.564 inches
